HED 4 Channel 800W Class-D Digital Amplifier
SKU:H800.4D
Couldn't load pickup availability
Overview
H800.4D- 4 Channel Full Range Class-D Digital Amplifier
Description:
Cerwin Vega HED series amplifiers are known for their advanced technology to deliver high performance. The use of aluminum in the construction of the amplifier chassis helps in heat dissipation and reduces weight, contributing to both efficiency and durability. These amplifiers are designed to produce a significant amount of power, making them suitable for demanding audio setups. HED series amplifiers are built with cutting-edge technology to ensure reliability and long-lasting performance. This includes high-quality components and meticulous engineering. HED series amplifiers utilize Class D amplifier technology, which is known for its high efficiency and ability to produce lots of power without generating excessive heat.
Specifications
4 Channel Full Range Digital Amplifier
125W x 4CH @ 4Ω RMS Power Output
200W x 4CH @ 2Ω RMS Power Output
400W x 2CH @ 4Ω Bridged RMS Power Output
Input Sensitivity: 0.2-10 Volt
Selectable X-Over: LPF / FULL / HPF
Frequency Response: 10-33KHz
Signal to Noise Ratio: > 90dB
Overall Operation Efficiency: >84%
Selectable REM / VOX / DC Turn On Modes
Selectable 2CH / 4CH Input Modes
Multi-Turn On Modes: REM/DC/VOX
Switchable 2CH & 4CH Input Configuration
Working Status Indicators: Power/Protection
Gain Input Sensitivity Clipping Indicators
Full Range IR Chipset Digital Circuit Design
Direct-FET Power Mosfet Output Stage
SMD Technology on 4 Layers FR4 PC Board
Dimensions: 9.0” x 6.3” x 1.9” (229.5 x 160 x 48.3mm)
Product Manuals

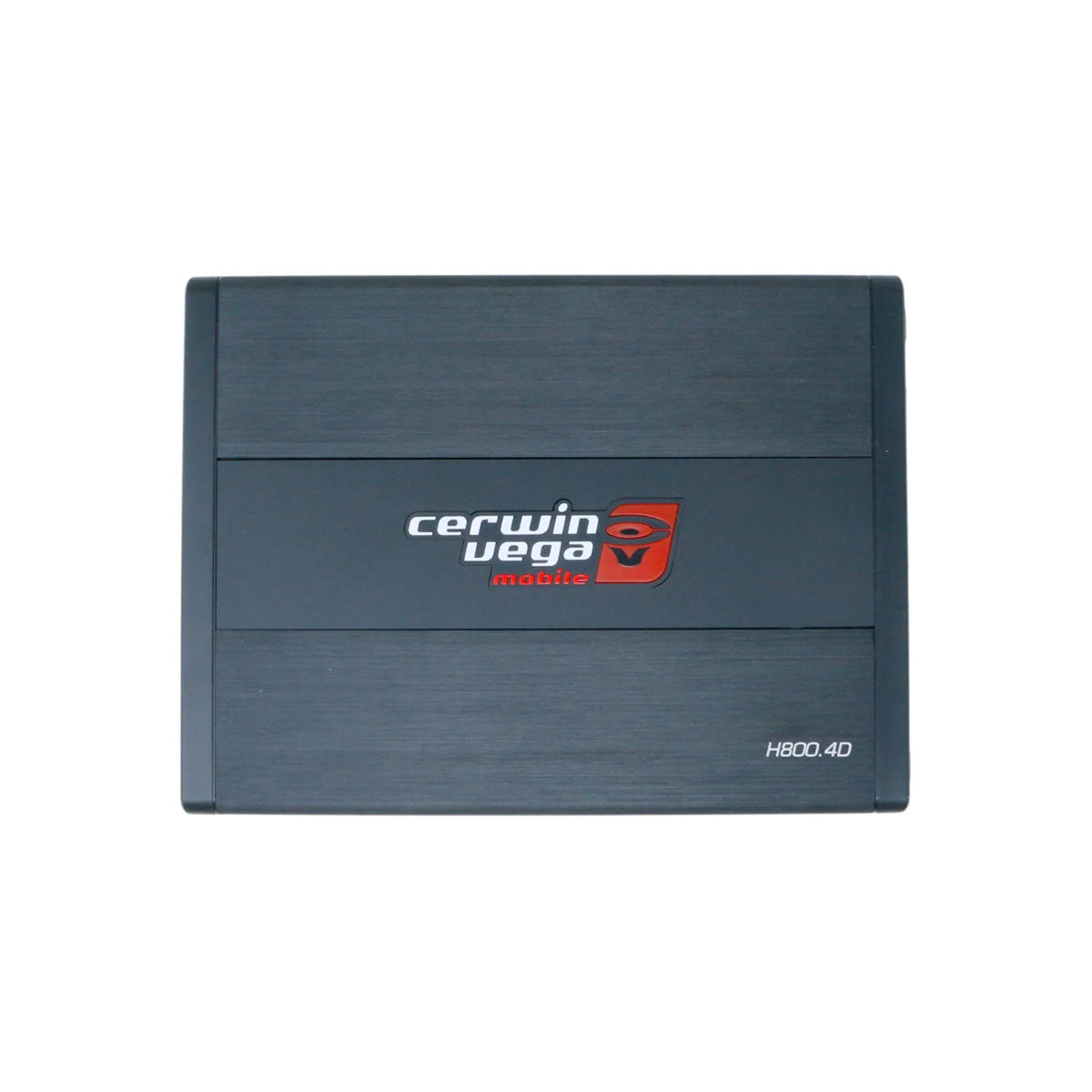

![HED 4 Channel Digital Amplifier](http://cerwinvega.com/cdn/shop/files/1_24.jpg?v=1715238670&width=1445)
![Front Side of 4 Channel Amplifier](http://cerwinvega.com/cdn/shop/files/2_24.jpg?v=1715238670&width=1445)

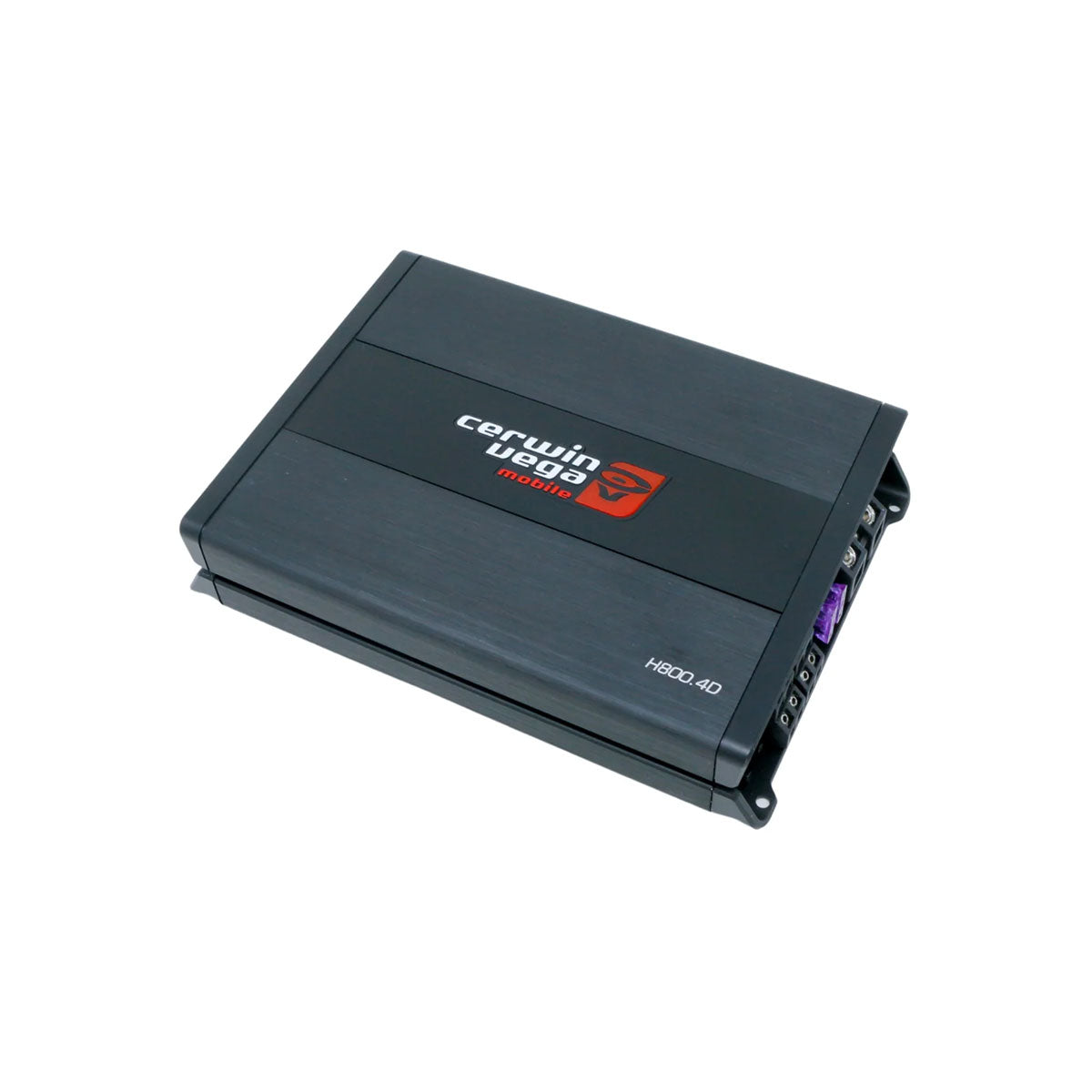

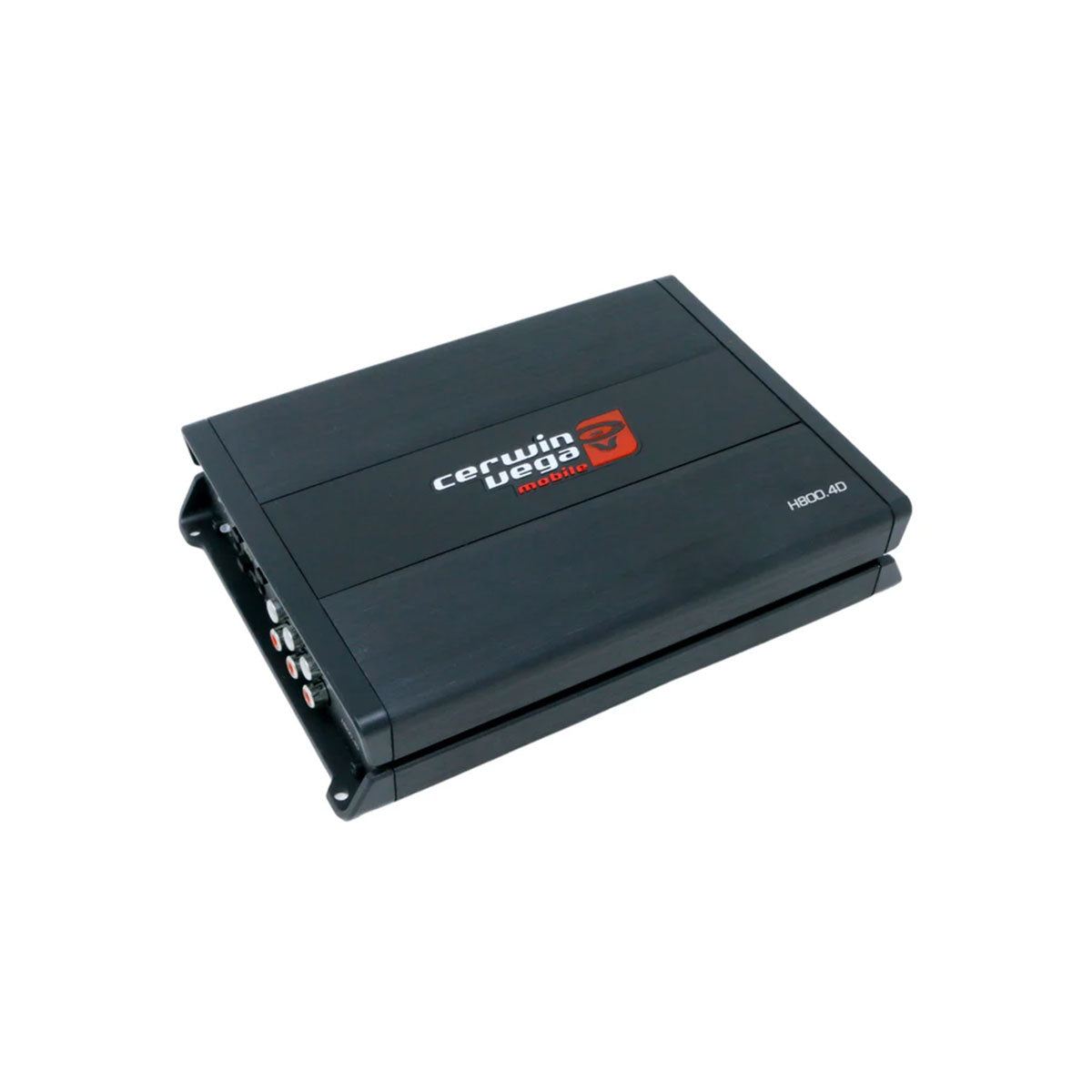

![A rectangular, black Cerwin Vega mobile amplifier labeled "HED 800W RMS Full Range Class-D 4 Channel Digital Amplifier" is pictured. This 4 Channel Full Range Digital Amplifier from the Cerwin Vega HED series features a matte finish with vented sides. The red and white Cerwin Vega logo is centered on top, with various connection ports, terminals, and a fuse holder visible on one side.](http://cerwinvega.com/cdn/shop/files/3_12.jpg?v=1715238670&width=1445)

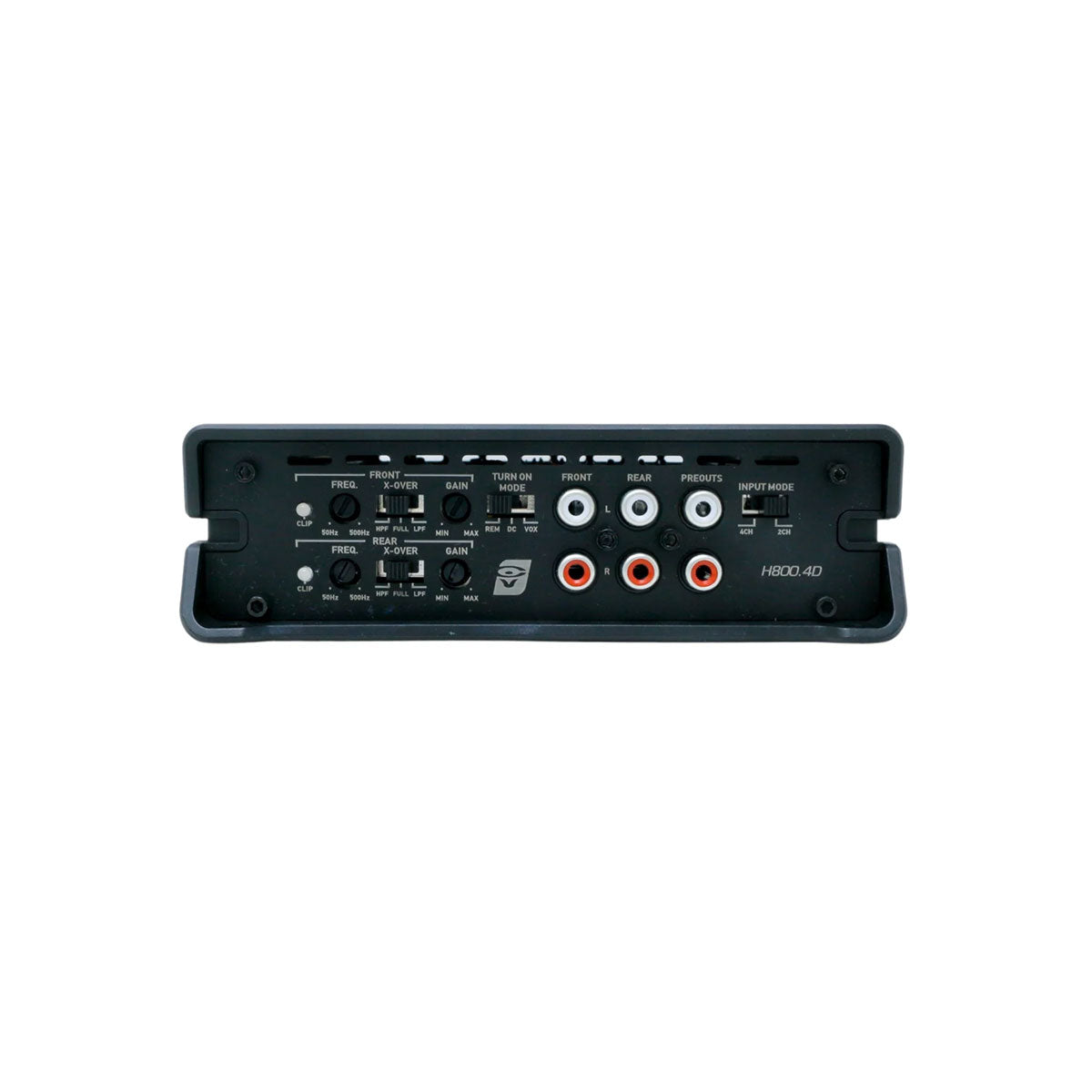

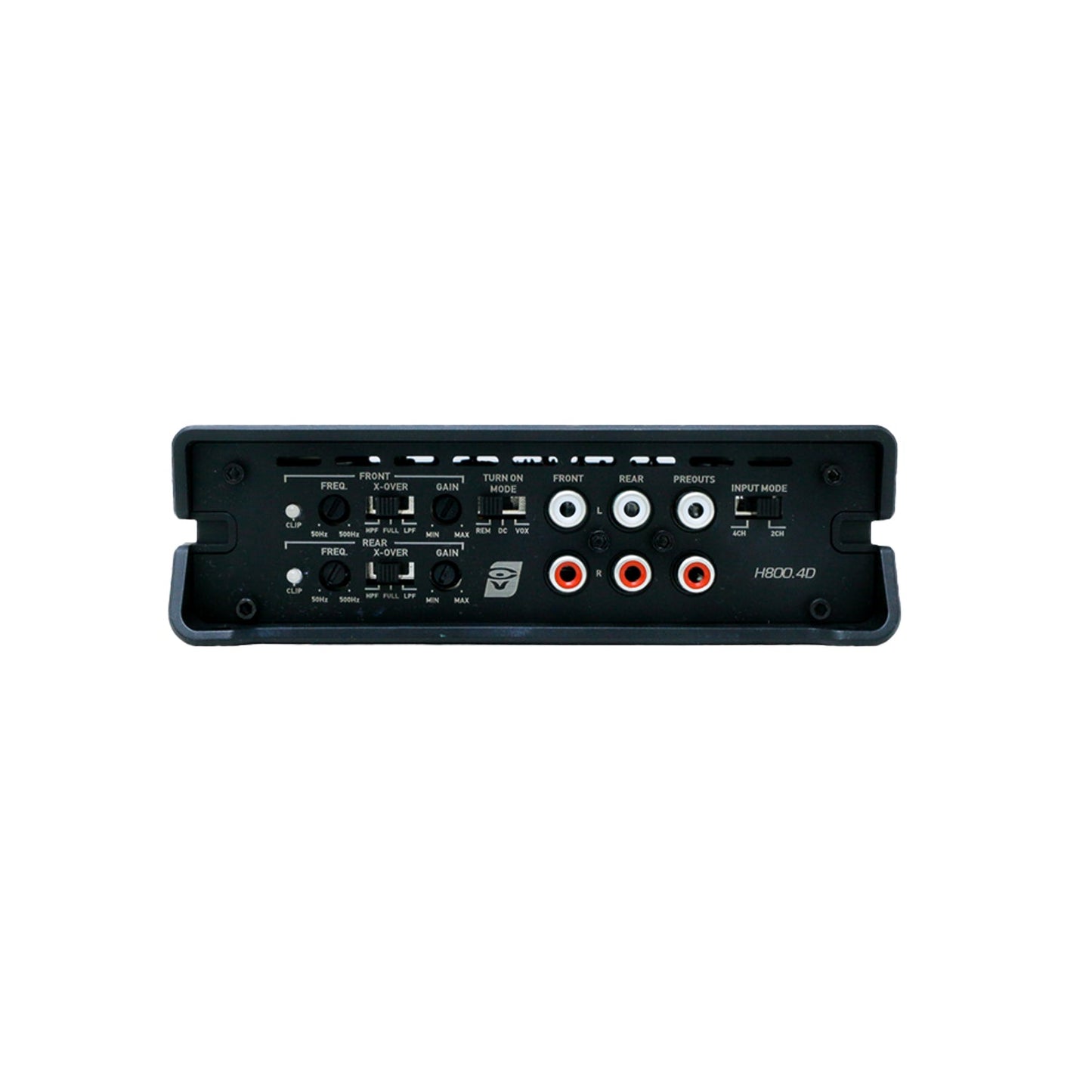

![A close-up view of the back panel of a Cerwin Vega HED 800W RMS Full Range Class-D 4 Channel Digital Amplifier labeled "H800.4D". The 4 Channel Full Range Digital Amplifier features multiple input and output jacks, control knobs, and switches for adjusting pre-frequencies, crossover, gain, and mode settings. Various connectors, including RCA inputs and outputs, are also visible.](http://cerwinvega.com/cdn/shop/files/4_9.jpg?v=1715238670&width=1445)

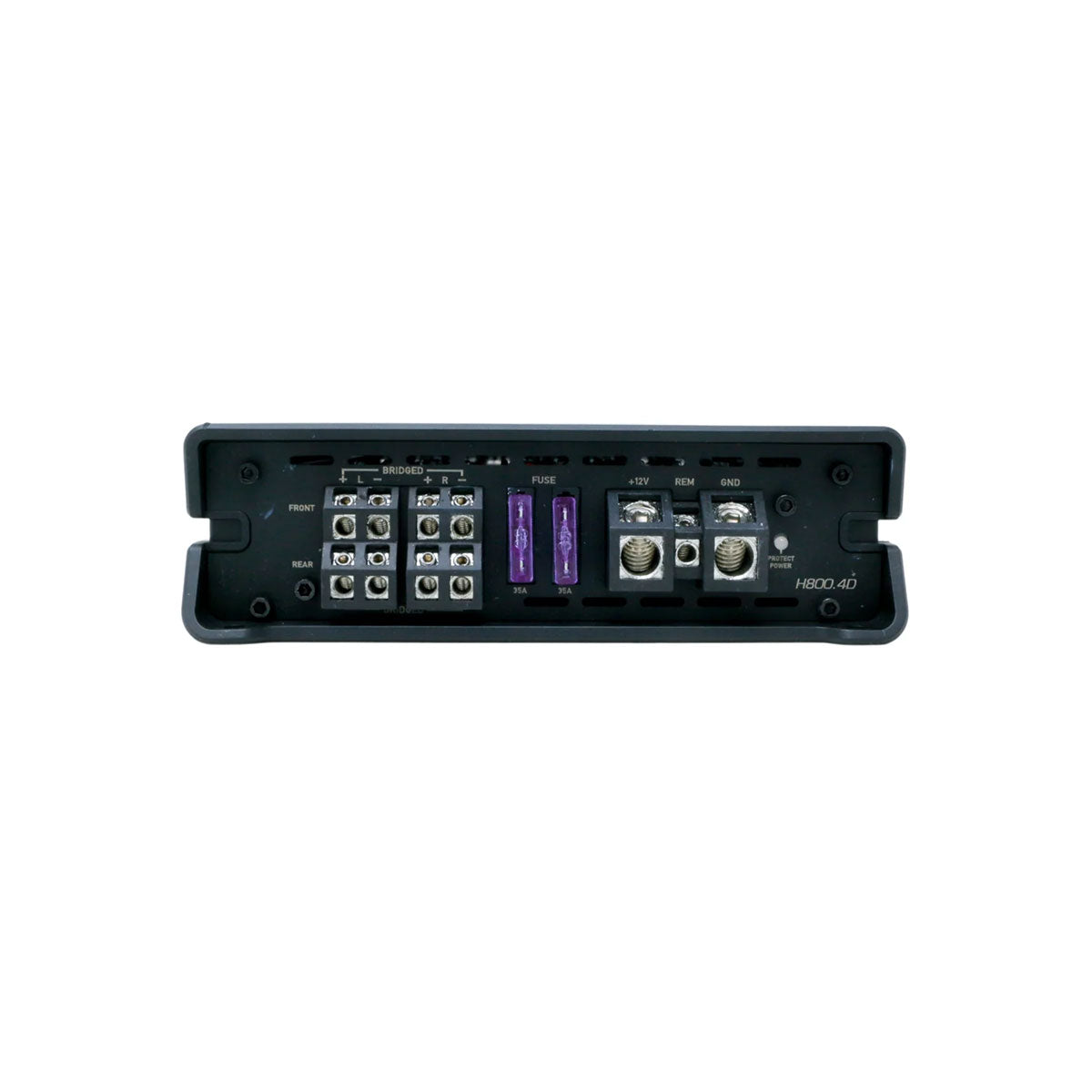

![Close-up of the back of a Cerwin Vega HED 800W RMS Full Range Class-D 4 Channel Digital Amplifier. From left to right, the connection ports are labeled: FRONT, BRIDGED, REAR, each with multiple input terminals. In the center are two replaceable fuses rated at 35A. To the right are ports for +12V,..](http://cerwinvega.com/cdn/shop/files/5_8.jpg?v=1715238670&width=1445)
