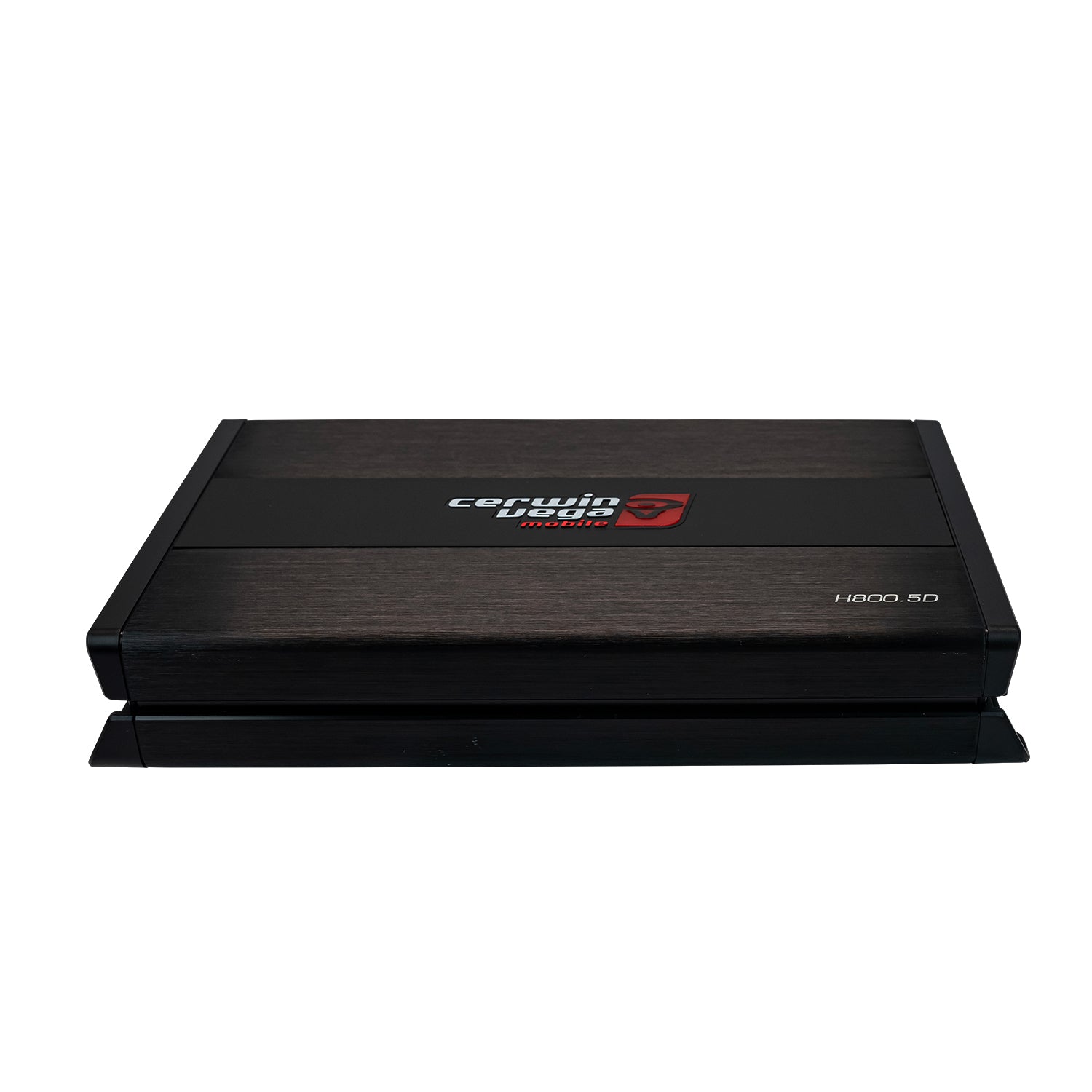

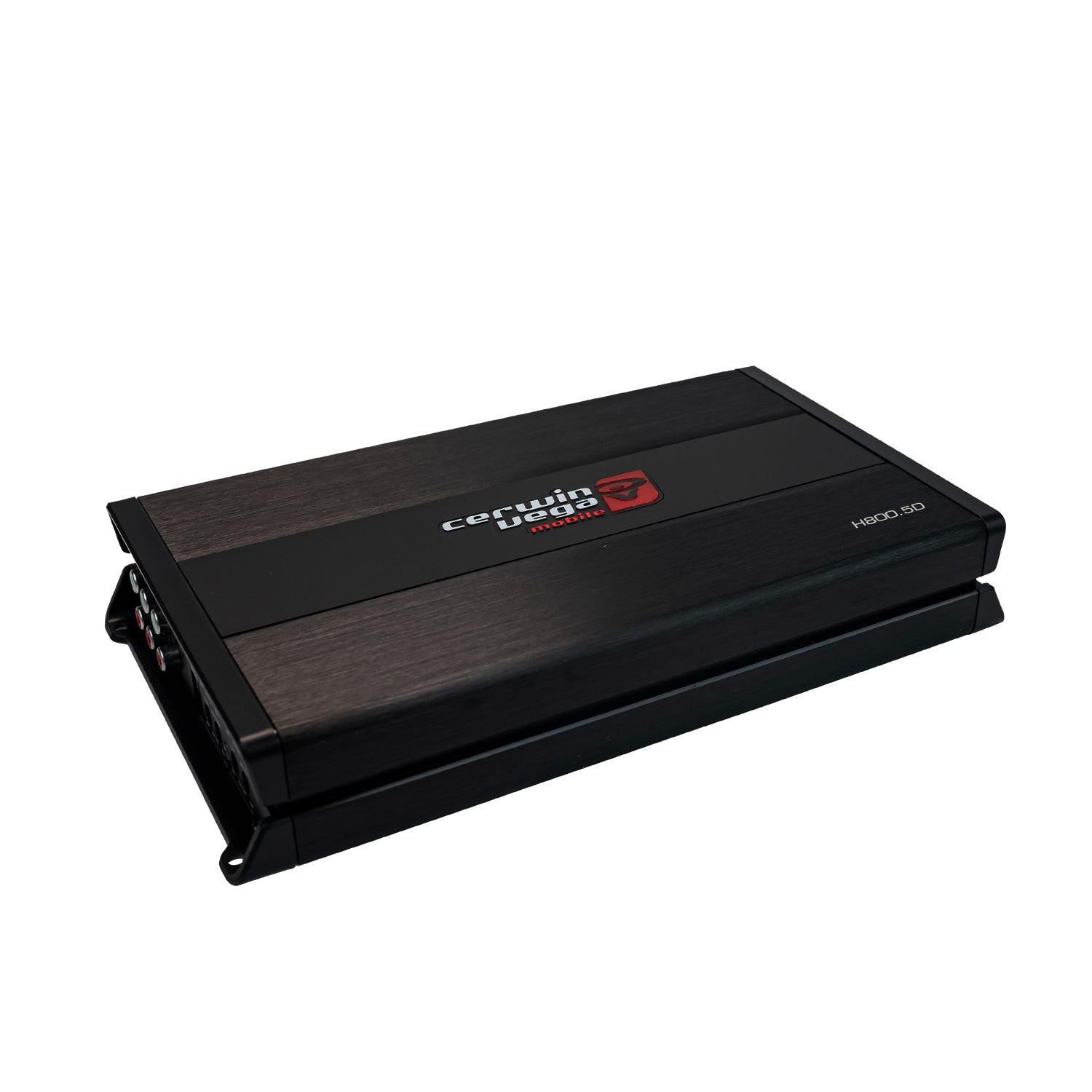

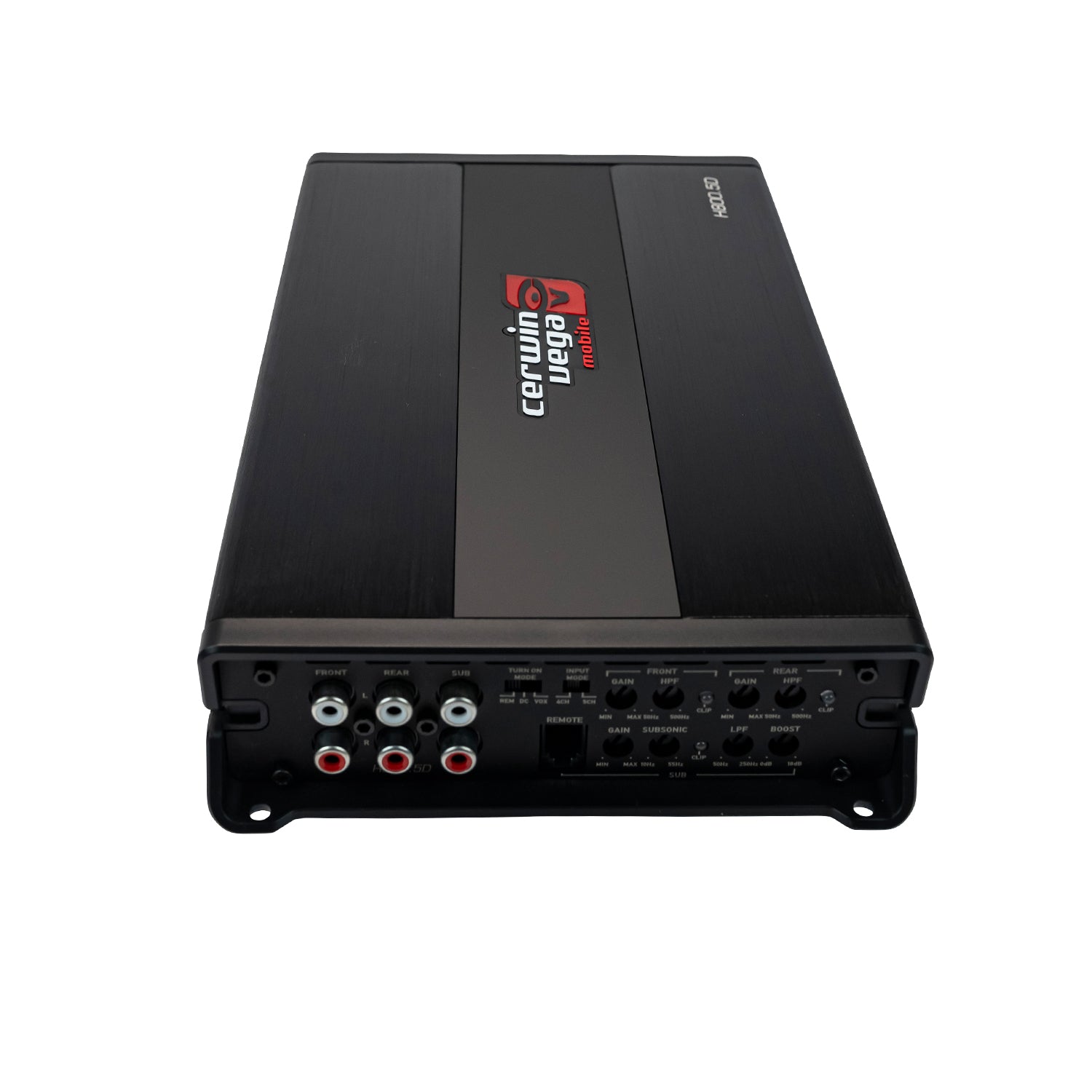

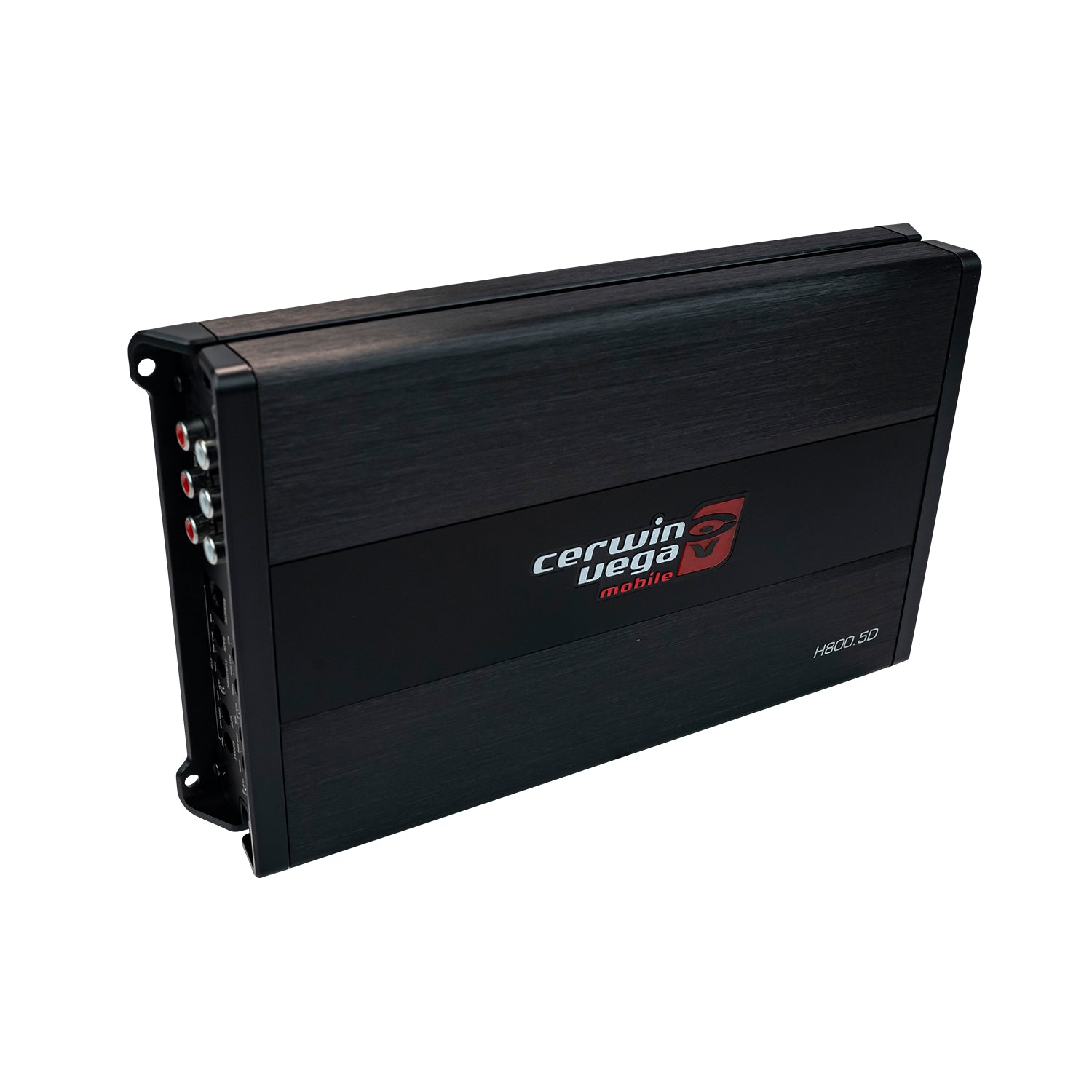

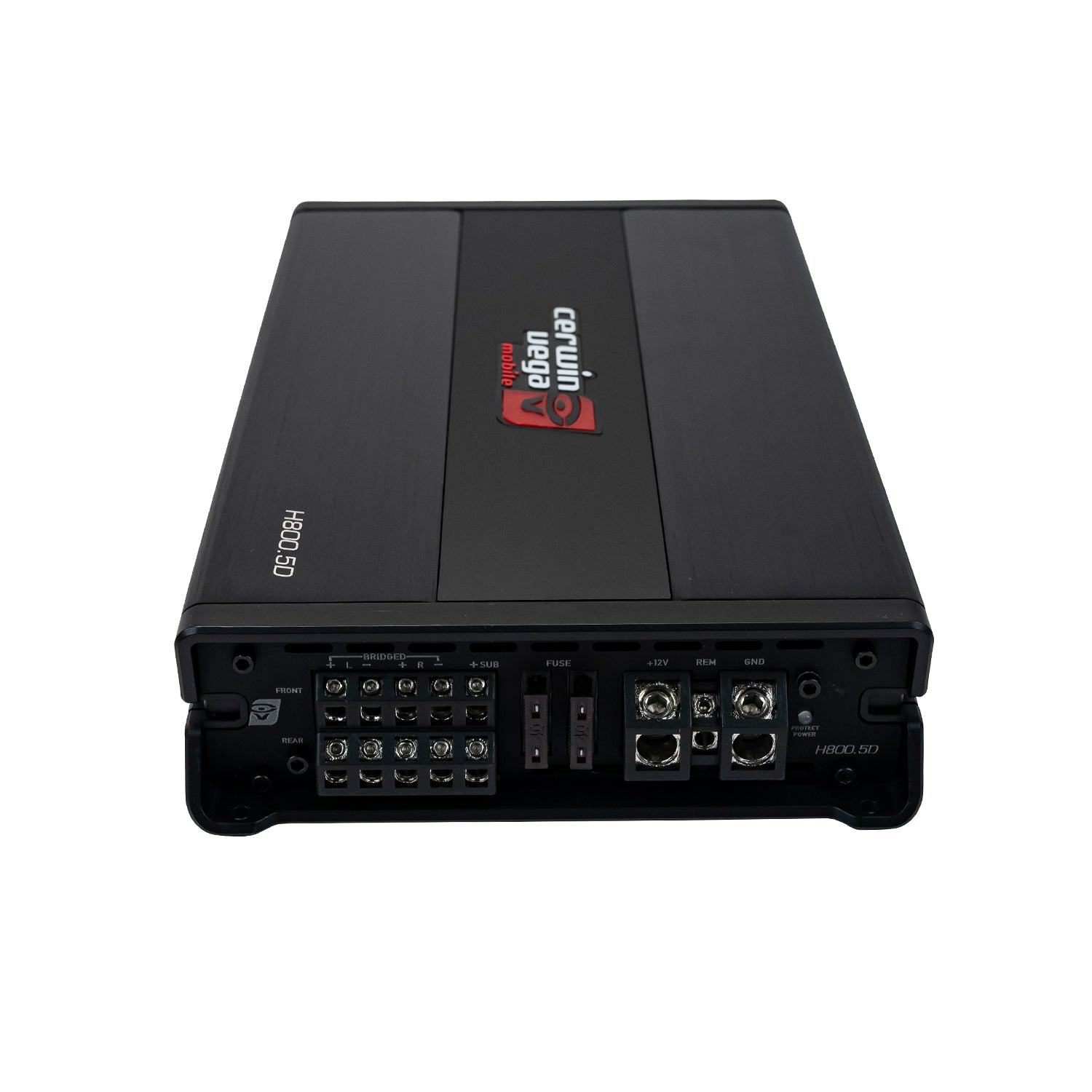

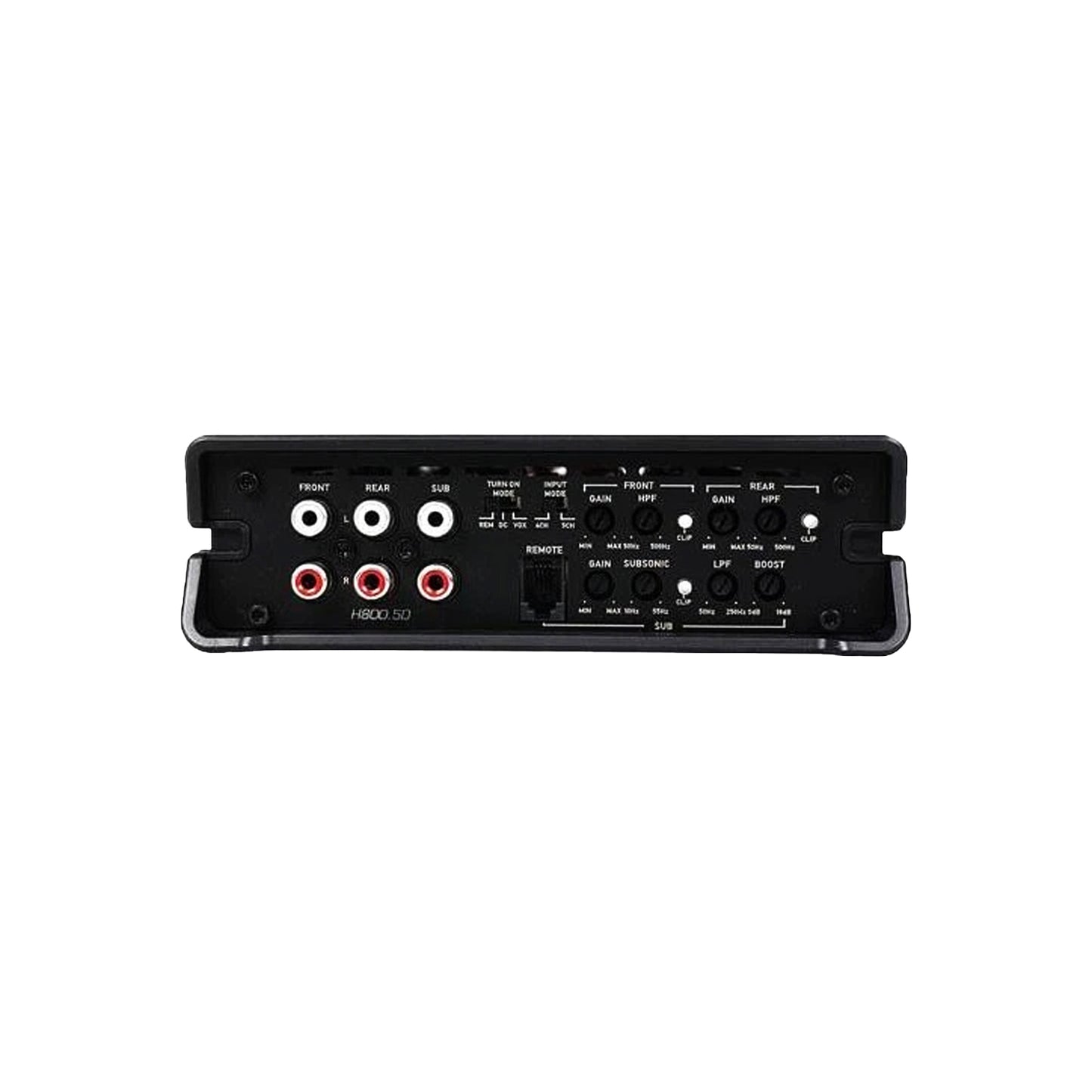

5-Channel HED Full Range Class-D Amplifier - H800.5D

Q1: What models are included in the Cerwin-Vega HED amplifier series, and what are their power and application scenarios?
A: The HED series is a high-cost-performance high-power Class-D amplifier lineup with 7 models covering complete channel and power gradients, suitable for basic upgrades and high-end custom car audio builds. Mono bass models include H1000.1D (1000W) and H1500.1D (1500W), delivering extreme dynamic bass for high-power competition subwoofer systems. Full-range multi-channel models cover diverse daily upgrades: H400.2D (2-channel 400W) for front speaker and mid-bass enhancement; H440.4D (4-channel 440W) and H800.4D (4-channel 800W) for full front and rear door speaker systems; H800.5D (5-channel 800W) all-in-one solution for four speakers plus a subwoofer; H900.6D (6-channel 900W) for advanced multi-speaker custom audio setups. Featuring high efficiency and sufficient power headroom, the series balances delicate daily listening and high-volume SPL performance.

Q2: Can HED full-range amplifiers drive vocal speakers? What are its sound tuning characteristics?

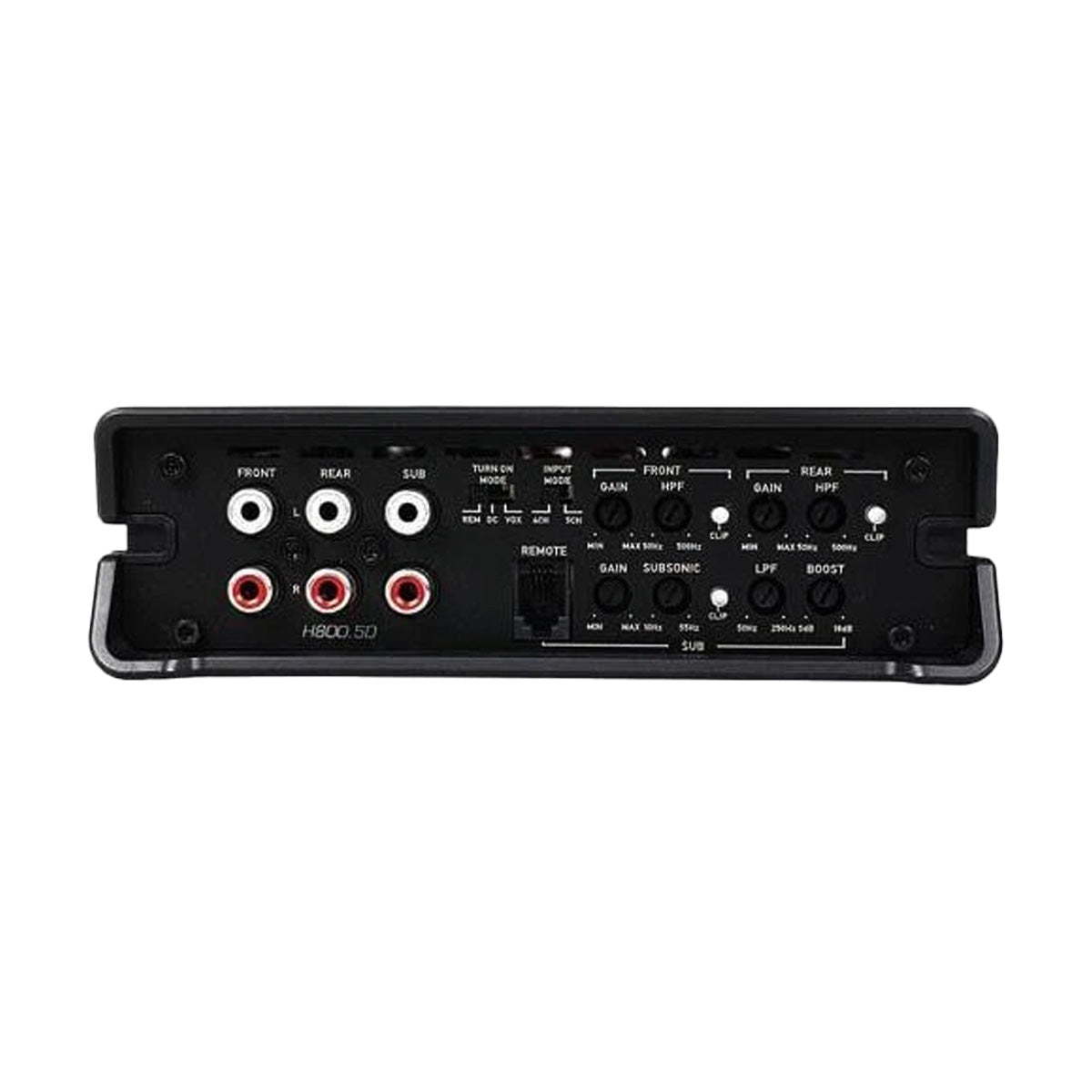

A: Except for the H1000.1D and H1500.1D bass-only mono models, all 2/4/5/6-channel HED amplifiers adopt professional full-frequency response design, stably powering vocals, midrange and treble speakers without limited bass-only output. Equipped with high-efficiency digital Class-D circuitry and low-distortion tuning, the series delivers clear, precise vocal imaging with signature Cerwin-Vega strong and punchy bass. Built-in adjustable high-pass, low-pass, subsonic filters and bass boost enable accurate frequency division, creating layered sound fields and eliminating muddle and distortion at high volumes for balanced, high-fidelity audio performance.

Q3: What impedance loads, bridging and strapping rules apply to HED amplifiers?
A: All HED amplifiers operate stably under professional car audio safety impedance loads. Mono subwoofer models support 1Ω, 2Ω and 4Ω wide-range low-impedance operation, delivering full rated power steadily at 1Ω for multi-subwoofer high-power systems. 2-channel, 4-channel, 5-channel and 6-channel full-range models work safely at 2Ω/4Ω loads and support 4Ω bridging to boost single-channel power for large speakers and high-volume subwoofer enclosures. Mixing different HED models with mismatched power specifications for bridging or strapping is strictly prohibited to prevent circuit faults and equipment damage.

Q4: How stable are HED high-power amplifiers under long full-load operation? How to troubleshoot the protection light?
A: Equipped with upgraded heat dissipation structure and multi-intelligent protection system, HED amplifiers feature optimized heat sink area and sensitive temperature control, avoiding power attenuation and overheating shutdowns during long-term high-volume and full-power playback with excellent continuous working stability. A red protection light indicates three typical faults: overheating caused by long high-load operation requires power-off cooling and improved installation ventilation; short circuits or loose wiring need terminal inspection and reconnection; unsafe low impedance load requires rewiring to restore standard safe impedance range.

Q5: What are the power installation requirements and professional tuning tips for HED amplifiers?
A: All HED amplifiers work stably within 10V–17V DC vehicle voltage range. Due to the series’ high-power output characteristics, 4AWG to 1/0AWG heavy-gauge power cables and matched fuses are recommended according to different models. Keep ground wires short and connected directly to bare chassis metal to reduce resistance and voltage drop. Stock batteries support daily casual use, while secondary batteries and stiffening capacitors are recommended for continuous high-power and competition scenarios. For tuning, reset head unit volume and amplifier gain to minimum, activate corresponding filters for different speakers, and increase gain slowly to the distortion-free threshold. Fine-tune the built-in bass boost to achieve clean, tight and dynamically powerful overall sound quality.
