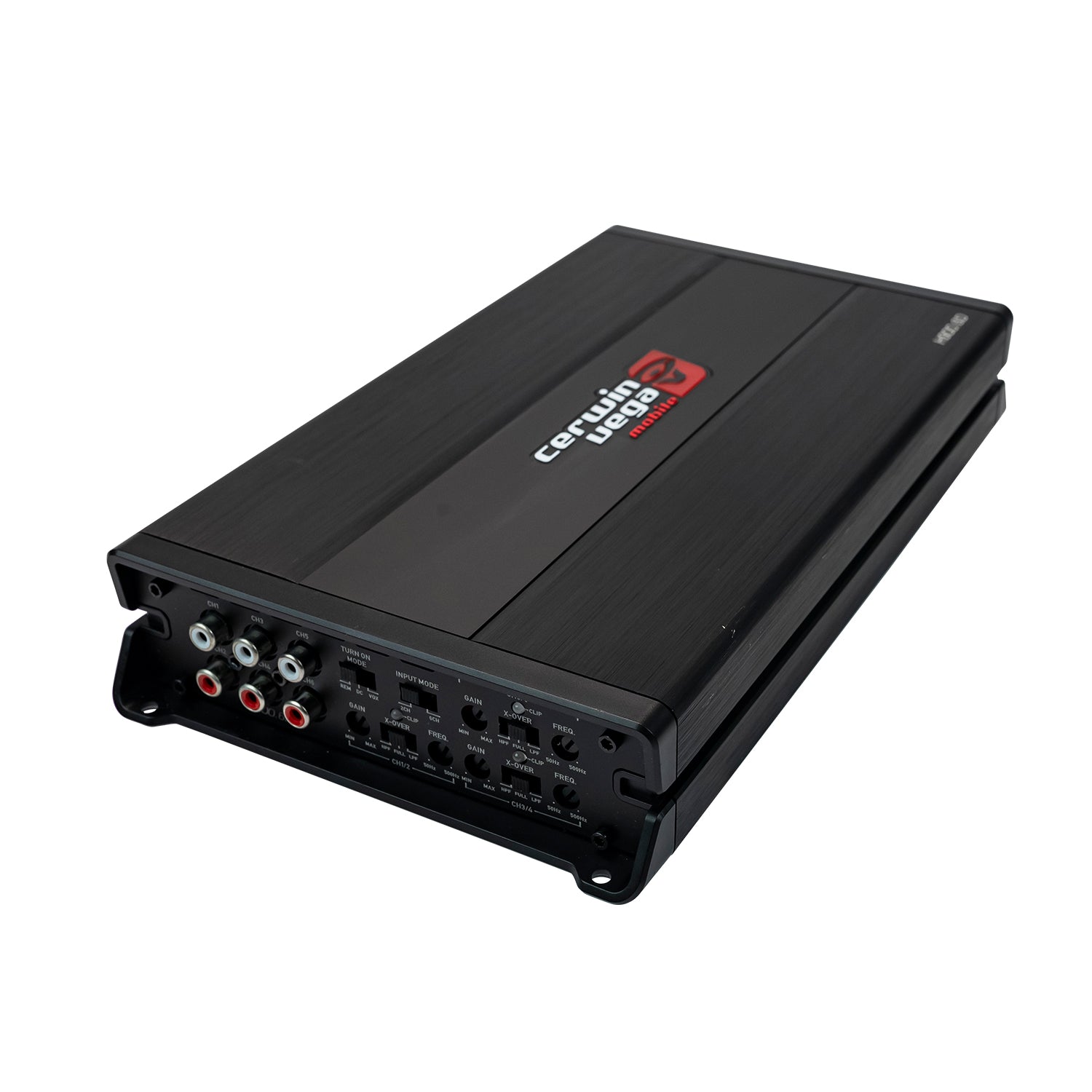

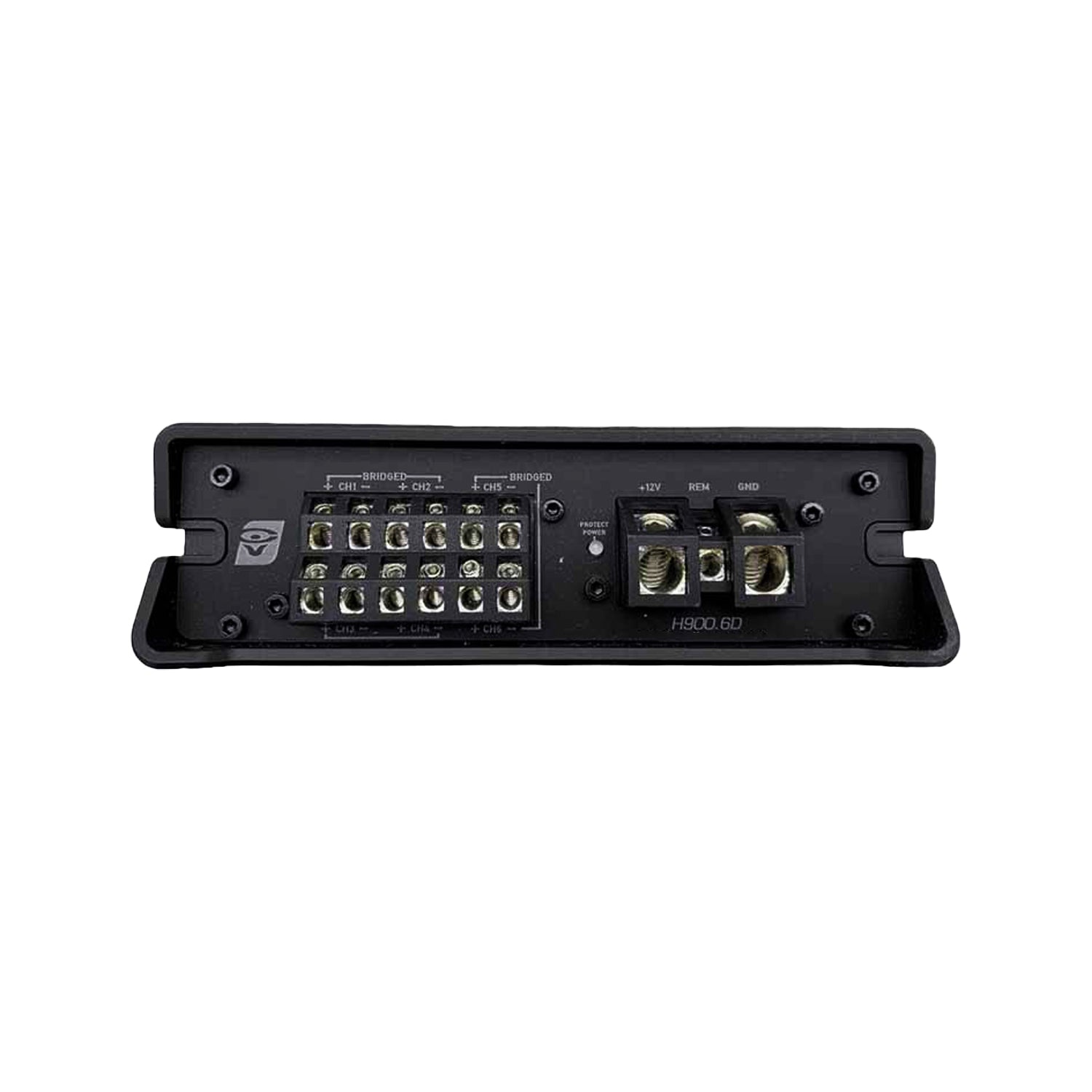

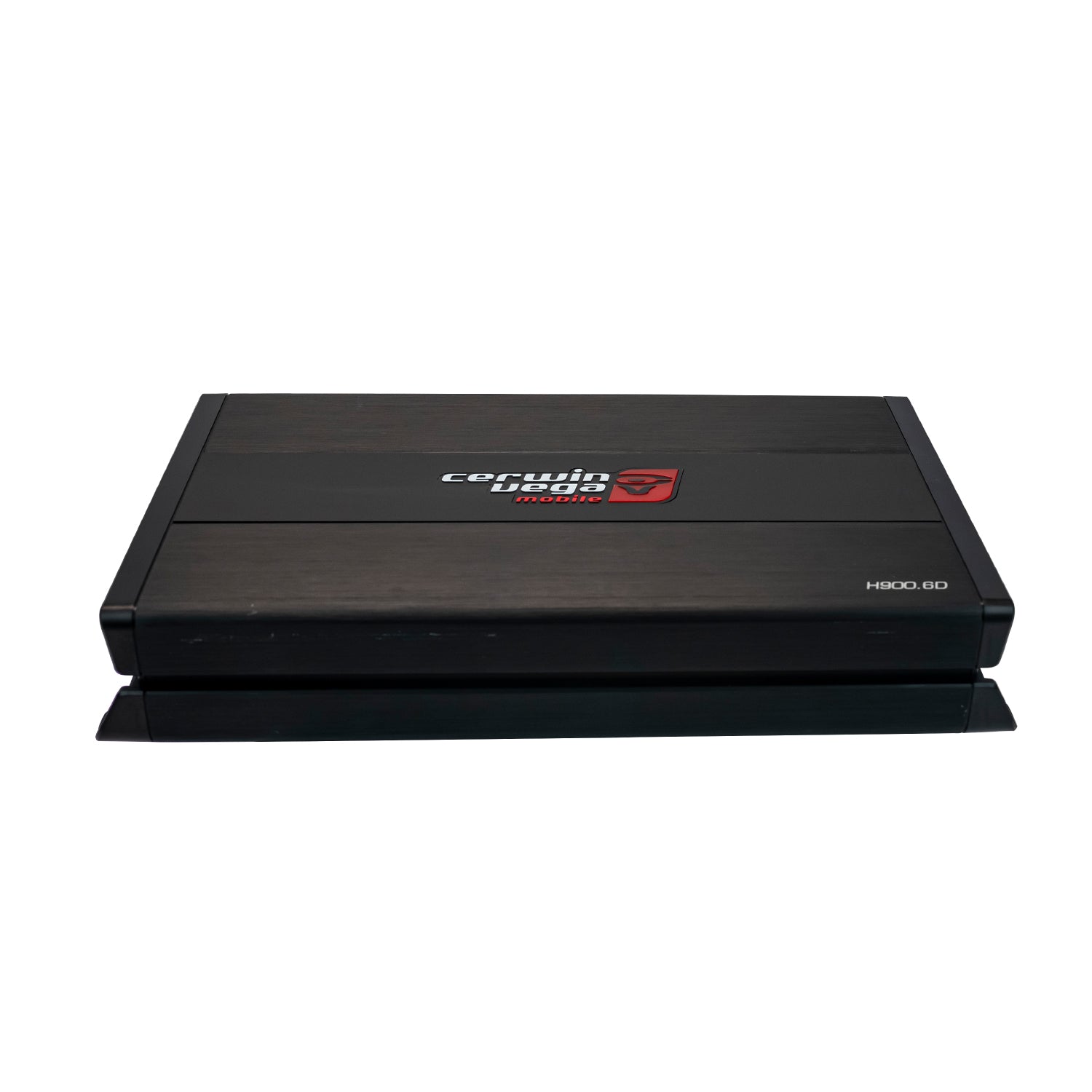

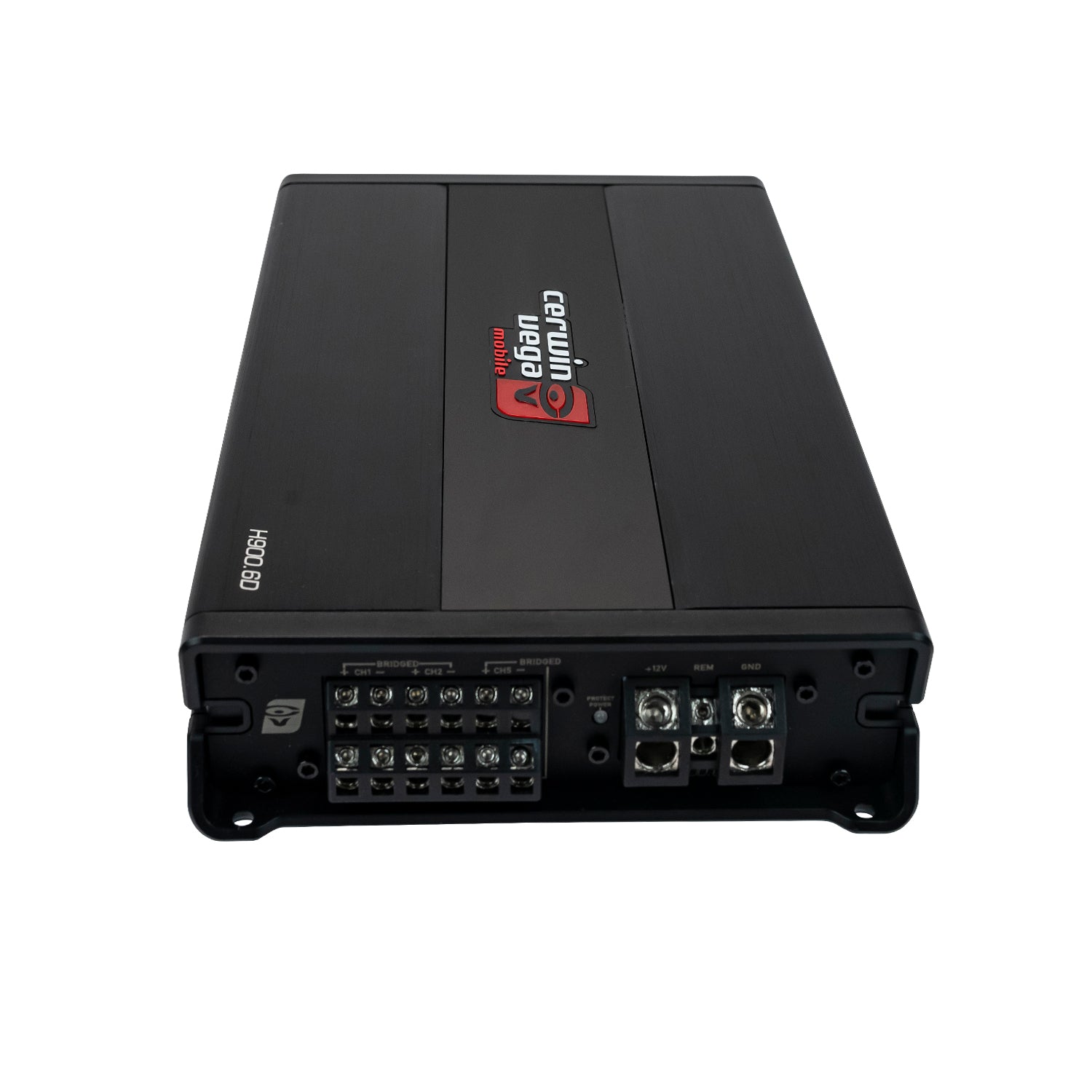

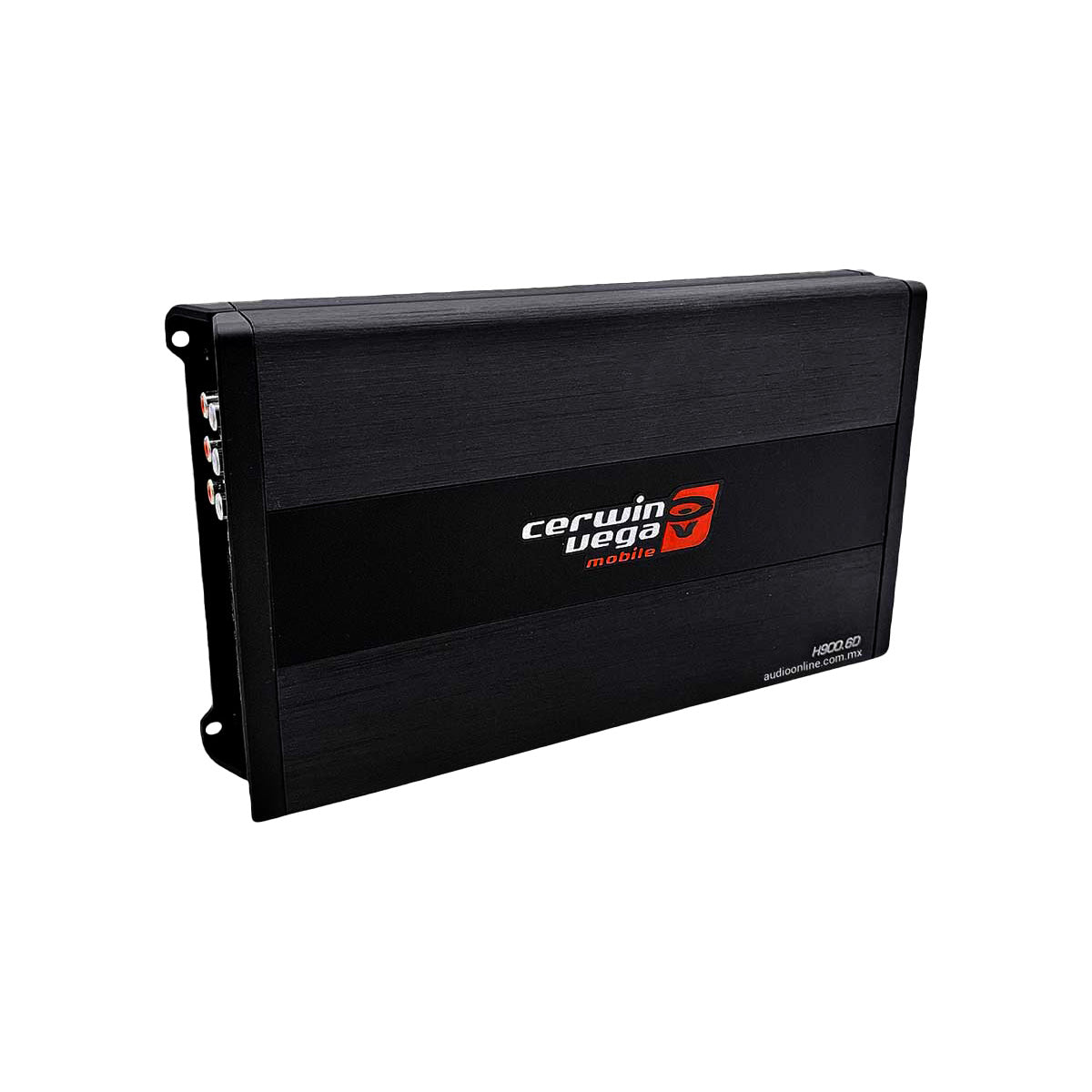

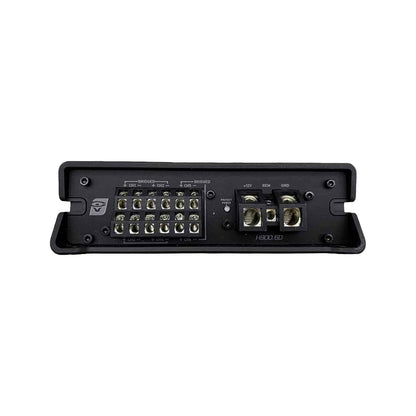

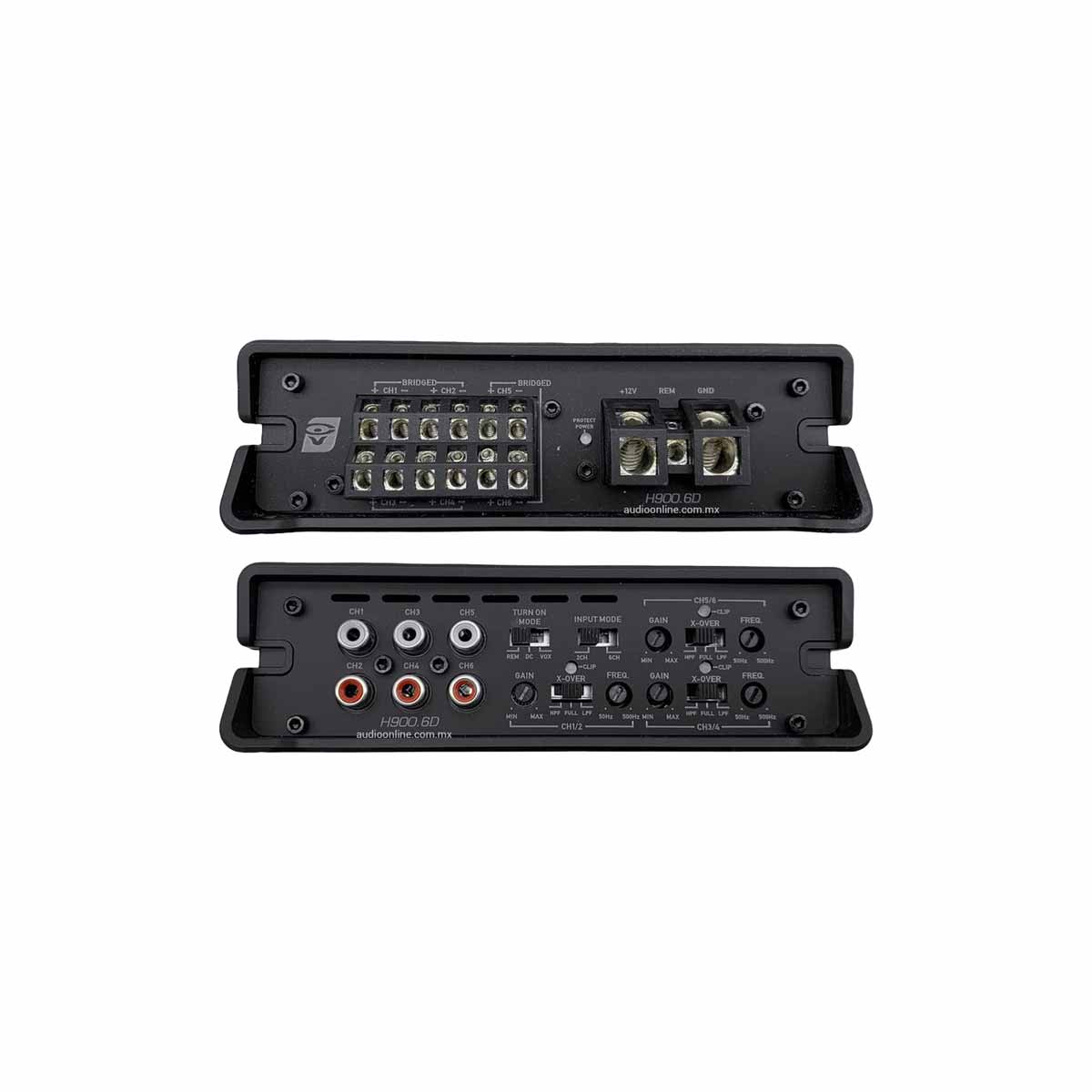

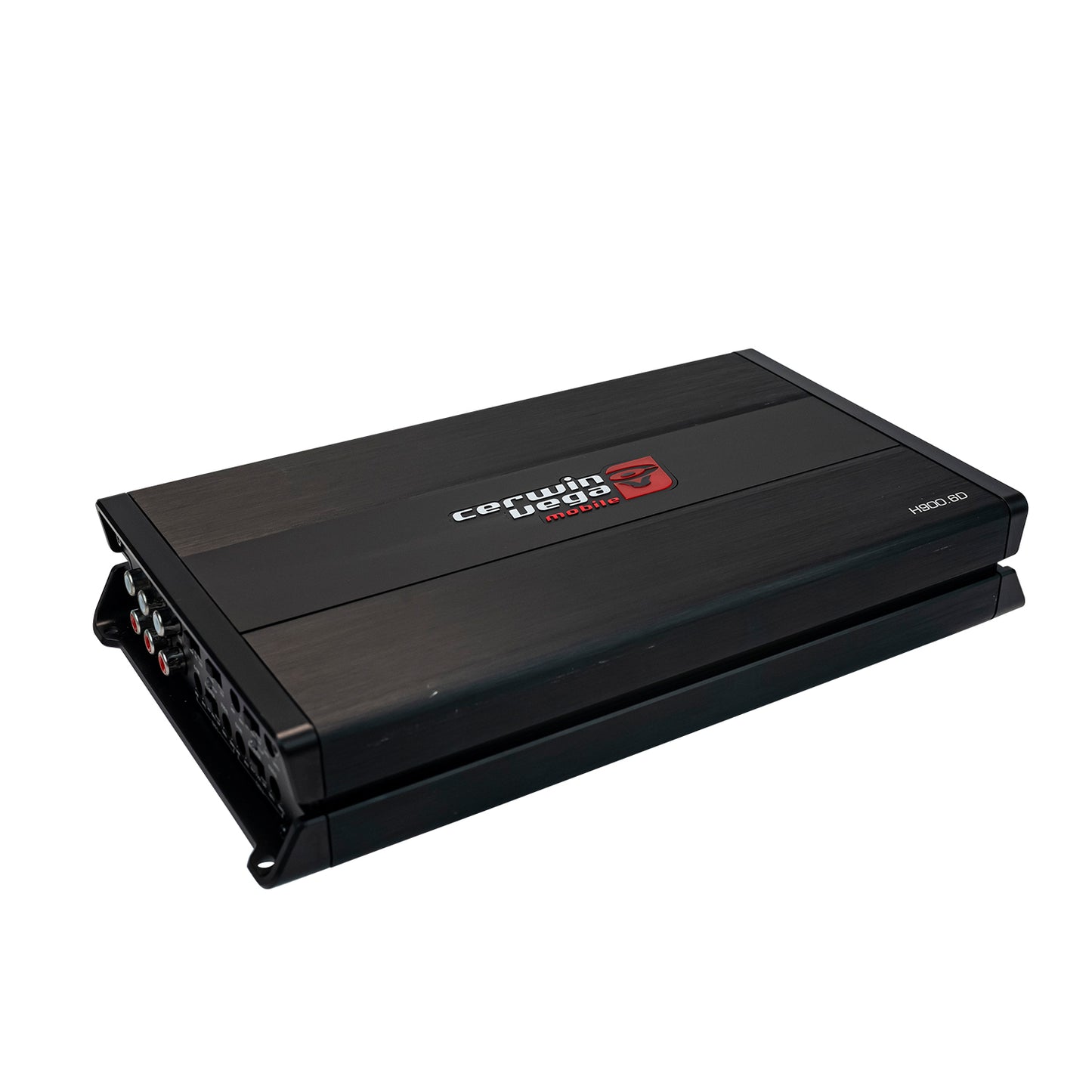

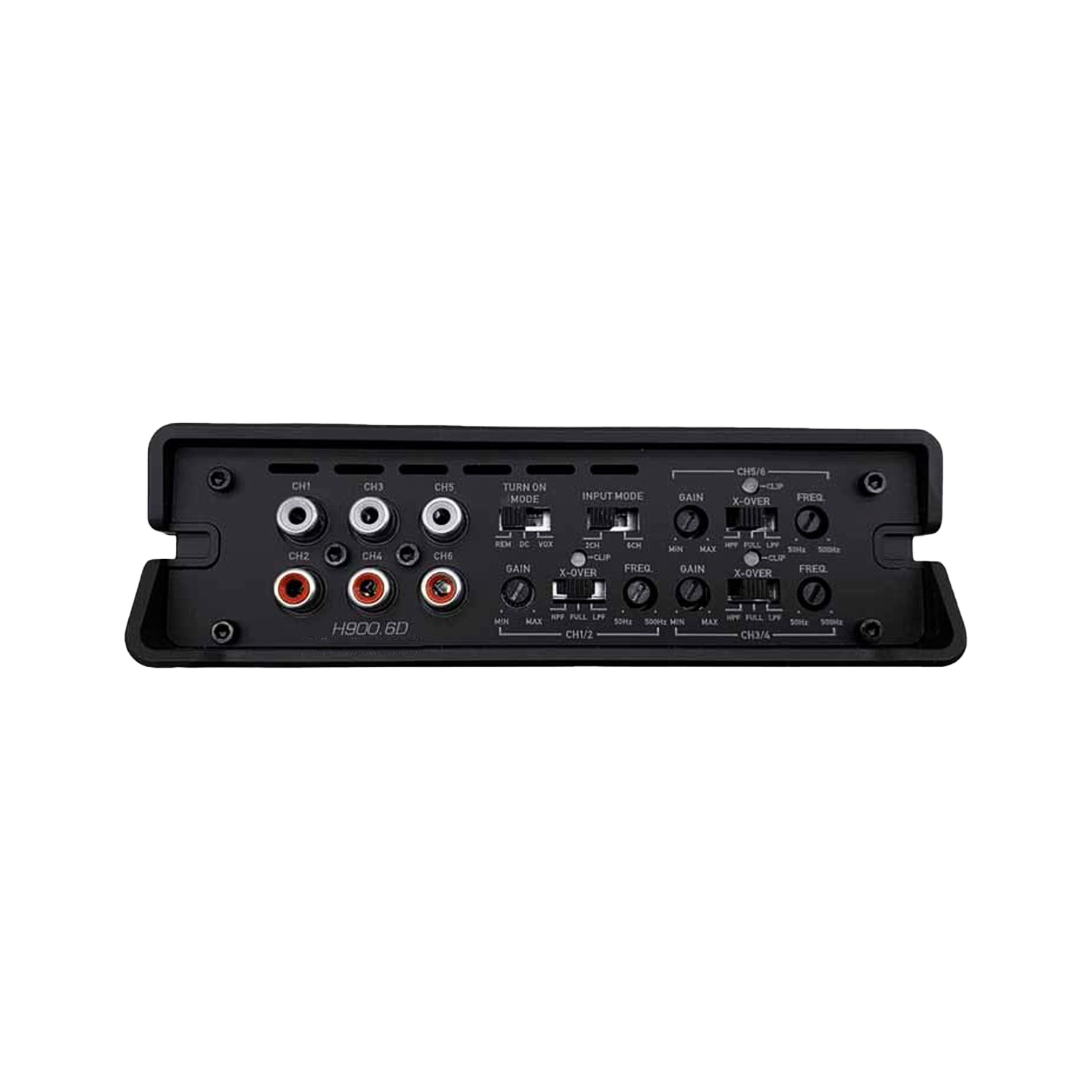

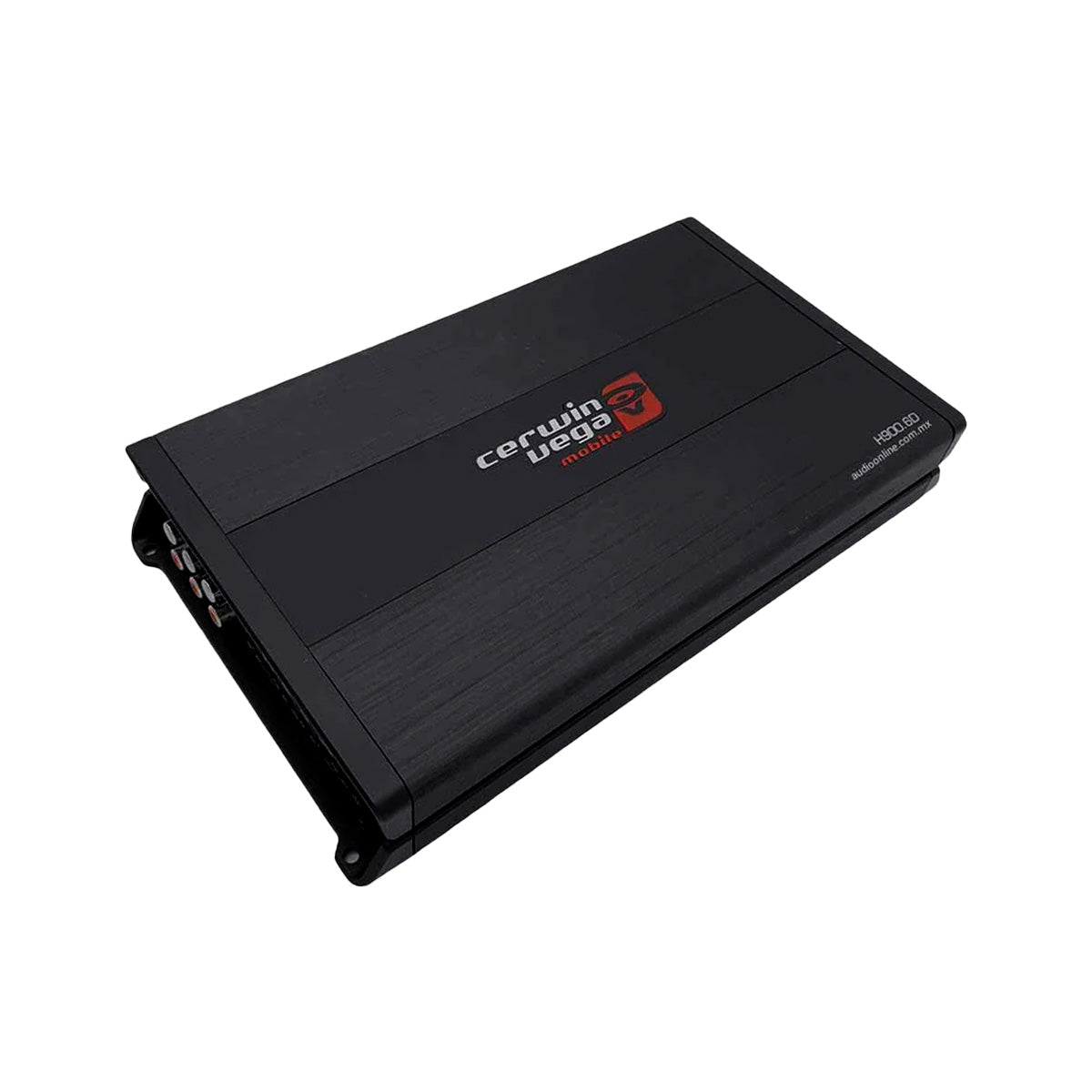

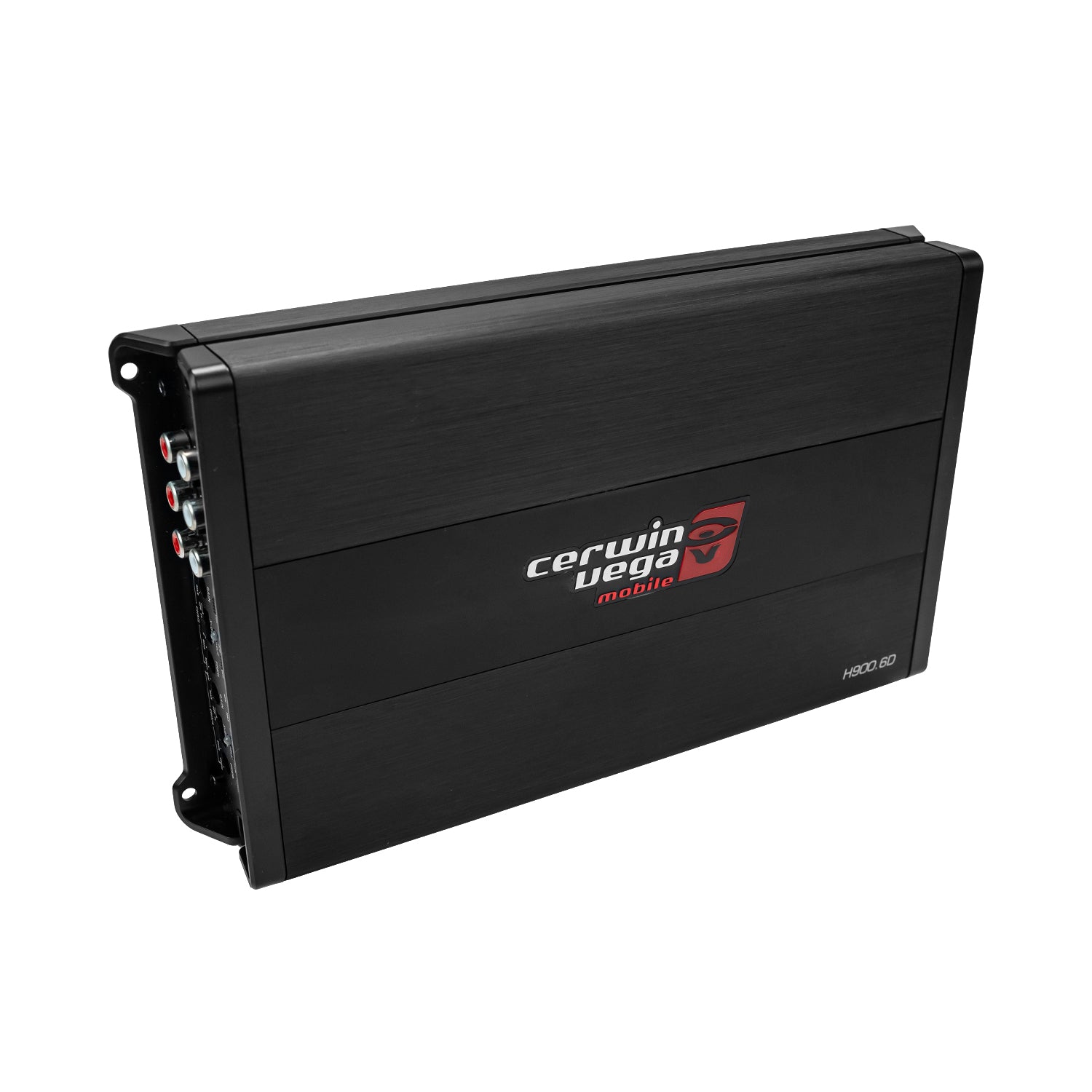

HED 6 Channel 900W Class-D Digital Amplifier -H900.6D
SKU:H900.6D
Overview
H900.6D - 6 Channel Full Range Class-D Digital Amplifier
Description:
Cerwin Vega HED series amplifiers are known for their advanced technology to deliver high performance. The use of aluminum in the construction of the amplifier chassis helps in heat dissipation and reduces weight, contributing to both efficiency and durability. These amplifiers are designed to produce a significant amount of power, making them suitable for demanding audio setups. HED series amplifiers are built with cutting-edge technology to ensure reliability and long-lasting performance. This includes high-quality components and meticulous engineering. HED series amplifiers utilize Class D amplifier technology, which is known for its high efficiency and ability to produce lots of power without generating excessive heat.
Specifications
6 Channel Full Range Digital Amplifier
150W x 6CH @ 2Ω RMS Power Output
100W x 6CH @ 4Ω RMS Power Output
300W x 3CH @ 4Ω Bridged @ 4Ω RMS Power Output
Input Sensitivity: 0.2-10 Volt
Crossover Filter :
50-500Hz (HPF), 12dB Per Octave Slope
50-250Hz (LPF), 24dB Per Octave Slope
Frequency Response: 10-33KHz
Signal to Noise Ratio: > 90dB
Overall Operation Efficiency: >82%
Selectable REM / VOX / DC Turn On Modes
Selectable 2CH / 6CH Input Modes
Fuse Rating 40A x 3
Dimensions: 11.0” x 6.3” x 1.9” (279.5 x 160 x 48.3 mm)
