6- Channel Digital Signal Processor (DSP)
SKU:CVDSP66
Couldn't load pickup availability
Overview

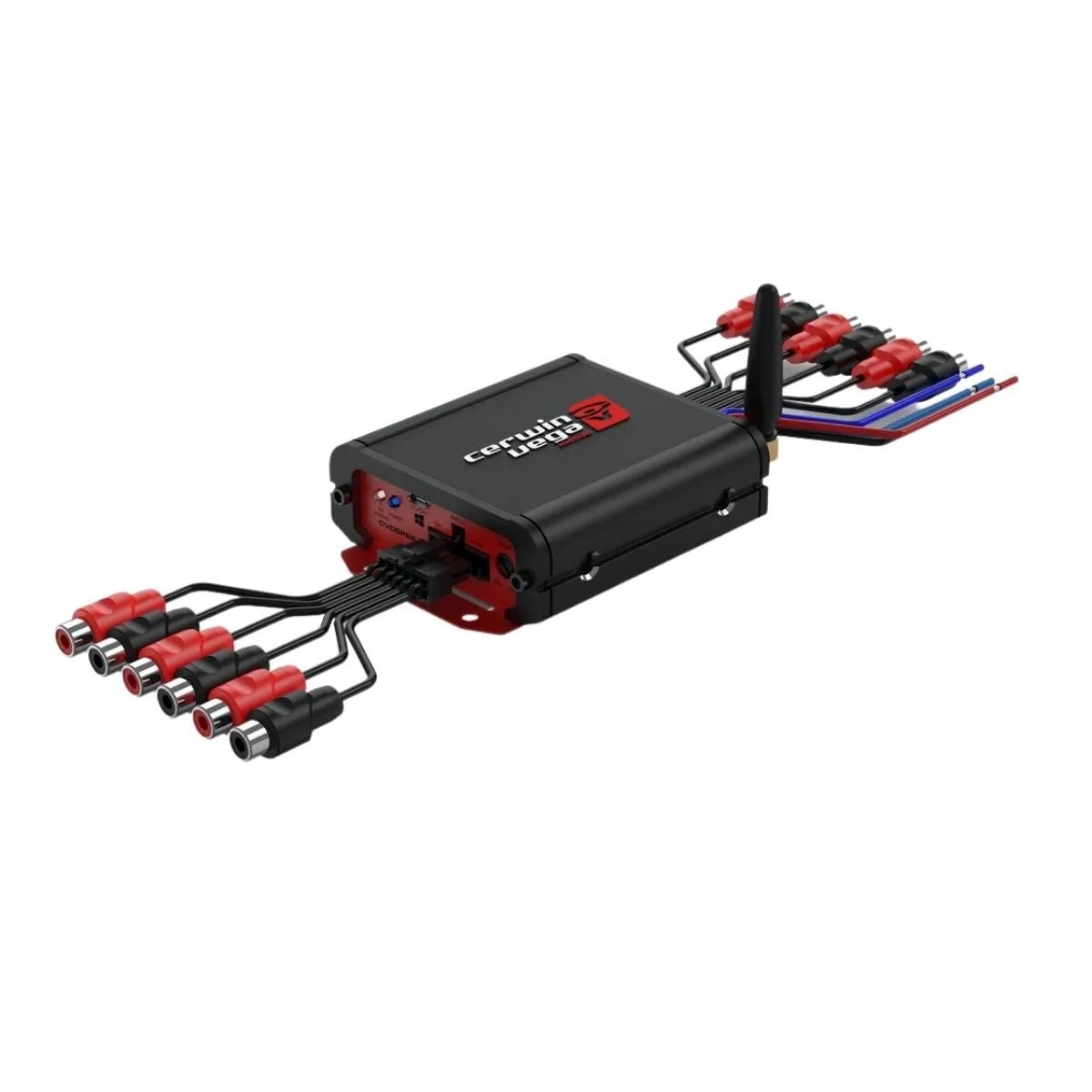

CVDSP66- MICRO 6 IN 6 OUT DSP
Description:
Cerwin-Vega Mobile expands its Digital Signal Processor category this year by adding the very practical and easy-to-use CVDSP66, CVDSP66LCD, and CVDSP88 models. Controlling your sound system and making acoustical system adjustments from the touch of your fingertips with its simple graphic user interface makes for an uncomplicated tuning process. The CVDSP66 & CVDSP66LCD feature six channels of input/output and 15 bands of equalization while the CVDSP88 takes it up a notch and features six channels of input and 8 channels of output with 31 bands of equalization.
Specifications
6-Channel (6 IN / 6 OUT) Digital Signal Processor
15 Band Parametric EQ
Fully Adjustable Crossovers
Tuning Operating Software: Windows
6.5 Volts Max RCA Pre-Out Voltage
Delay Timing Alignment
Signal to Noise Ratio: > 98dB
Frequency Response: 10-25KHz
Channel Separation: > -70dB
Advanced CSR 5.0 Bluetooth Module for Music Streaming
External Antenna for Enhanced Bluetooth Signal Reception
Conformal Coated 4-Layer Footprint Circuit PC Board
Dimensions: 4.03” x 3.1” x 1.16” (102.5 x 77.9 x 29.5 mm)
Product Manuals
