SRPM Stroker 2-Channel Full Range Class-D Amplifier - SRPM700.2DW
Weight: 4.51 lb
Couldn't load pickup availability
Overview

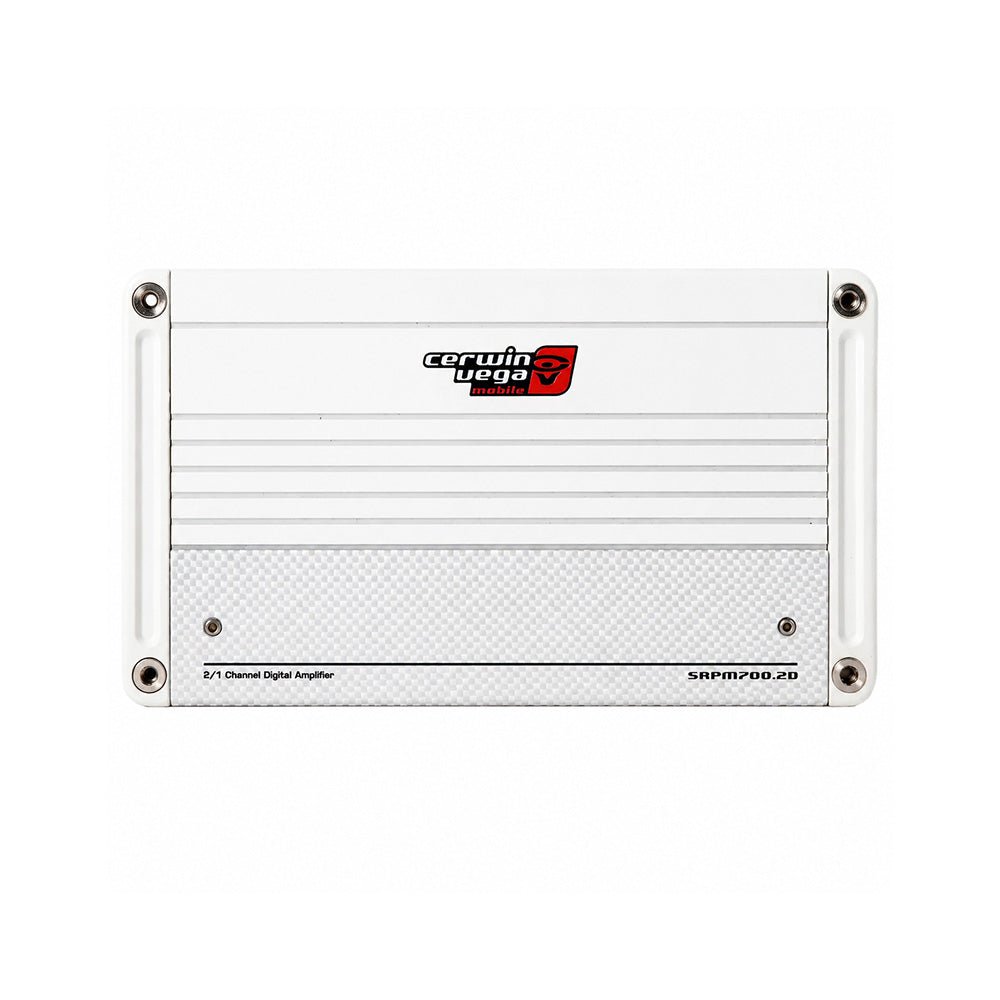

SRPM Stroker 2-Channel Full Range Class-D Amplifier (White)
Upgrade your car audio system with the Cerwin-Vega SRPM700.2DW RPM Stroker 2-Channel Full Range Class-D Amplifier, engineered to deliver powerful output, exceptional clarity, and efficient performance in a compact design. As part of the high-performance Cerwin-Vega RPM Stroker Series, this amplifier is built for enthusiasts who demand precision sound reproduction and reliable high-output performance from their vehicle audio systems.
The SRPM700.2DW 2-channel amplifier utilizes an advanced high-efficiency full-range Class-D digital topology, allowing it to produce impressive power while minimizing energy loss and heat buildup. This efficient design ensures your speakers receive consistent, clean power, delivering dynamic sound with minimal distortion even at higher volume levels.
Inside the amplifier, advanced surface-mount components and a rugged 4-layer PCB architecture provide exceptional durability and signal accuracy. This carefully engineered design ensures stable performance and long-term reliability, even in demanding car audio environments.

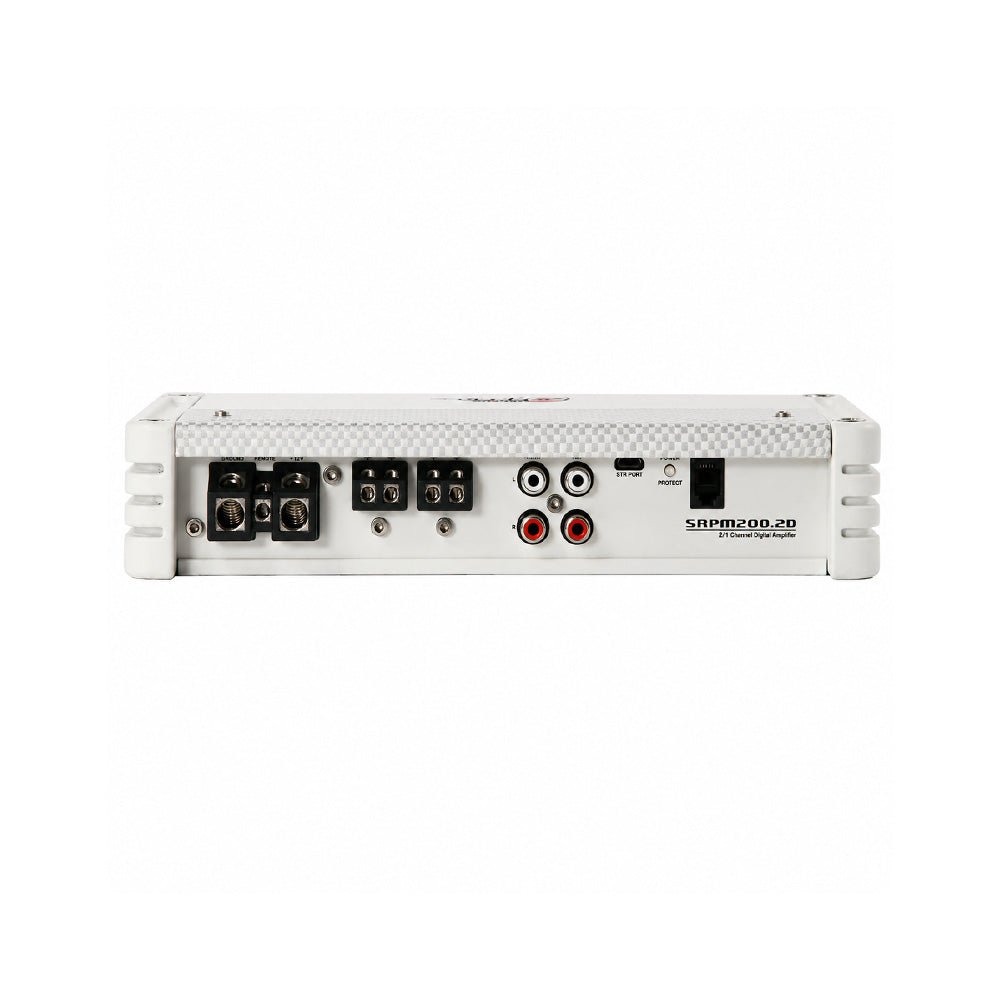

The Cerwin-Vega SRPM700.2DW amplifier also features a compact chassis with single-sided connections, making installation clean and convenient in tight vehicle spaces. Its flexible input design accepts both high-level and low-level signals up to 12 volts, allowing seamless integration with factory radios or aftermarket head units.
For installers and audio enthusiasts seeking precise sound tuning, the amplifier includes fully variable crossovers ranging from 35Hz to 350Hz with 12dB per octave filtering. These adjustable crossover controls allow you to fine-tune the frequency range sent to your speakers, ensuring optimal performance for any audio setup.
Multiple speaker-level turn-on options including VOX signal sensing, DC offset, and remote turn-on provide additional installation flexibility. Top-mounted controls make adjustments quick and easy during installation or system tuning.
Key Features:
• 2-channel full range Class-D car amplifier
• High-efficiency digital topology for powerful output
• Advanced 4-layer PCB with surface-mount components
• Compact chassis with single-sided connections
• Hi and low-level inputs up to 12V for easy integration
• Fully variable crossovers (35Hz–350Hz)
• Multiple turn-on options: VOX, DC offset, or REM
The Cerwin-Vega SRPM700.2DW RPM Stroker amplifier delivers powerful performance, precision control, and legendary Cerwin-Vega sound, making it an excellent choice for upgrading your car audio system with high-output speakers and crystal-clear full-range audio.
Specifications
Stroker RPM Series 2-Channel Full Range Amplifier (White)
Power Rating (RMS)
- Power @ 2Ω: 350W x 2
- Power @ 4Ω: 200W x 2
- Power Bridged @ 4Ω: 700W x 1
Power Supply
- Power Supply: Full WPM
- Power Supply Threshold: 10.0V-17.0V (DC)
- Idle Current: (0.7A)
Distortion
- THD 4 (1KHZ @4Ω): 0.05%
- S/N Ratio (A weighted @1W): 77.2 dBA
- S/N Ratio (A weighted @FP): 98.9 dBA
Input Sensitivity
- Low Level Input: 0.2mV-10.0V
- High Level Input: Up to 25W RMS
Input Impedance
- Low Level Input: 22KΩ
Output Stage
- Output Impedance: 0.047Ω
- Damping Factor (50Hz@4Ω): >250
- Bandwidth (-3db): 10Hz-35Hz
Crossover (1-12dB/Oct)
- Variable High-Pass: 40Hz-400Hz
- Variable low-Pass: 40Hz-400Hz
Dimensions

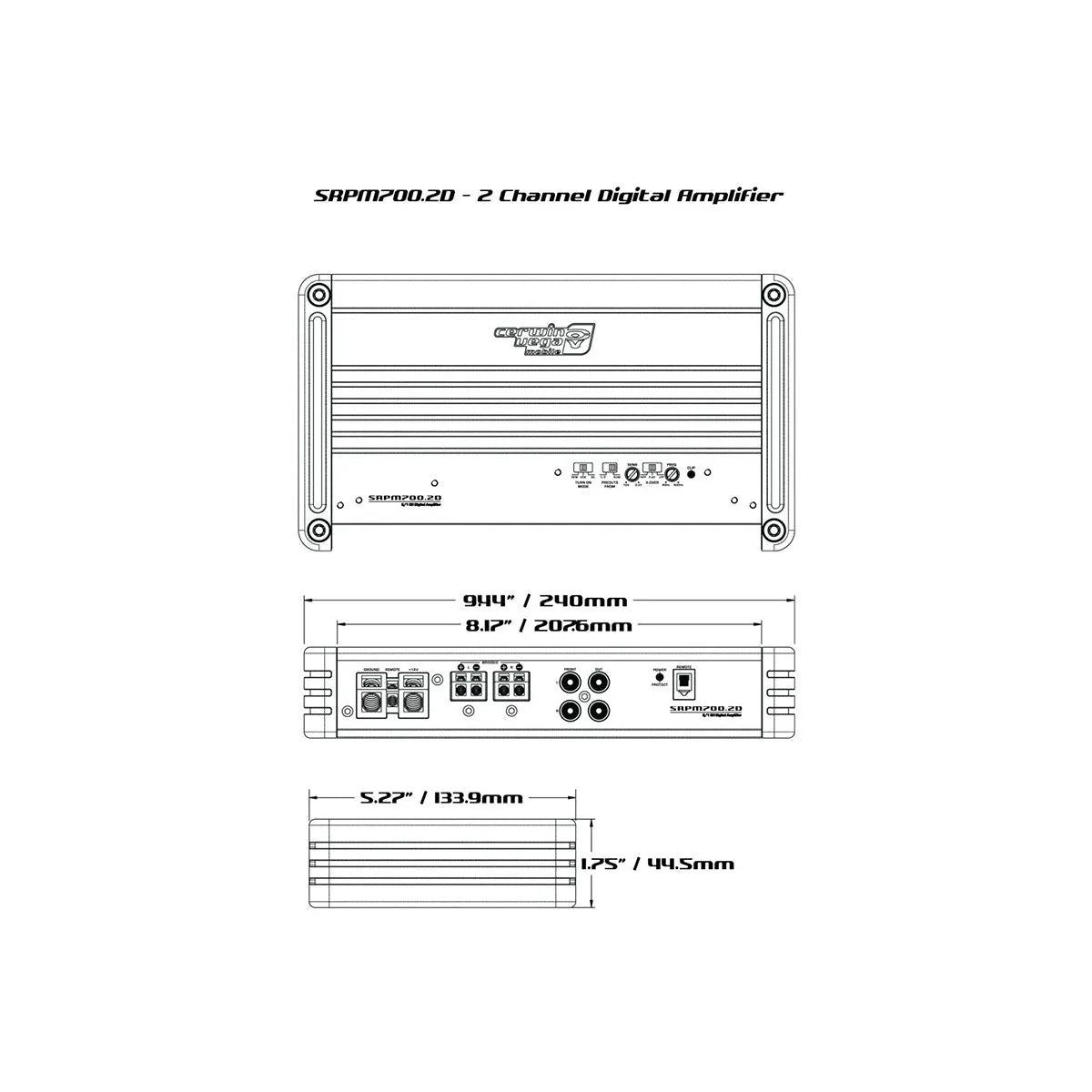

- Length x Width x Height: 8.66”x5.28”x1.75” (220mm x 134mm x 44.5 mm)
FEATURES
- Selectable X-over: Low Pass/Flat/High Pass
- Selectable Turn On Mode: REM/VOX/DC
- LED Power/Protect Light Indicator
- Output Clipping Indicator - Helps Set Gains
- MFR #: SRPM700.2DW
Product Manuals

RPM Stroker Series amplifiers boast immense dynamic headroom capability
Consistently delivering a sound that's more powerful than their rated specifications.
All RPM Stroker Series monoblocs feature
Variable Phase adjustment for precise and customizable audio performance.
