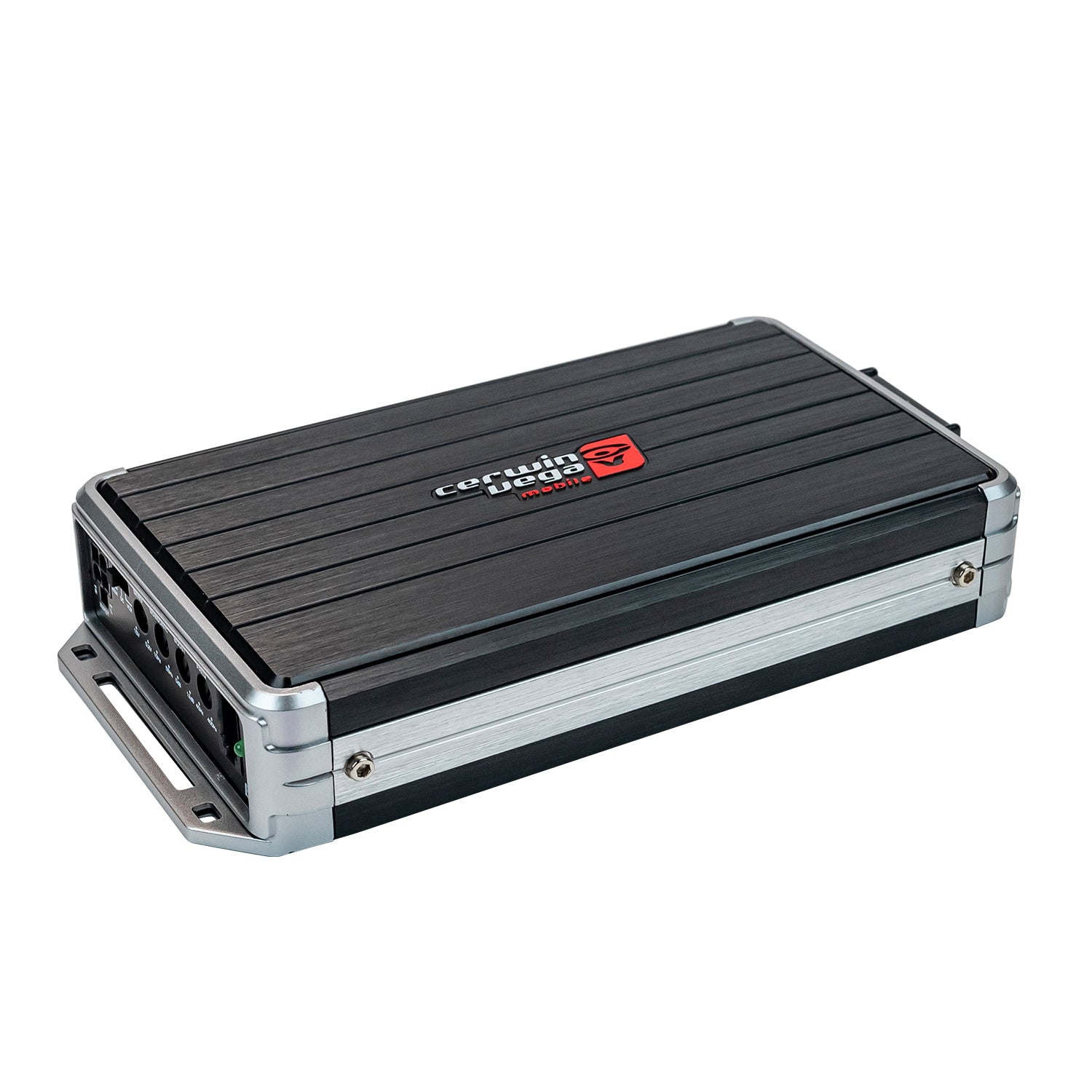

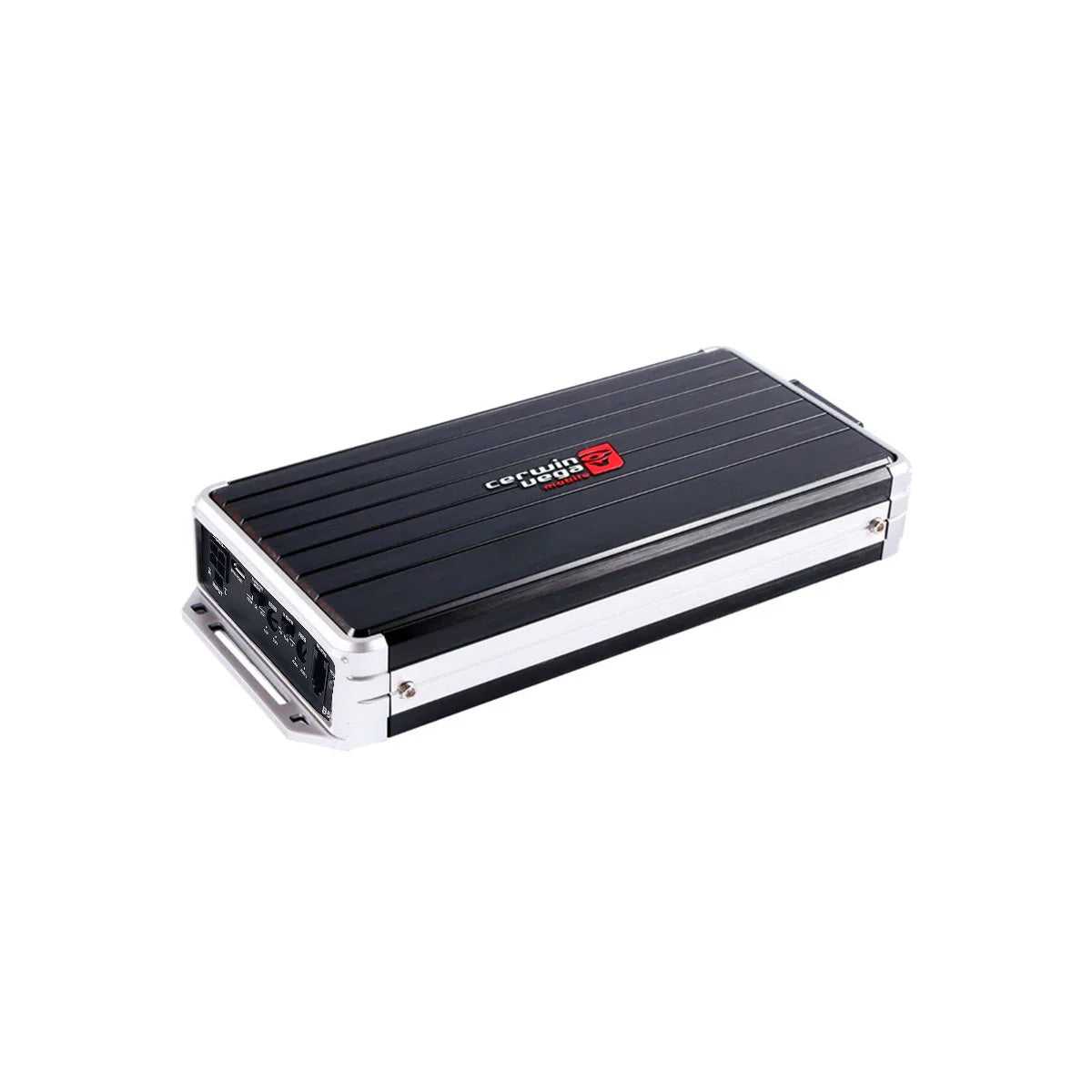

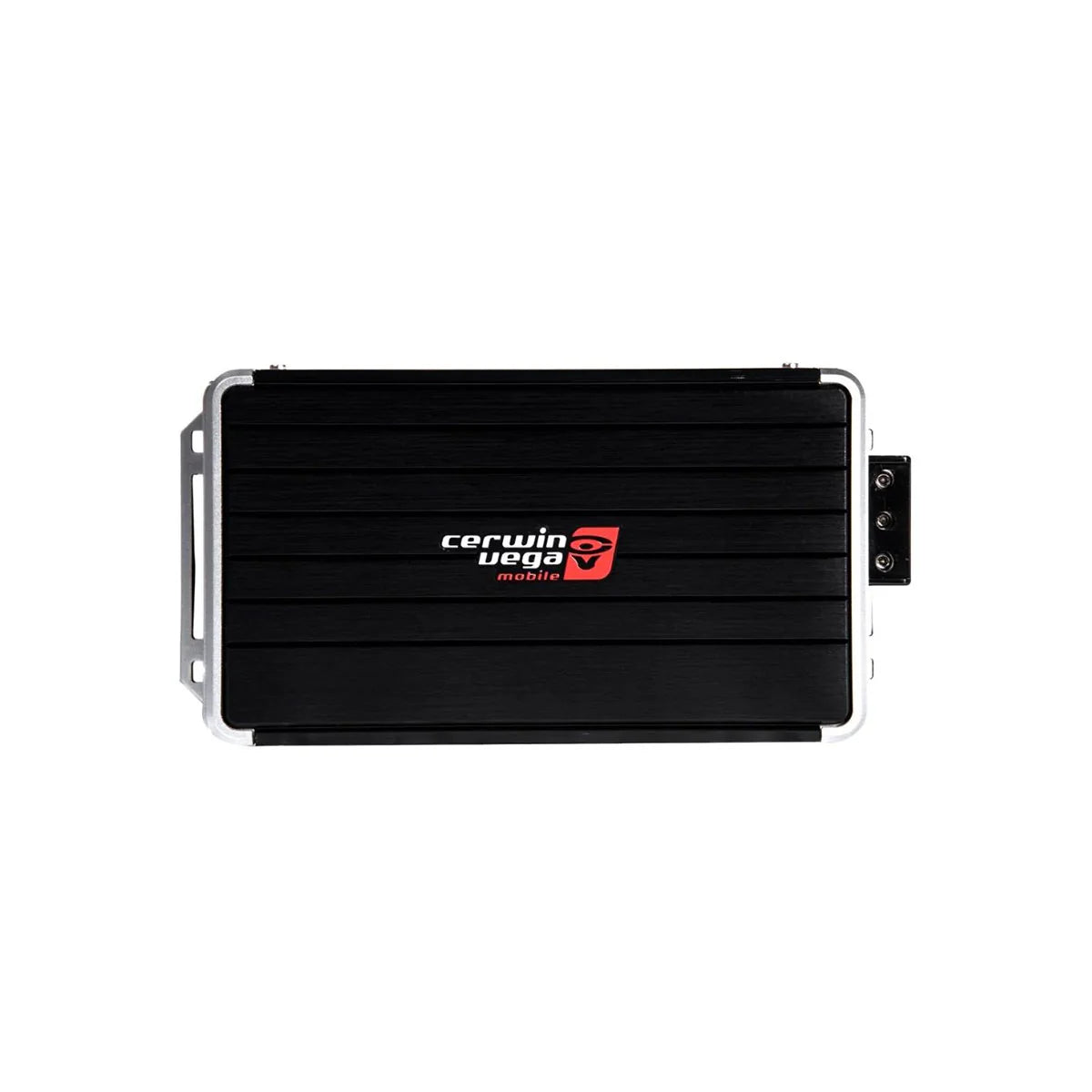

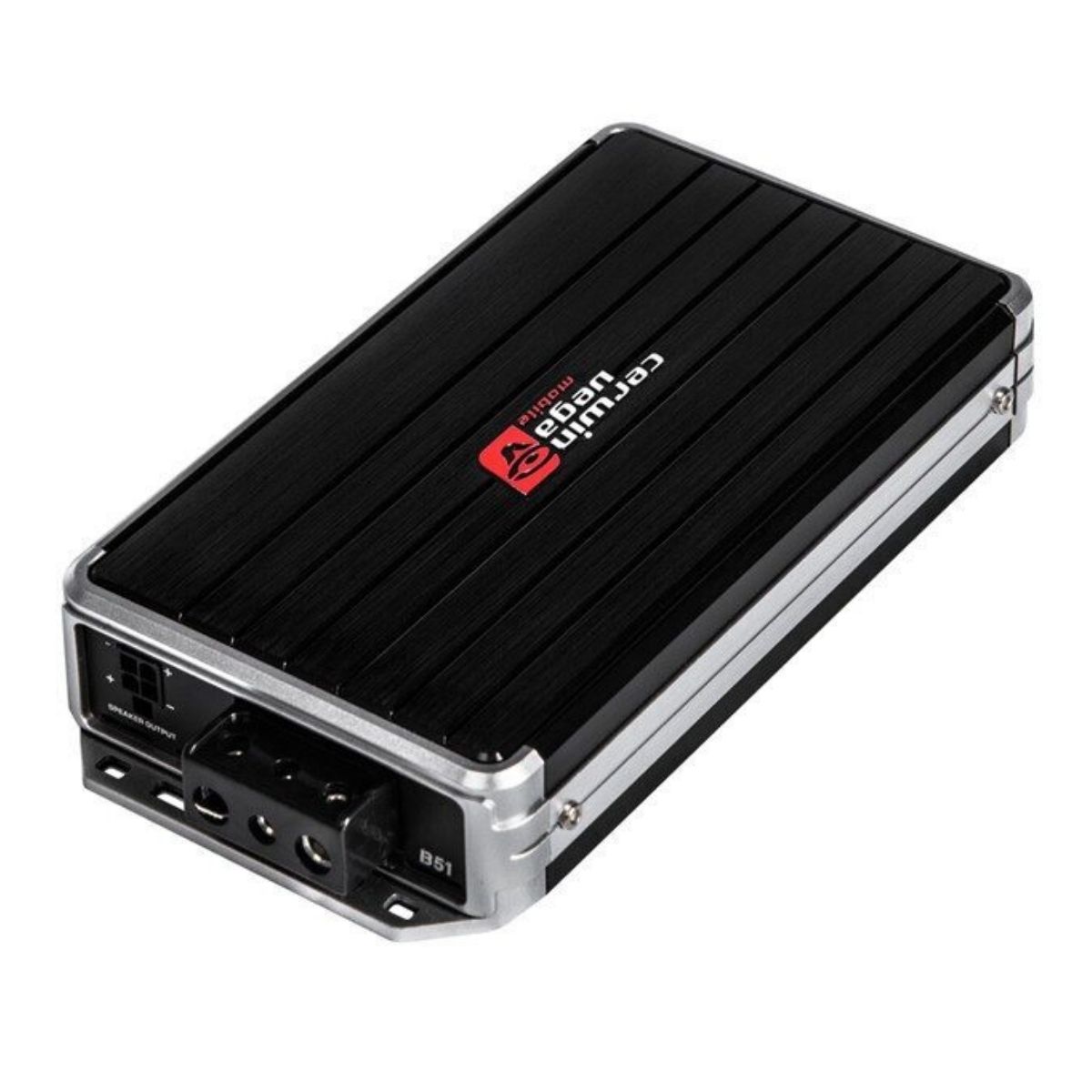

1-Channel Stealth Bomber Class-D Mono Block Amplifier - B51

Q1: What models are available in the Cerwin-Vega Stealth Bomber series, and what are their application scenarios?
A: The Stealth Bomber series features ultra-compact, high-density Class-D amplifiers designed for space-limited car audio upgrades. The lineup includes four models for full-system coverage. The B51 1-channel mono amplifier delivers 500W RMS power for passive subwoofers, supporting stable 1Ω high-power operation. The B52 2-channel 500W RMS full-range model is ideal for front door component speaker upgrades and mid-bass enhancement. The B54 4-channel 600W RMS amplifier powers full front and rear door speaker sets for complete sound field upgrades. The top-tier B55 5-channel 950W RMS all-in-one amplifier drives four door speakers plus a subwoofer simultaneously, serving as the perfect solution for hidden and stealth-style audio builds.

Q2: Can Stealth Bomber ultra-slim amplifiers power vocal speakers? What are its sound quality advantages?
A: Except for the bass-only B51 mono model, the B52, B54 and B55 feature a wide 10Hz–35KHz full-frequency response, perfectly reproducing vocals, midrange and treble instead of limited low-frequency output. Equipped with high-precision Direct-FET power MOSFET chips, the series achieves ultra-low 0.5% THD and excellent signal-to-noise ratio, delivering crisp, detailed vocals with signature Cerwin-Vega punchy bass. Built-in 40Hz–400Hz adjustable high-pass and low-pass filters ensure precise frequency division, creating layered, balanced and full sound quality without the weak audio performance common in slim amplifiers.

Q3: What impedance loads and bridging options do Stealth Bomber amplifiers support?
A: All Stealth Bomber amplifiers deliver stable performance under standard car audio impedance loads. The B51 mono subwoofer amplifier supports 1Ω, 2Ω and 4Ω loads, outputting 500W RMS at 1Ω for high-performance subwoofer setups. The B52, B54 and B55 full-range models work steadily at 2Ω and 4Ω loads and support 4Ω bridging for increased single-channel power to drive large speaker units. Mixing different amplifier models for bridging is strictly prohibited to avoid circuit failure and equipment damage.

Q4: Is the slim heat dissipation system sufficient? How to troubleshoot protection lights and abnormal noise?
A: Featuring a high-density aluminum chassis and advanced rollback thermal protection system, Stealth Bomber ultra-slim amplifiers adopt optimized air channel design for efficient heat dissipation. Temperature remains stable even during long full-power playback without overheating shutdowns. Troubleshooting guide: unwanted current noise is caused by poor grounding or low-quality RCA cables, fixable by upgrading signal wires and optimizing chassis grounding; weak bass and chaotic sound result from reversed speaker polarity, requiring positive/negative wire correction; the red protection light triggers from overheating, short circuits or unsafe impedance, which can be solved by cooling the unit, tightening wiring and adjusting loads to safe range.

Q5: What are the installation, power requirements and tuning tips for Stealth Bomber amplifiers?

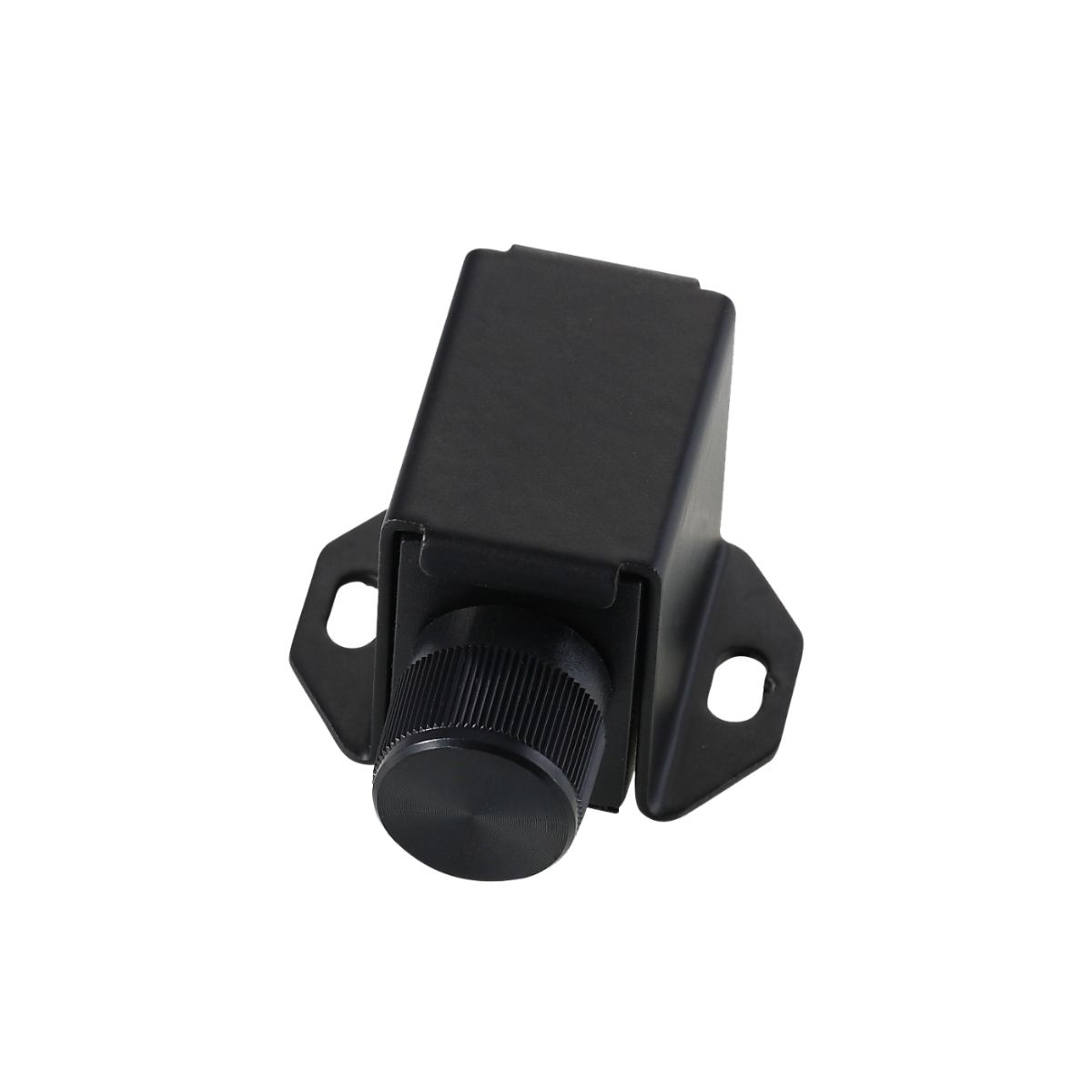

A: All Stealth Bomber amplifiers operate stably at 10V–17V DC vehicle voltage. The ultra-slim body allows flexible hidden installation under seats or inside interior panels. Install with matched-gauge power cables, fuses and short ground wires to minimize resistance and ensure stable power supply. Each unit includes a wired remote bass knob for in-dash bass adjustment. For tuning, reset head unit volume and amp gain to minimum, apply high-pass filters for vocal speakers and low-pass filters for subwoofers, then increase gain slowly until distortion-free sound is achieved, balancing clear vocal performance and powerful deep bass.
