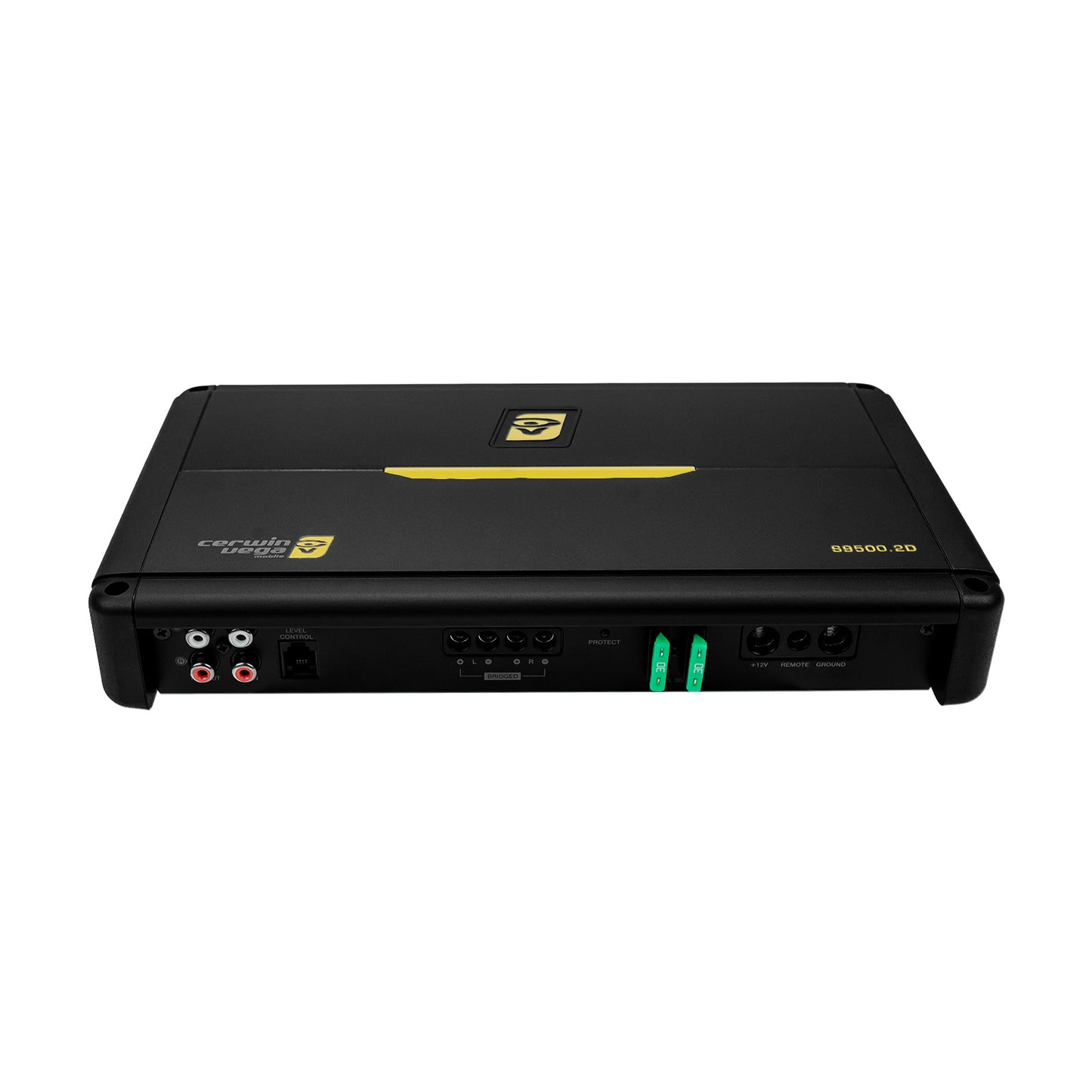

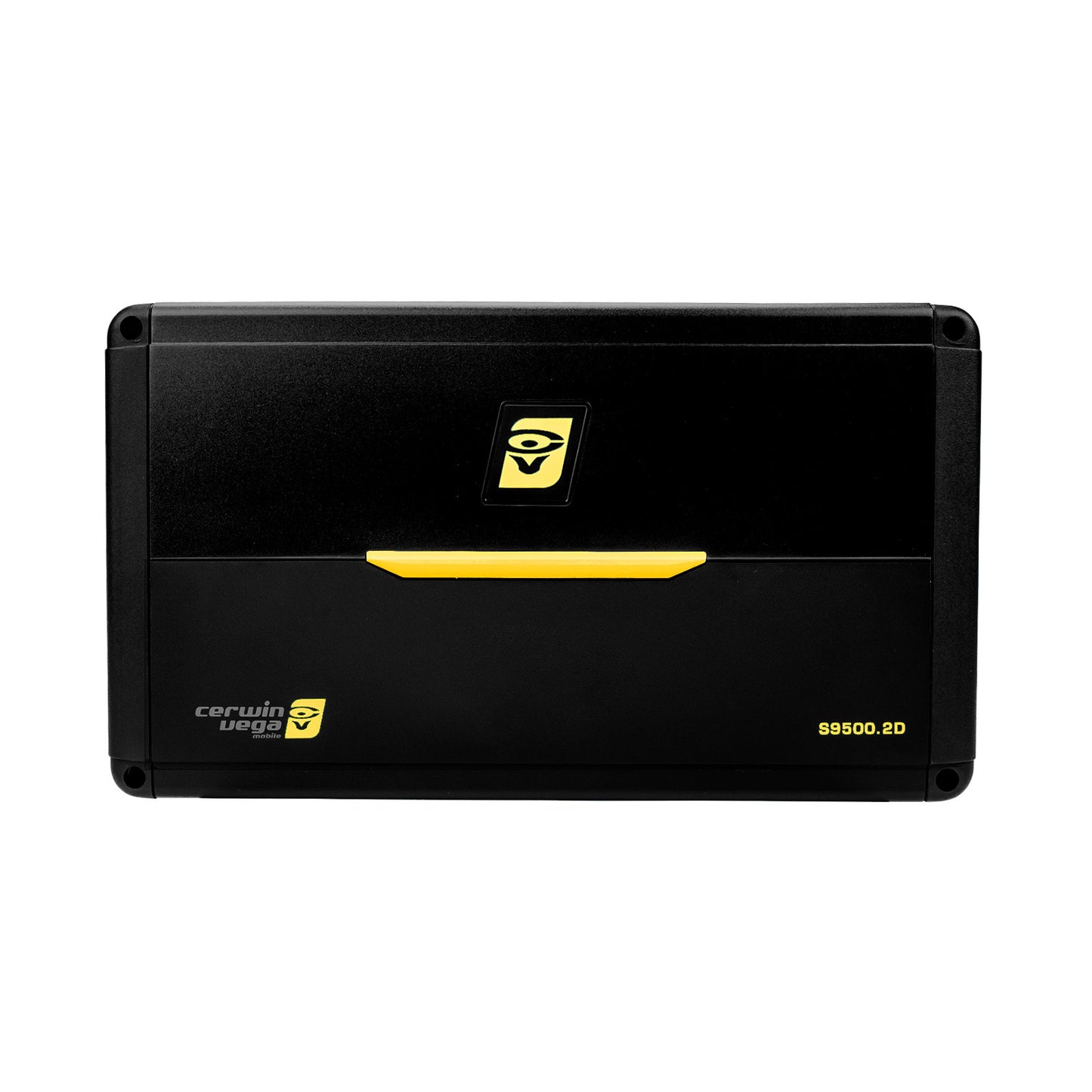

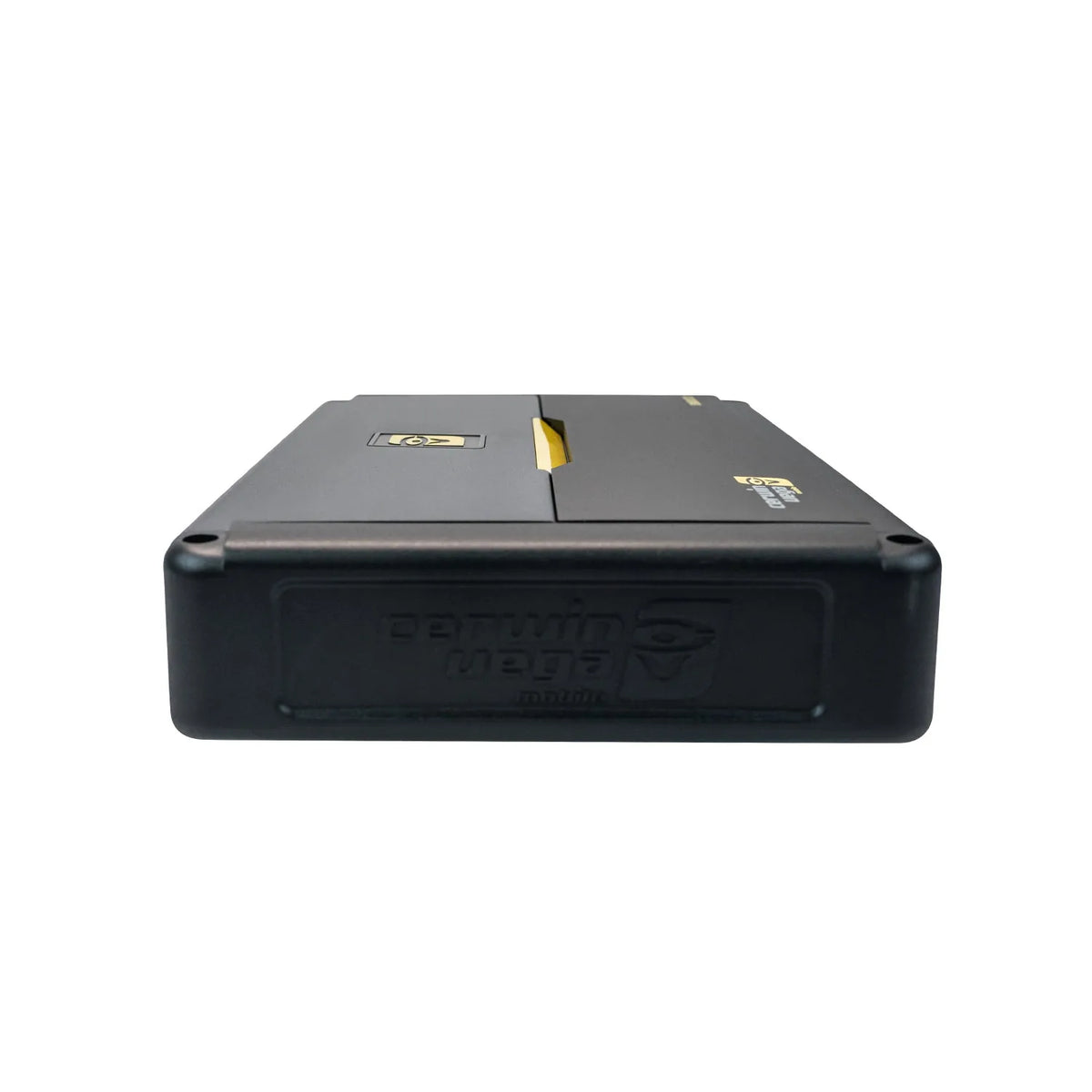

Stroker 500W RMS Class-D Digital 2 Channel Amplifier-S9500.2D
SKU:S9500.2D
Couldn't load pickup availability
Overview
S9500.2D - Stroker Class-D 2 Channel Amplifier
Description:
STROKER PRO series amplifiers deliver BIG power, BIG performance, BIG everything! You know the old saying. Go BIG or Go Home! STROKER PRO amplifiers are powerful beasts that can drive and push the most inefficient speakers and subwoofers available in today’s market and brings out their fullest performance capabilities to dramatic levels of high excursion, clean, and distortion-free sound! Massive aluminum heatsinks provide for superior thermal heat dissipation while robust 1/0 gauge power connections provide the efficient high current transfer. An ideal power choice for SPL and extreme sound systems, STROKER PRO amplifiers were built for this calling!
Specifications
2 Channel Amplifier
250Wx2 @ 2Ω RMS Power
200Wx2 @ 4Ω RMS Power
500W x1 @ 4Ω RMS Power
Crossover: 35 Hz – 400Hz (LP/HP)
Frequency Response: 10Hz – 35KHz
Latest High-Efficiency Full Range Digital Topology
Surface Mount Component Technology with 4-Layer PCB
Common Compact Size with Single-Sided Connections and Top Mount Controls
Handles HI and LO level input up to 12V
Switched Speaker Level Turn On Option (VOX/DC Offset/REM
Input configuration switch on 4 and 5 channel amplifiers
Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers
Lighted LED logo

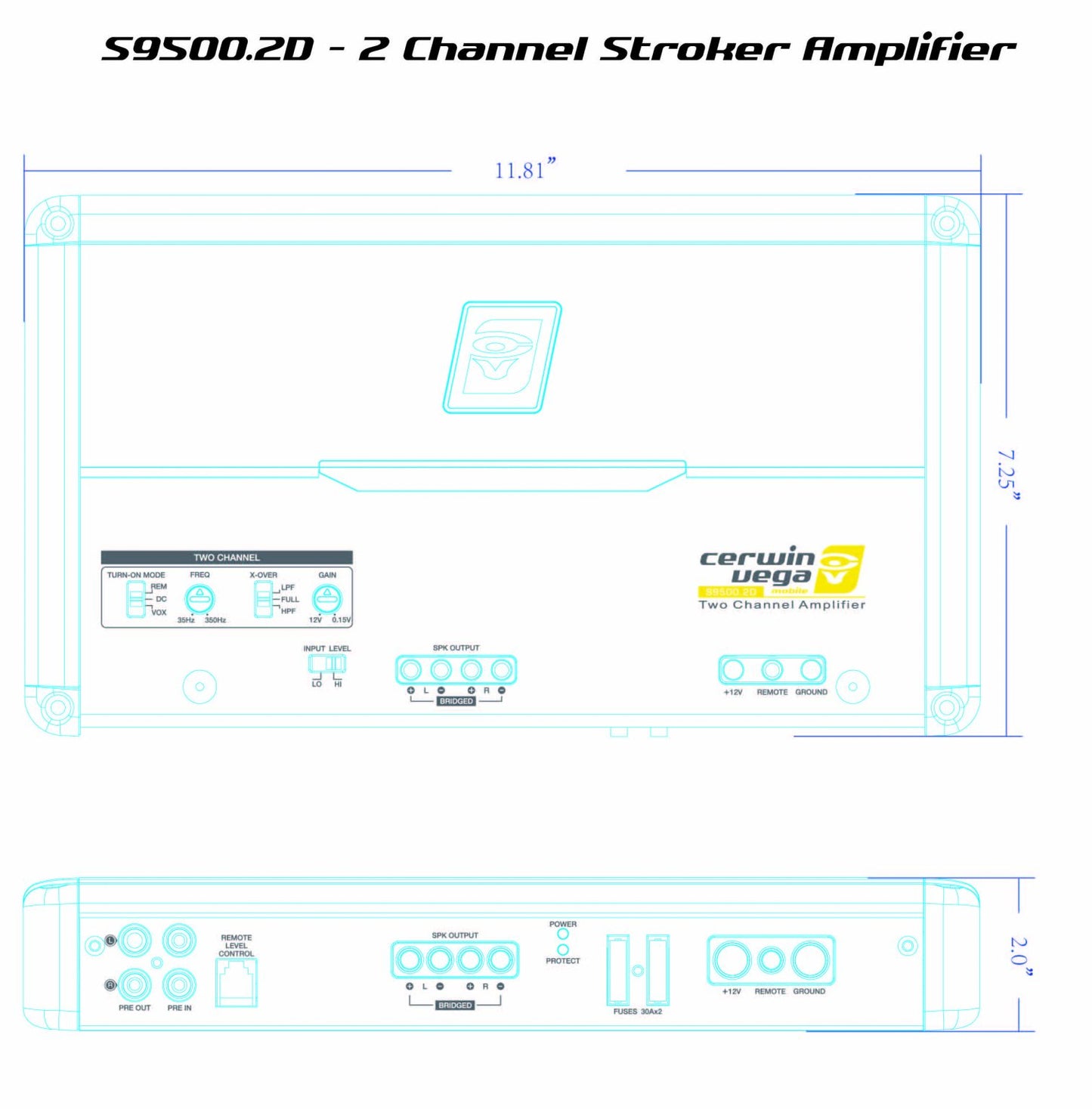

Dimensions: 11.81” x 7.25”x 2.0”( 299.974mm x 184.2 mm x 50.8mm)
