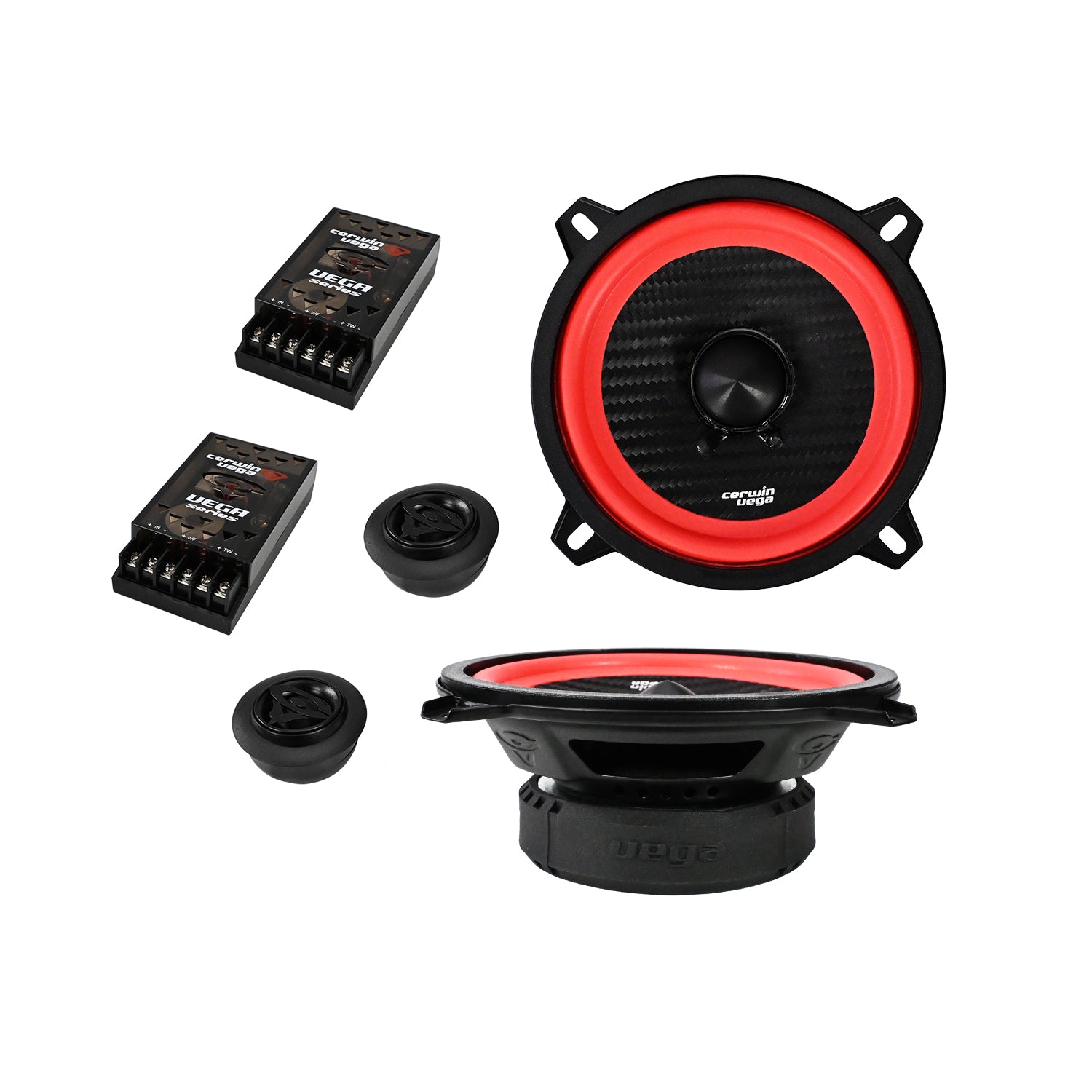

Vega V525C – 5.25" 2-Way Component Full Range Speaker System (4Ω)
Upgrade your vehicle’s sound system with the Cerwin-Vega V525C 5.25" 2-Way Component Full Range Speaker System (4Ω), engineered to deliver powerful, accurate audio performance in vehicles requiring a compact speaker footprint. As part of the legendary Cerwin-Vega Vega Series, the V525C speakers provide exceptional clarity, dynamic mid-bass response, and crisp high frequencies, making them an ideal upgrade for factory audio systems.
The Cerwin-Vega V525C component speaker system features a high-performance 5.25-inch woofer paired with a 1-inch silk dome tweeter, creating a balanced 2-way component speaker design that separates high and low frequencies for improved sound staging and imaging. This configuration produces a more immersive listening experience with greater clarity compared to traditional coaxial speakers.
At the core of the woofer design is a hybrid carbon fiber and polypropylene cone, engineered for both strength and lightweight responsiveness. This advanced cone material ensures accurate midrange reproduction and punchy mid-bass while maintaining durability for long-term performance. The Santoprene™ rubber surround allows for increased cone excursion, delivering deeper bass and smoother sound even at higher volume levels.
To enhance sound dispersion and imaging, the woofer incorporates an integrated plastic phase plug, which helps improve time alignment and ensures more consistent sound throughout the vehicle’s interior. Powering the woofer is a high-performance strontium ferrite magnet, providing strong magnetic control and efficient sound output.

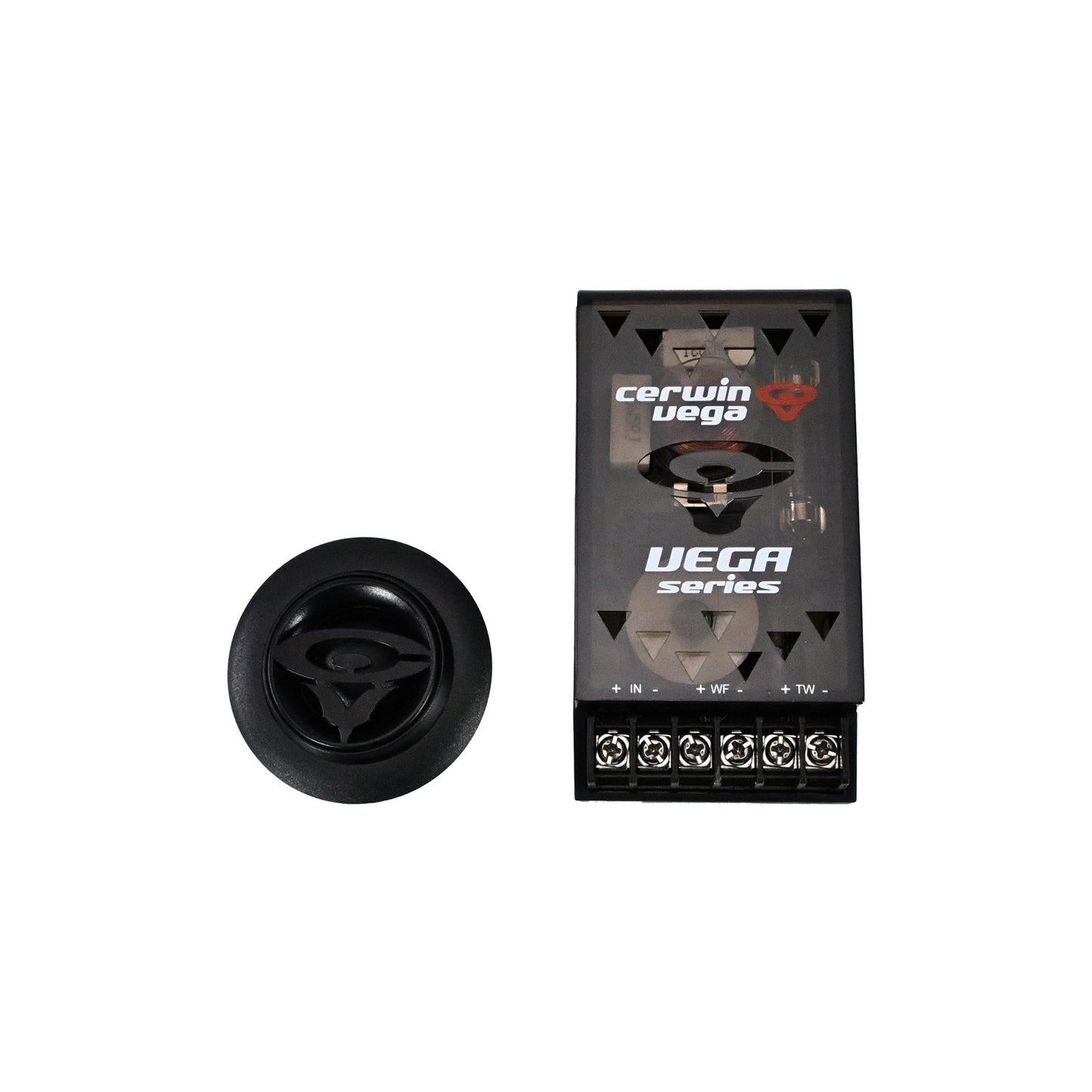

The dynamically balanced 1-inch silk dome tweeter delivers crisp, detailed high frequencies without harshness. The neodymium magnet structure enhances tweeter efficiency, ensuring bright and accurate highs that cut through the mix with precision.
For optimal performance, the V525C includes an integrated crossover network with tweeter protection, ensuring smooth frequency transitions while protecting the tweeter from distortion at higher listening levels.
The speakers are built on a powder-coated rigid stamped steel basket, reducing unwanted vibrations and providing a stable structure for clean sound reproduction.
Key Features:
• 5.25" 2-way component speaker system (4Ω)
• Hybrid carbon fiber/polypropylene woofer cone
• 1" silk dome tweeter with neodymium magnet
• Santoprene™ rubber surround for enhanced bass response
• Integrated crossover with tweeter protection
• Strontium ferrite magnet for strong mid-bass performance
• Rigid powder-coated stamped steel basket
The Cerwin-Vega V525C Vega Series speakers deliver powerful full-range sound, precise detail, and legendary Cerwin-Vega performance, making them the perfect upgrade for car audio enthusiasts seeking premium 5.25-inch component speakers.
Specifications
Power Ratting: 50W RMS/ 150W MAX
Frequency Response: 70Hz-20kHz
Sensitivity (1W/1M): 87 dB
Nominal impedance: 4 Ω
Free-Air Resonance(F0): 70 Hz
Mounting Depth: 45.3mm/1.78 in
Cut out Diameter: 112.5mm/4.43in
Over All Diameter: 129mm/5.08in
Over All Height: 51.4mm/2.02in
SPEAKER SIZE - 5.25”
SPEAKER TYPE - COMPONENT SET
BI-AMPABLE YES
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - POLYPROPYLENE
DIAPHRAGM MATERIAL - SILK
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - WOOFER FERRITE / TWEETER NEODYMIUM
SURROUND MATERIAL - SANTOPRENE
CROSSOVER INCLUDED - YES - EXTERNAL
