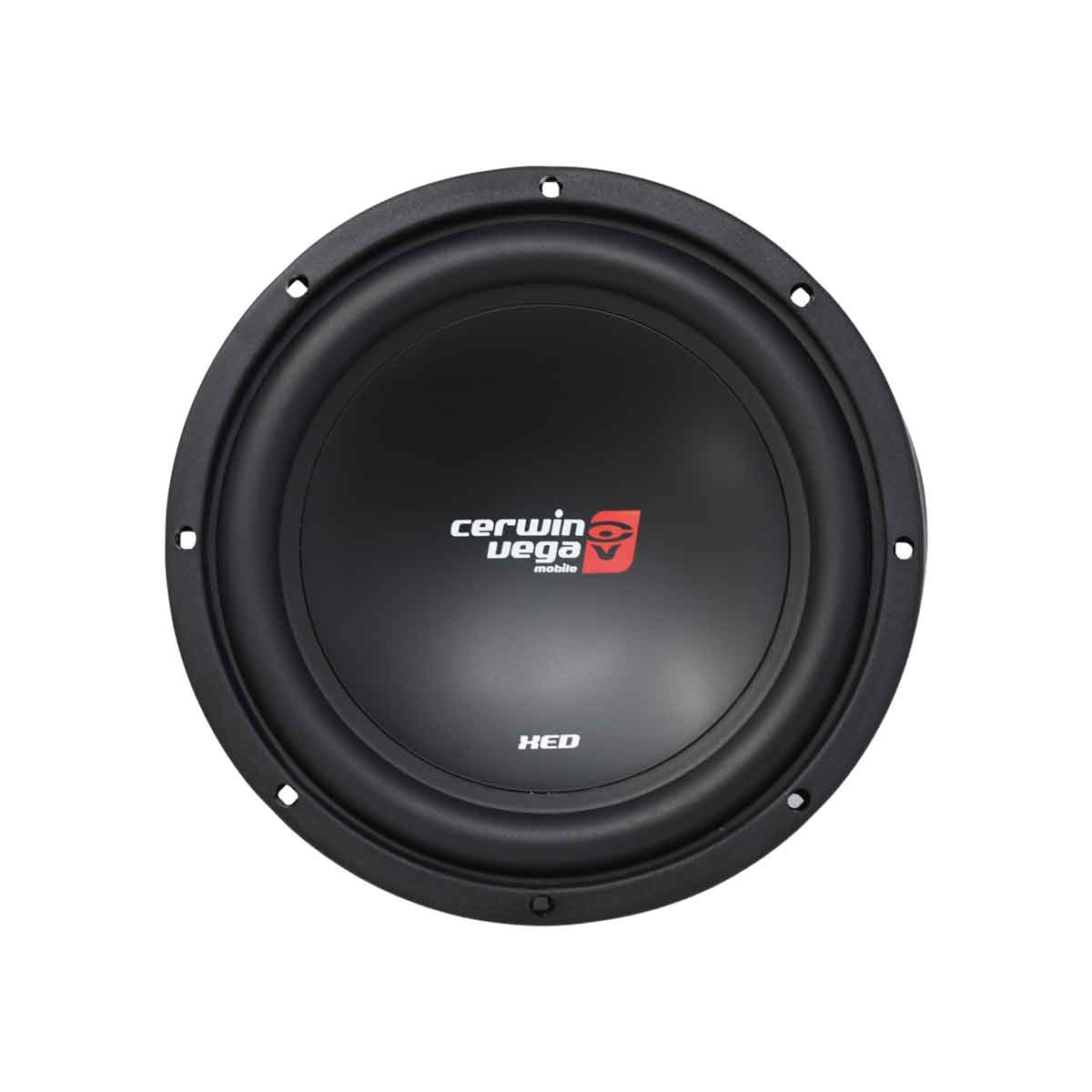

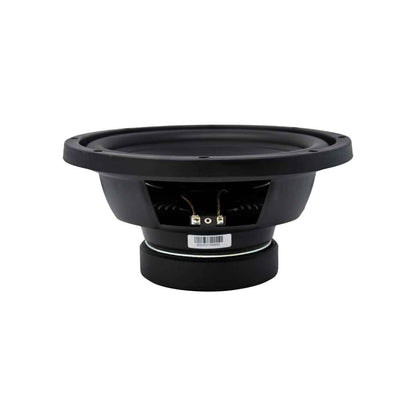

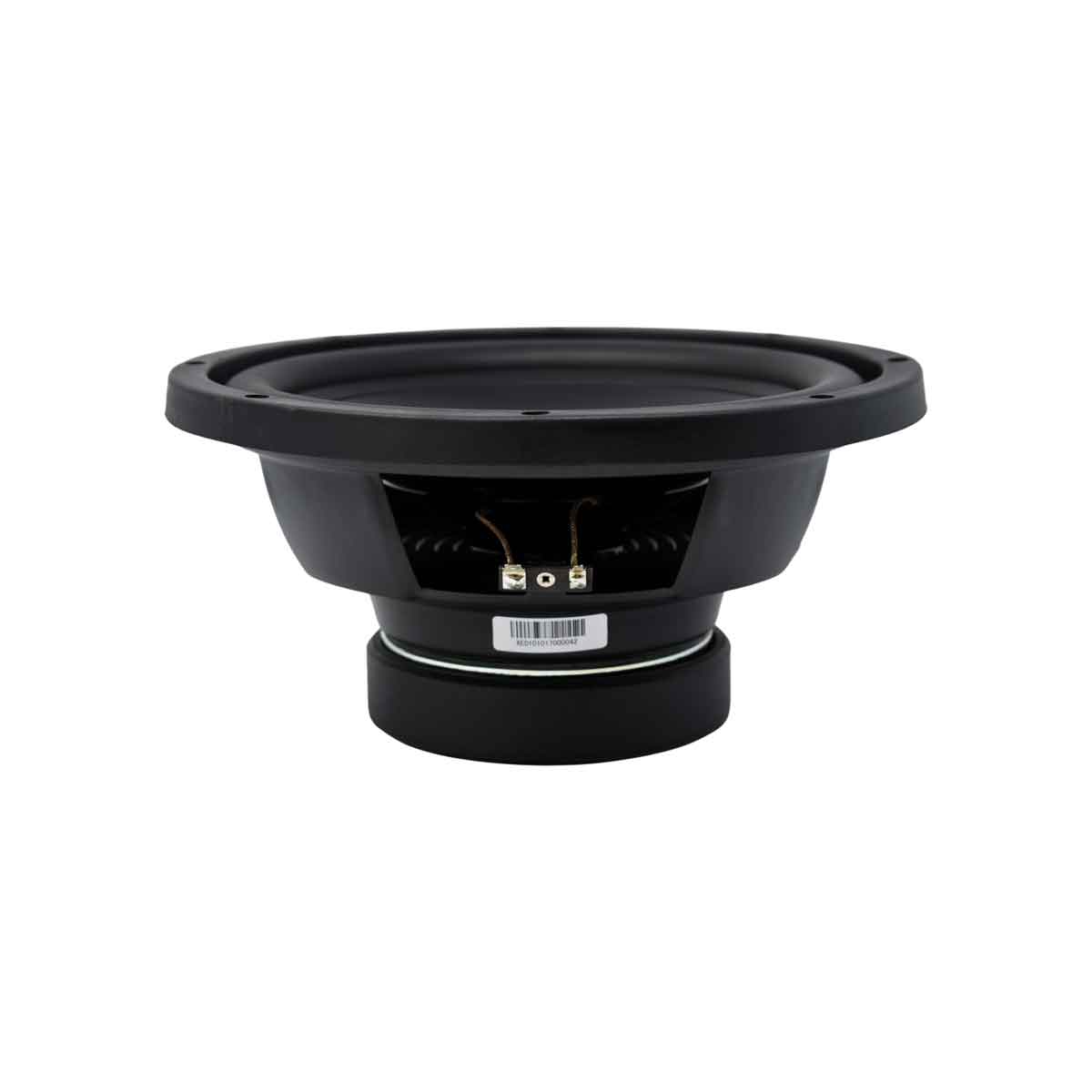

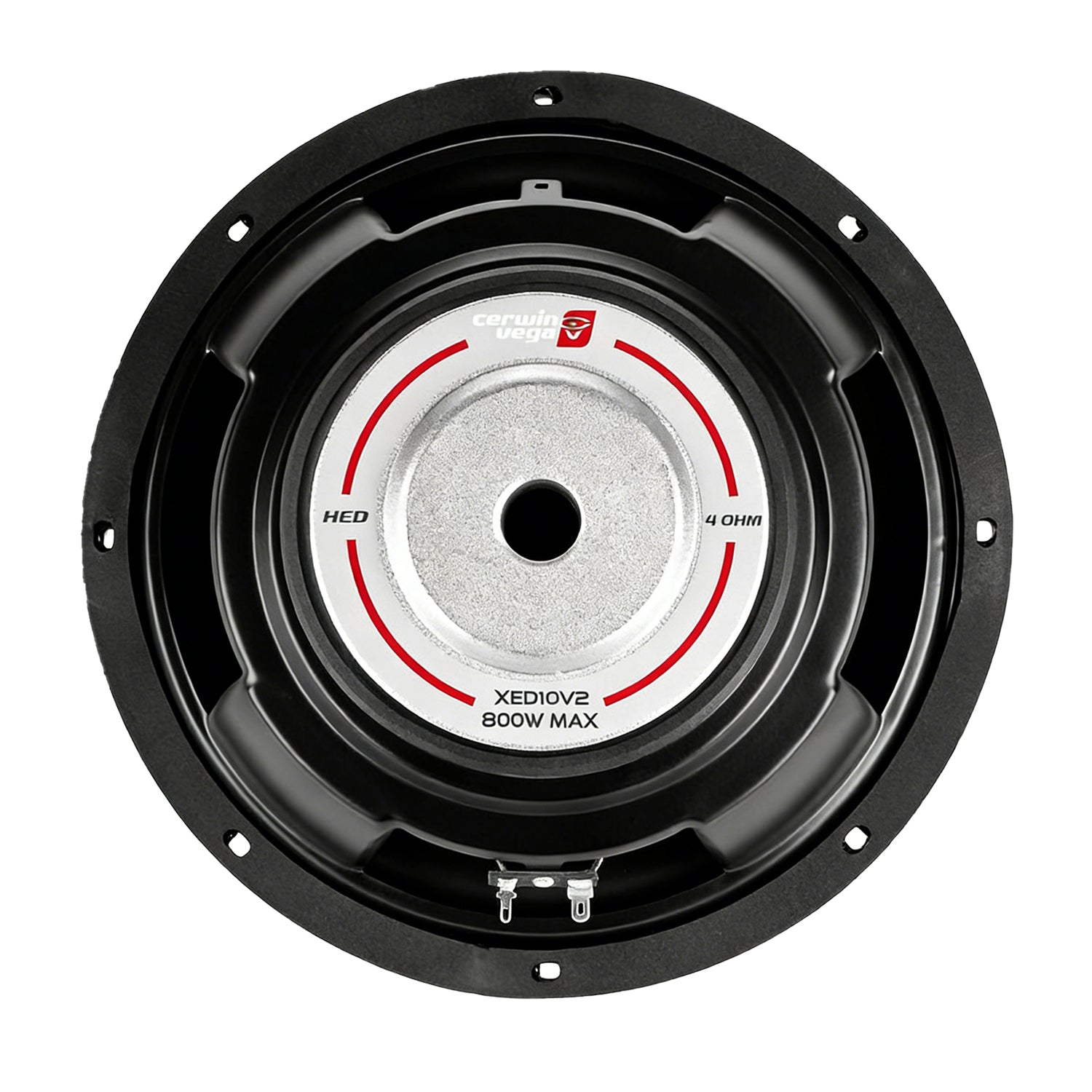

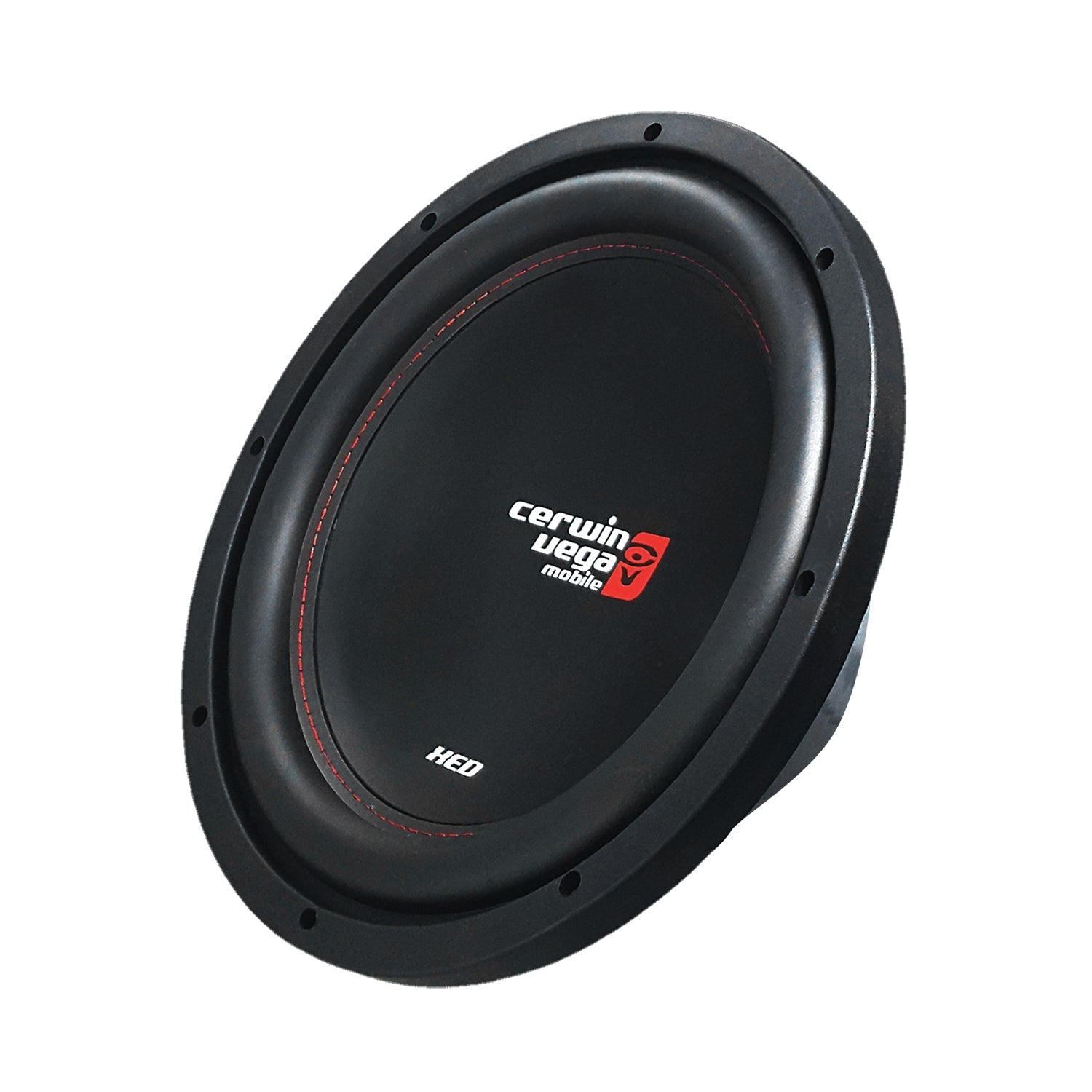

10” Xtreme-Energy Design SVC Subwoofer (4Ω) - XED10V2
SKU:XED10V2
Couldn't load pickup availability
Overview

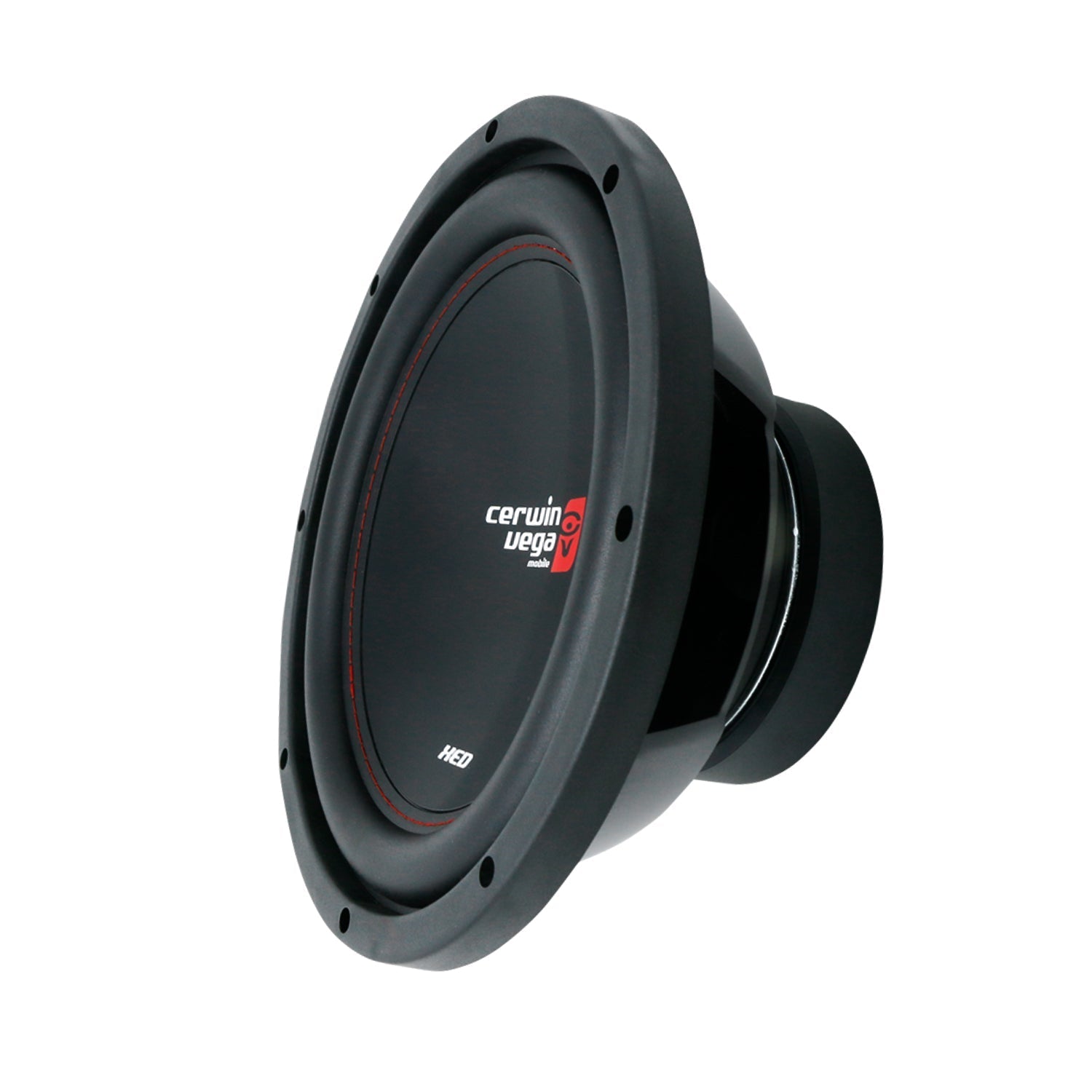

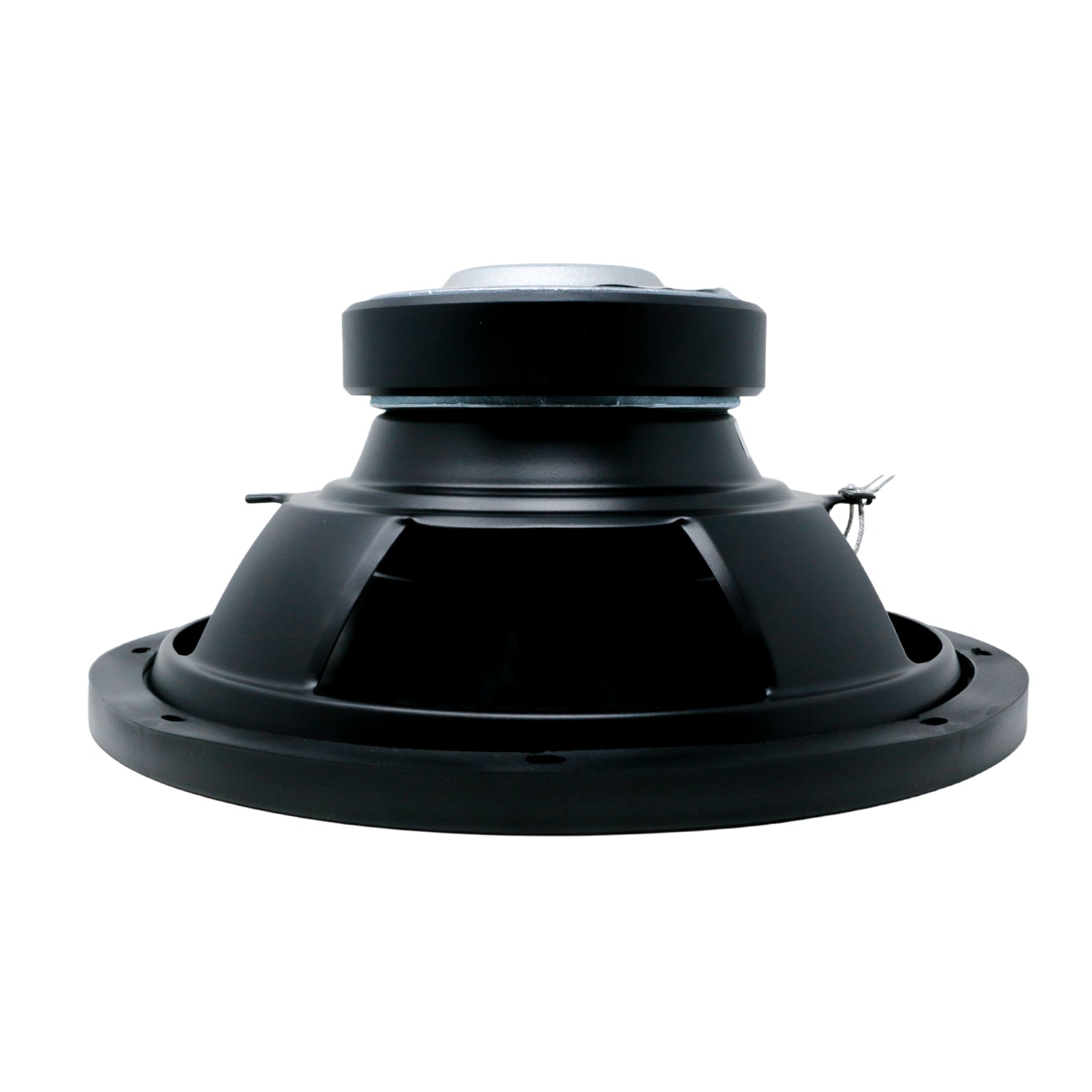

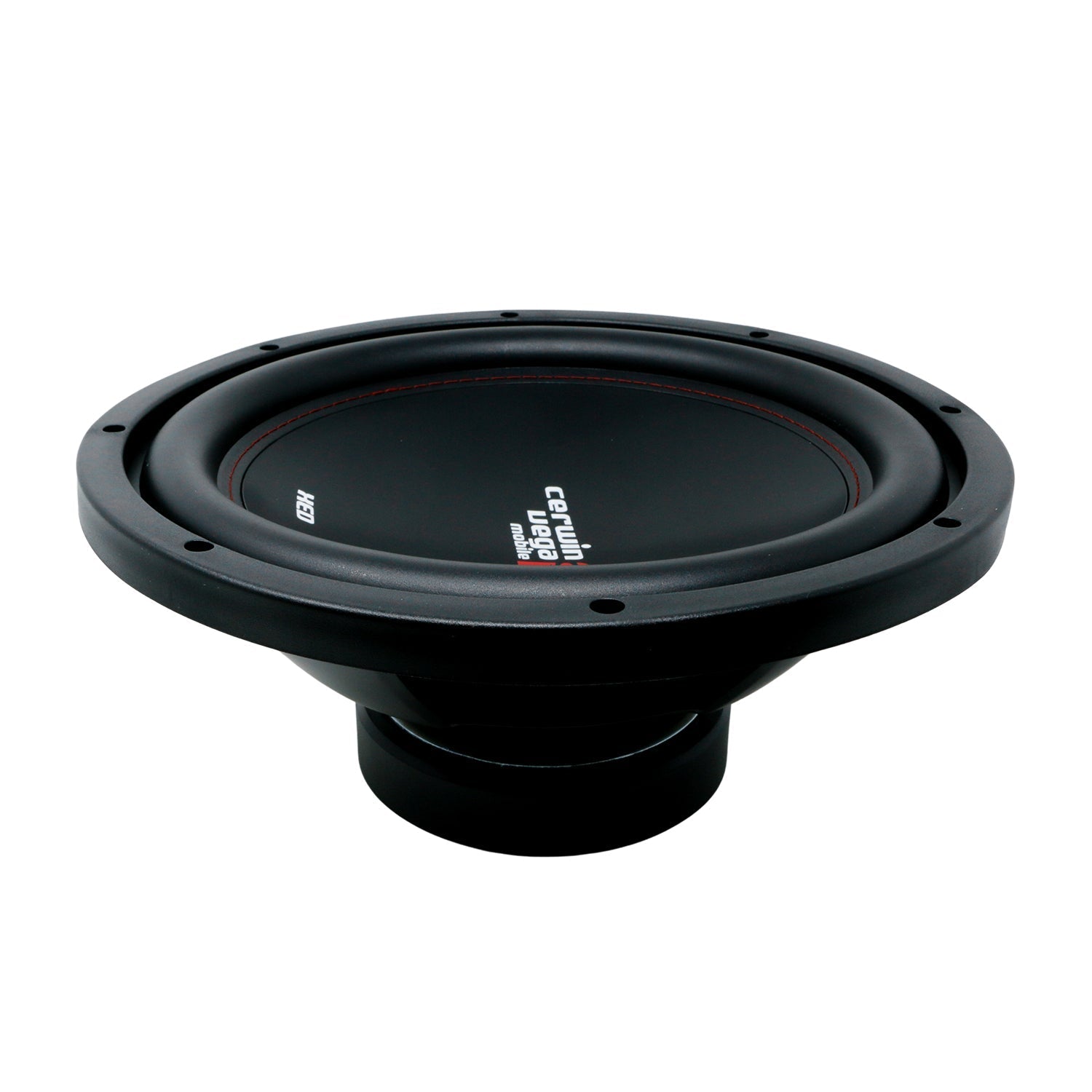

XED10V2 - 10” Xtreme-Energy Design SVC Subwoofer (4Ω)
Description:
Cerwin Vega Subwoofers are renowned for producing high-quality subwoofers that are favored by car audio enthusiasts for their durability, power handling, and exceptional sound performance. Cerwin Vega subwoofers combine advanced engineering with high-quality materials to deliver powerful and reliable bass performance, making them a top choice for car audio enthusiasts looking to enhance their audio experience. 2 Ohm or 4 Ohm Configuration, these subwoofers are available in different impedance configurations (2 ohm or 4 ohm), providing flexibility for various wiring setups and compatibility with different amplifiers. This allows you to optimize your system for maximum performance.
XED Series Subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass.
Specifications
THIELE/SMALL PARAMETERS
- Power: 125W RMS/8000 MAX
- SPL(dB): 85.5
- Re(Ω): 3.9
- Qms: 10.06
- Qes: 0.62
- Qts: 0.62
- Fs(Hz): 35.0
- Vas(L): 33.8
- Cms(mm/N): 0.219
- Mms(g): 94.3
- Sd(cm²): 0.033
- BL(T*M): 10.974
- Xmax(mm): 12.8
ENCLOSURES
Sealed
- VB (ft³): 0.88
- F3 (Hz): 32
- QTC: 0.91
- Pe(W): 800
Vented
- VB (ft³): 1.25
- Fb(Hz): 38
- F3 (Hz): 32
- Port (Dia. x Length): 4" x 15.75"
- Pe(W): 800
Features
- Parabolic Polypropylene Cone
- Unique Foam Blend - High Roll Surround
- Vented Pole Piece
- Vented Basket For Cooler Voice Coil Temperature
- Bumped Back Plate For Maximum Excursion
- 1-year Manufacturer's Warranty
Measurements
Product Manuals

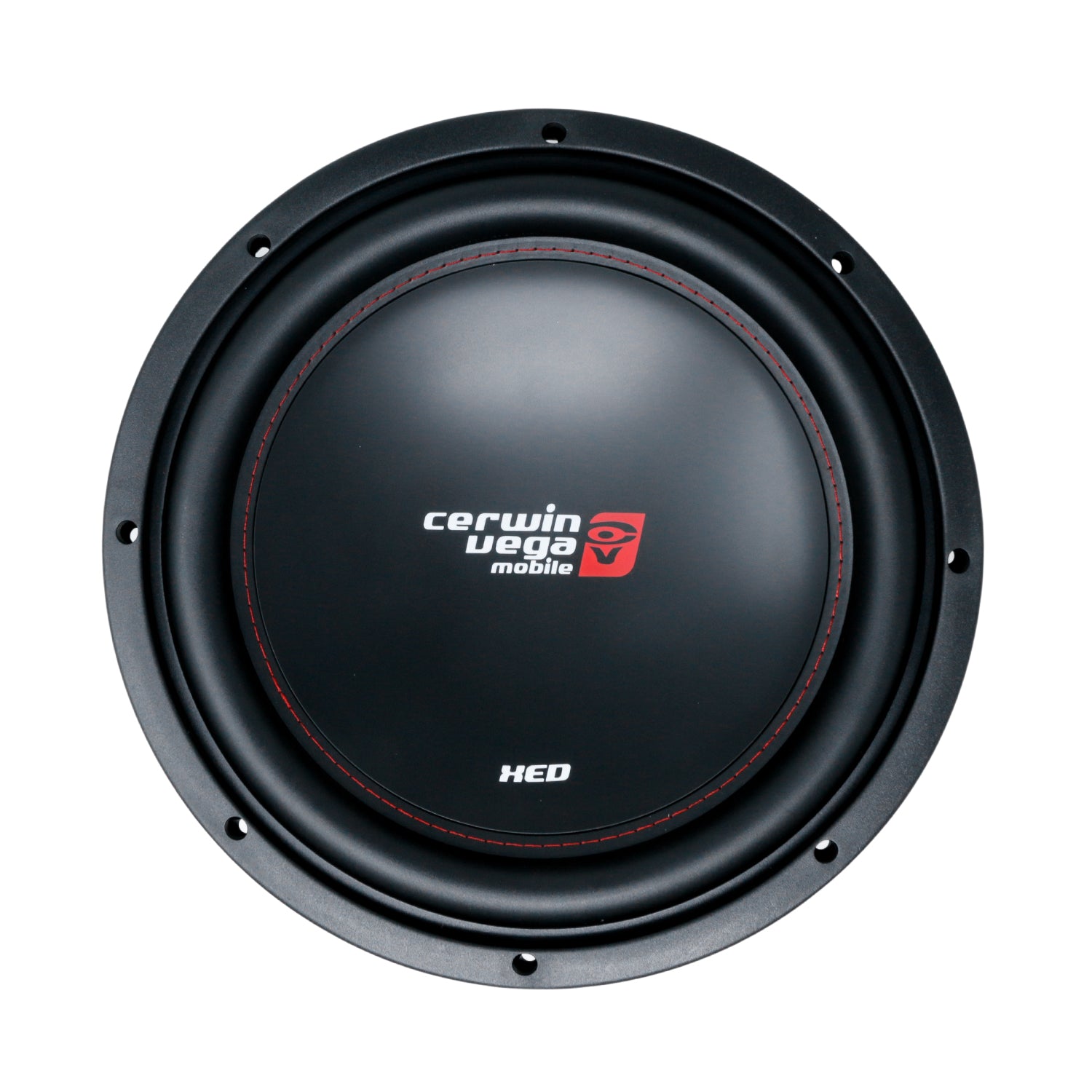

XED Series Subwoofers
Built to handle substantial power, perfect for high-output applications and delivering impactful bass

Engineered to manage high wattage without distortion
Ensuring clean and powerful bass for your audio experience.
