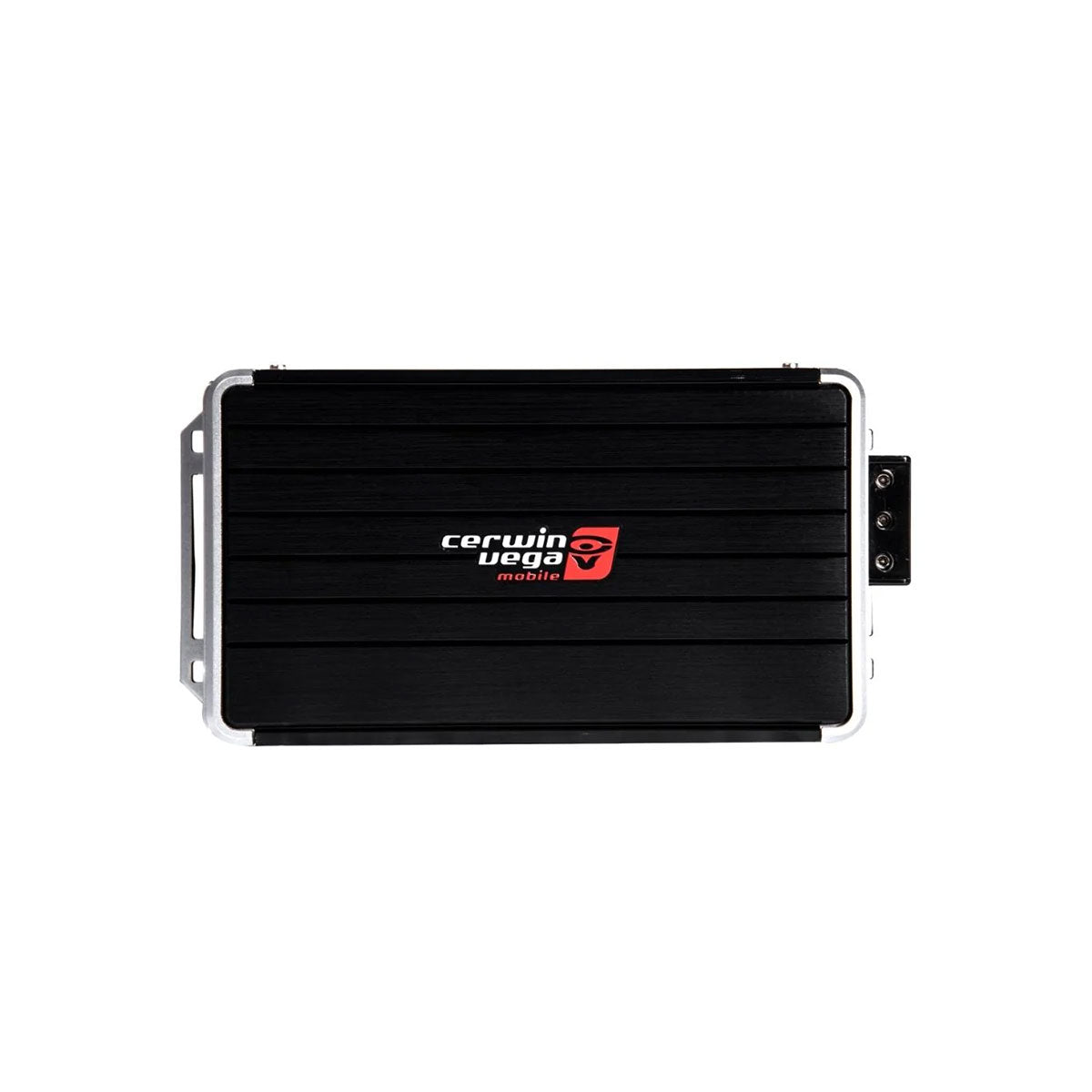

  • The Stealth Bomber Class-D B52 by Cerwin-Vega Mobile features a sleek, black rectangular design with rounded silver edges and a ribbed top. The front face includes multiple input/output jacks, while a red "corzus" logo sits on top. Its modern look is reminiscent of its namesake stealth bomber.

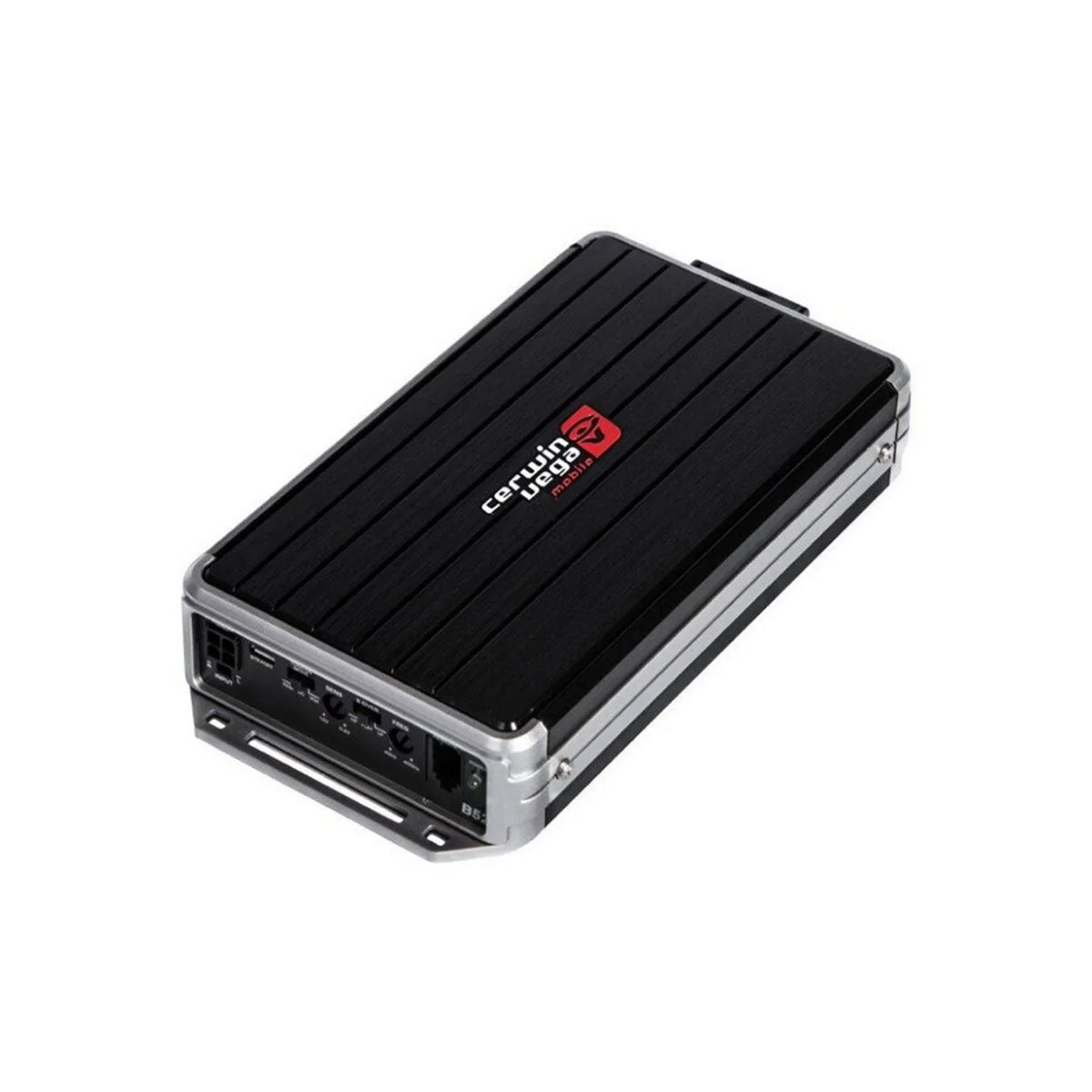

  • The Stealth Bomber Class-D 2 Channel Digital Amplifier-B52 features a black rectangular design like a Stealth Bomber, boasting a ribbed metal frame with silver edges. It displays the Cerwin-Vega Mobile logo in red and white on top, plus control knobs and input/output ports on the front panel.
  • The black, rectangular Stealth Bomber Class-D 2 Channel Digital Amplifier-B52 by Cerwin-Vega Mobile showcases a ribbed surface and silver edges with a central logo. Its compact design includes side mounting brackets and right-side connection ports, all set against a white background.

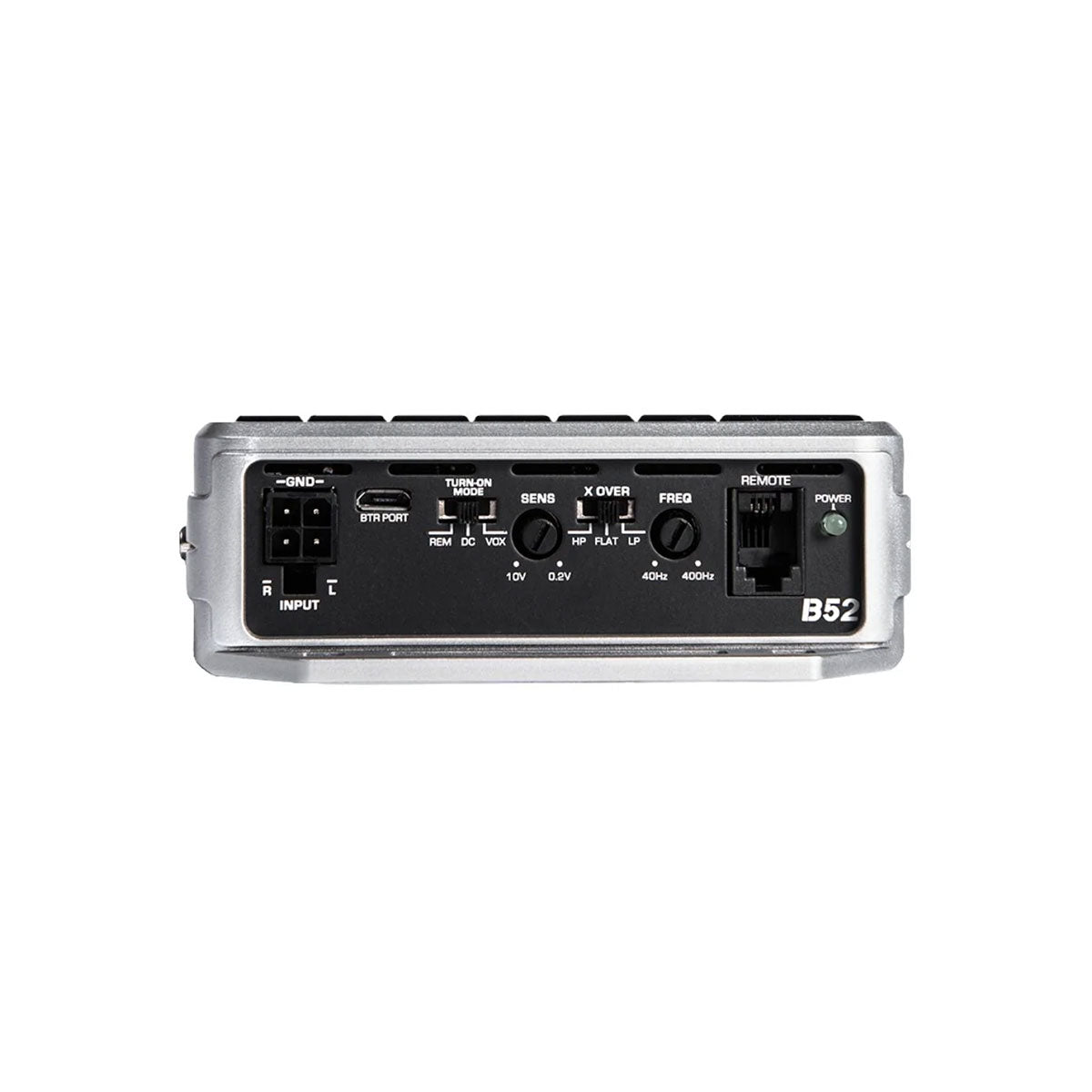

  • Close-up of the Stealth Bomber Class-D 2 Channel Digital Amplifier-B52, featuring a black control panel with power indicator, gain, sensitivity, crossover controls, frequency dials, and well-organized input ports within a sleek metallic casing.

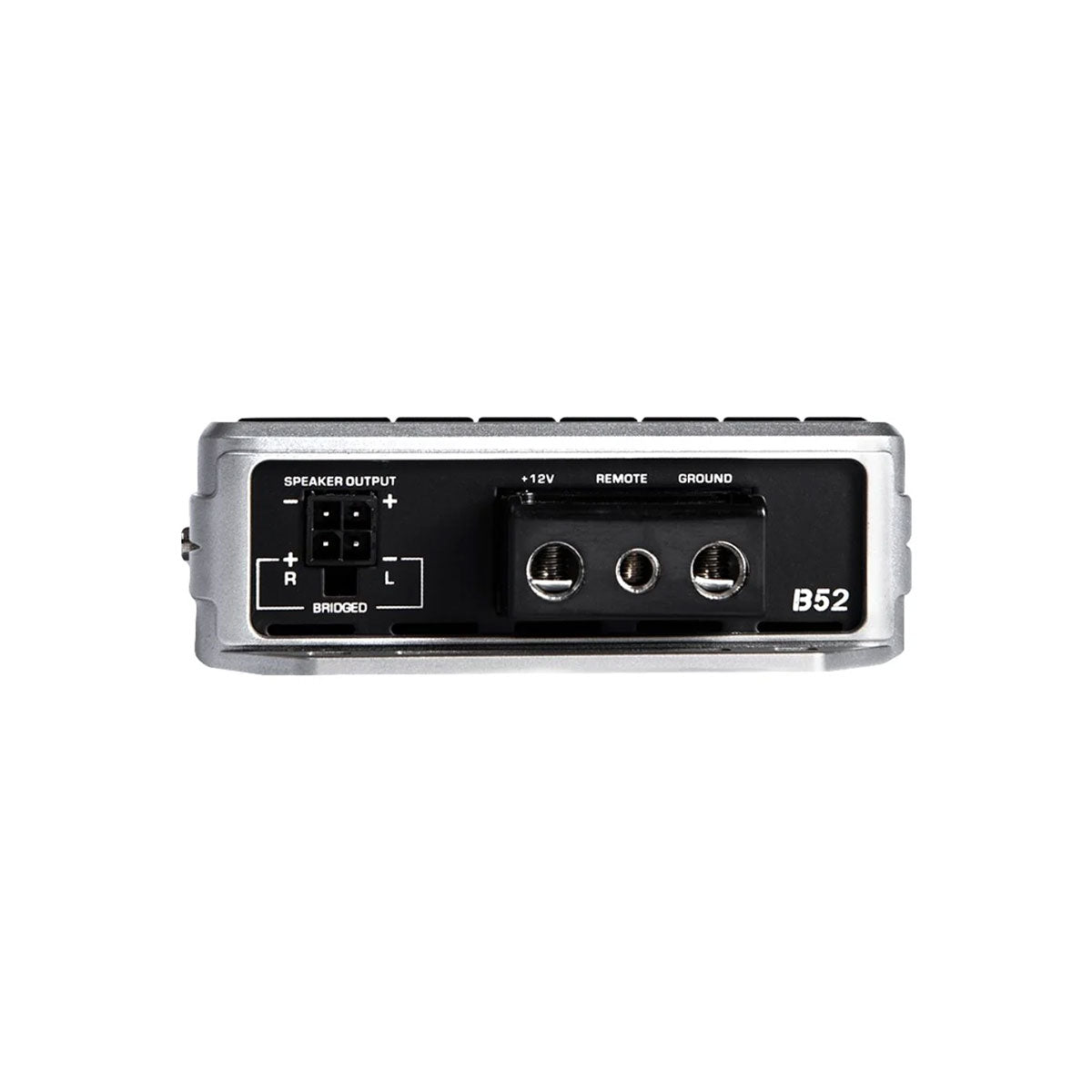

  • Close-up of the Stealth Bomber Class-D 2 Channel Digital Amplifier-B52 by Cerwin-Vega Mobile. The sleek silver and black design resembles a stealth bomber, featuring three metal input terminals labeled +12V, Remote, Ground, with a bridged speaker output diagram.

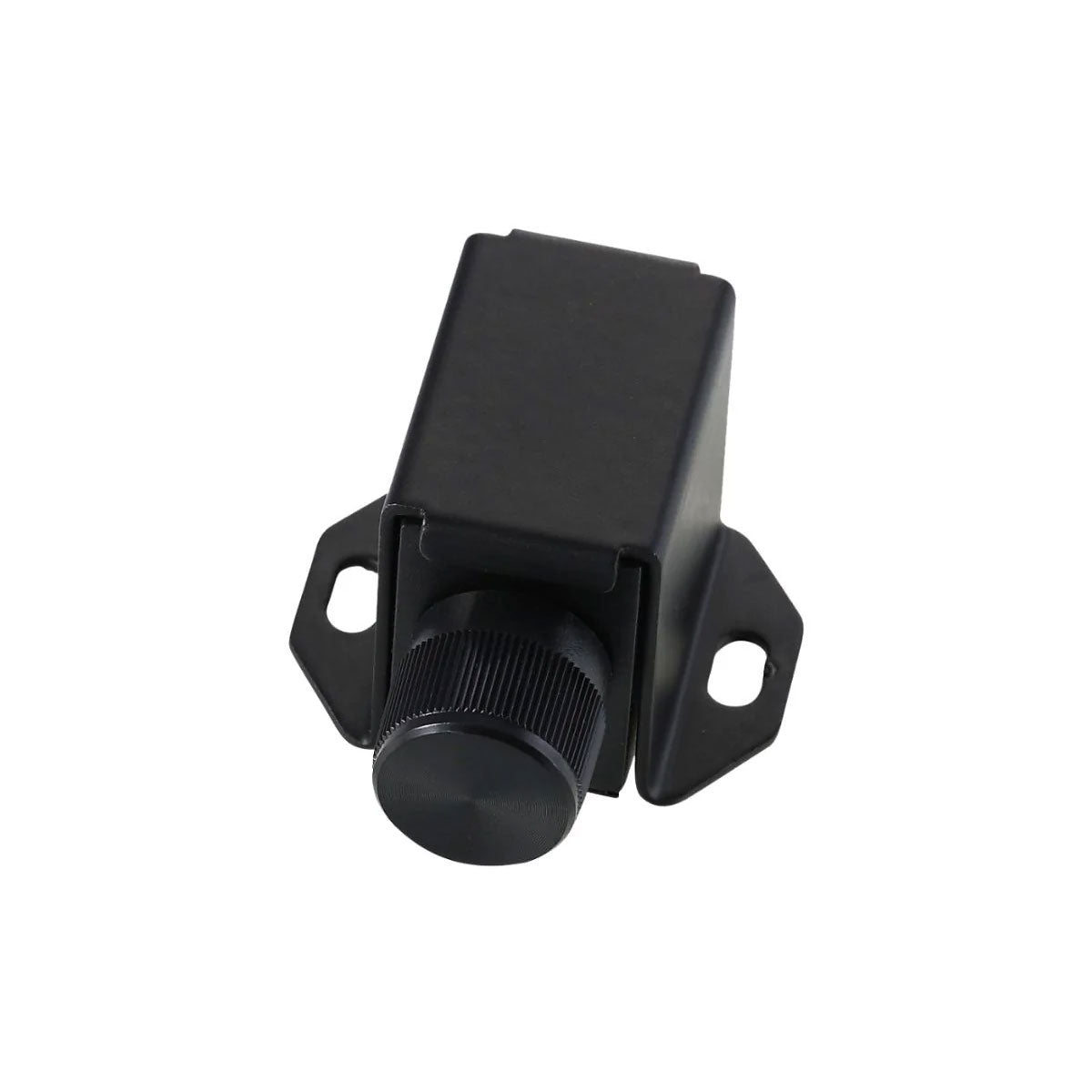

  • The Stealth Bomber Class-D 2 Channel Digital Amplifier-B52 is a black, rectangular electronic component featuring a cylindrical knob with a textured grip reminiscent of Cerwin-Vega Mobile. It includes mounting brackets for secure installation and functions as a compact control dial.

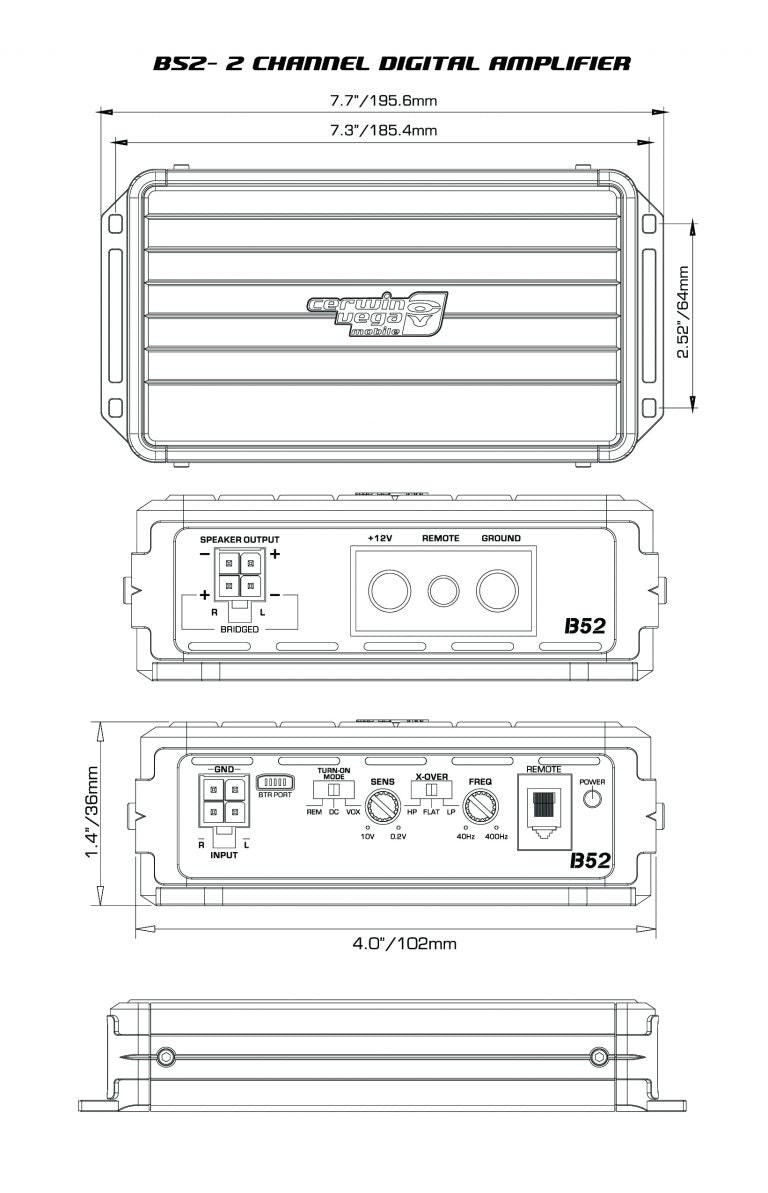

  • The diagram features the Stealth Bomber Class-D 2 Channel Digital Amplifier-B52, showcasing a top view with dimensions of 7.7" x 3.5". Side views display connection ports, dials, and labeled sections for breaker output, power, remote, and ground. Bottom view highlights ports and modes with measurements in inches and mm.
1 7

Stealth Bomber 2-Channel Class-D Full Range Amplifier - B52

B52

$299.99 USD
$299.99 USD
Sale Sold out
Shipping calculated at checkout.
Size: 2 Channel

Overview

B52 - Stealth Bomber 2-Channel Class-D Full Range Amplifier

Cerwin-Vega Mobile Stealth Bomber Series Amplifiers – Compact. Powerful. Revolutionary.

The Stealth Bomber Series Amplifiers embody the perfect fusion of sleek design and unmatched power, making them a cornerstone of the Cerwin-Vega Mobile lineup. Designed for seamless integration, these ultra-compact amplifiers are proof that big sound can come in small packages.

High-Tech Innovation Meets Raw Power

  • Updated High-Efficiency Full-Range Digital Topology: Delivers unparalleled sound clarity with maximum energy efficiency.
  • Class D IR Chipset with Direct-FET Power MOSFET Output: Ensures precision and performance for every beat.

Built for Durability and Precision

  • Ultra-Compact High-Density Aluminum Alloy Chassis: Offers robust protection and optimal heat dissipation in a sleek form factor.
  • Advanced Rollback Power/Thermal Protection: Keeps your system running at peak performance, even under the most demanding conditions.

Versatility at Your Fingertips

  • Switchable 12dB HP/FLAT/LP Crossovers: Tailor your audio experience with precise control over high-pass, low-pass, or flat outputs.
  • VEGA Bass Boost: Elevate your low-end frequencies with a dynamic bass enhancement feature.
  • Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with a variety of systems for effortless operation.

Why Choose Stealth Bomber?

The Stealth Bomber Series Amplifiers pack monstrous power into a compact design, making them the ideal choice for enthusiasts seeking an efficient, space-saving solution without compromising performance. Perfect for tight installations, these amps are engineered to deliver clean, distortion-free sound with explosive bass and dynamic clarity.

Performance That Soars Above the Rest

With Cerwin-Vega Mobile’s legacy of innovation and expertise, the Stealth Bomber Series is your ultimate audio companion for maximum impact in any vehicle.

Unleash the power. Command the clarity. Take your sound system to new heights with the Stealth Bomber Series.

POWER RATING

  • RMS Power (2Ω): 250W x 2
  • RMS Power (4Ω): 150W x 2
  • RMS Power Bridged 4Ω: 500W x 1

POWER SUPPLY

  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0V-17.0V (DC)
  • Idle Current: (0.7A)

DISTORTION

  • THD 4 (1KHz @4Ω): 0.05%
  • S/N Ratio (A weighted @1W): -85 dBA
  • S/N Ratio (A weighted @FP): -101.1 dBA

INPUT SENSITIVITY

  • Low Input Level: 200mV-10.0V
  • High Input Level: 200mV-10.0V

INPUT IMPEDANCE

  • Low Input Level: 20 KΩ
  • High Input Level: 20 KΩ

OUTPUT STAGE

  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-35KHz

CROSSOVER (-12/-24 dB/Oct)

  • Variable High-Pass:
  • Variable Low-Pass: 40Hz-400Hz
  • Variable Sub-Sonic: 10Hz-55Hz

FUSE RATINGS

  • ATC: 25A

DIMENSIONS

  • L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm)

FEATURES

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4-Layer PCB Board
  • Water Resistant Conformal PCB Board Coating
  • 1-year Manufacturer's Warranty
  • MFR #: B52
View Product Details

Stealth Bomber series amplifiers have been the cornerstone of the Cerwin-Vega Mobile brand

Embodying power, precision, and reliability for car audio enthusiasts.

Don't be fooled by the sleek and compact design of Stealth Bomber series amplifiers

They ensure seamless installation while delivering monstrous power output.

Features

Product Comparison
The Stealth Bomber Class-D 4 Channel Digital Amplifier-B54 by Cerwin Vega is a black, rectangular car audio amplifier with silver edges. Its top has a red and white logo with the brand name "Cerwin Vega." The sides feature multiple connection ports and audio adjustment switches.
$329.99 USD
View Details

SPECS & DOWNLOADS

Customer Reviews

Based on 41 reviews
66%
(27)
5%
(2)
15%
(6)
5%
(2)
10%
(4)
j
jdsmith0524
Disappointed with CVM

Lots of ground loop noise with this little guy. Was so disappointed that I had to return it.

T
TEB
Would of been 5 stars

Not sure how or why but even though I had multiple fuses to protect the amp it blew a fuse then blew the speakers. I would buy again though but im insane i guess.

L
Lonnie Walker
That I ordered the wrong Amp.

I mailed the product back & I need the 4 channel B4

r
ruben reveles
Going to need another amp for subwoofer.

It’s great for 6 1/2in speakers nice clean sounds good clean Resonance through full spectrum of sound through a set of nice speakers. not low end sounds. It will not push a sub for your life. all the interior speakers will out do the sub for low end. If you want bass get a different amp

k
kenneth ward
Do not buy

The is the worse amp I ever brought. DO NOT buy. It keeps cutting on & off. Due to Covid I just recently had it professional installed and it’s crap.
