Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with DirectFET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.
Notify me when this product is in stock:
Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with DirectFET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.
| Amplifier | 5 Channel |
|---|---|
| RMS Power Rating | 950W RMS |
| MAX Power Rating | 1900 W MAX |
| RMS Power(2Ω) | 150 W x 4/350 W x 1 |
| RMS Power (4Ω) | 80W x 4/200W x 1 |
| RMS Bridge (mono 1Ω) | N/A |
| RMS Bridge (mono 2Ω) | N/A |
| RMS Bridge (mono 4Ω) | 300 W x 2/200 W x 1 |
| Topology | Full-Range Class D |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC-17.0VDC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz@4Ω) | 0.5% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity Low | 200mV – 10.0V |
| Input Sensitivity High | 200mV – 10.0V |
| Input Impedance - Low Input Level | 20 kΩ |
| Input Impedance - AUX Input Level | 20 kΩ |
| Output Impedance | 0.018 Ω |
| Damping Factor (50Hz@4Ω) | >70 |
| Bandwidth (-3dB) | 10Hz-35Hz |
| Crossover (-12 dB/ Oct) Variable High-Pass | Flat or Fixed 70Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | N/A |
| FUSE Ratings - ATC | 60A |

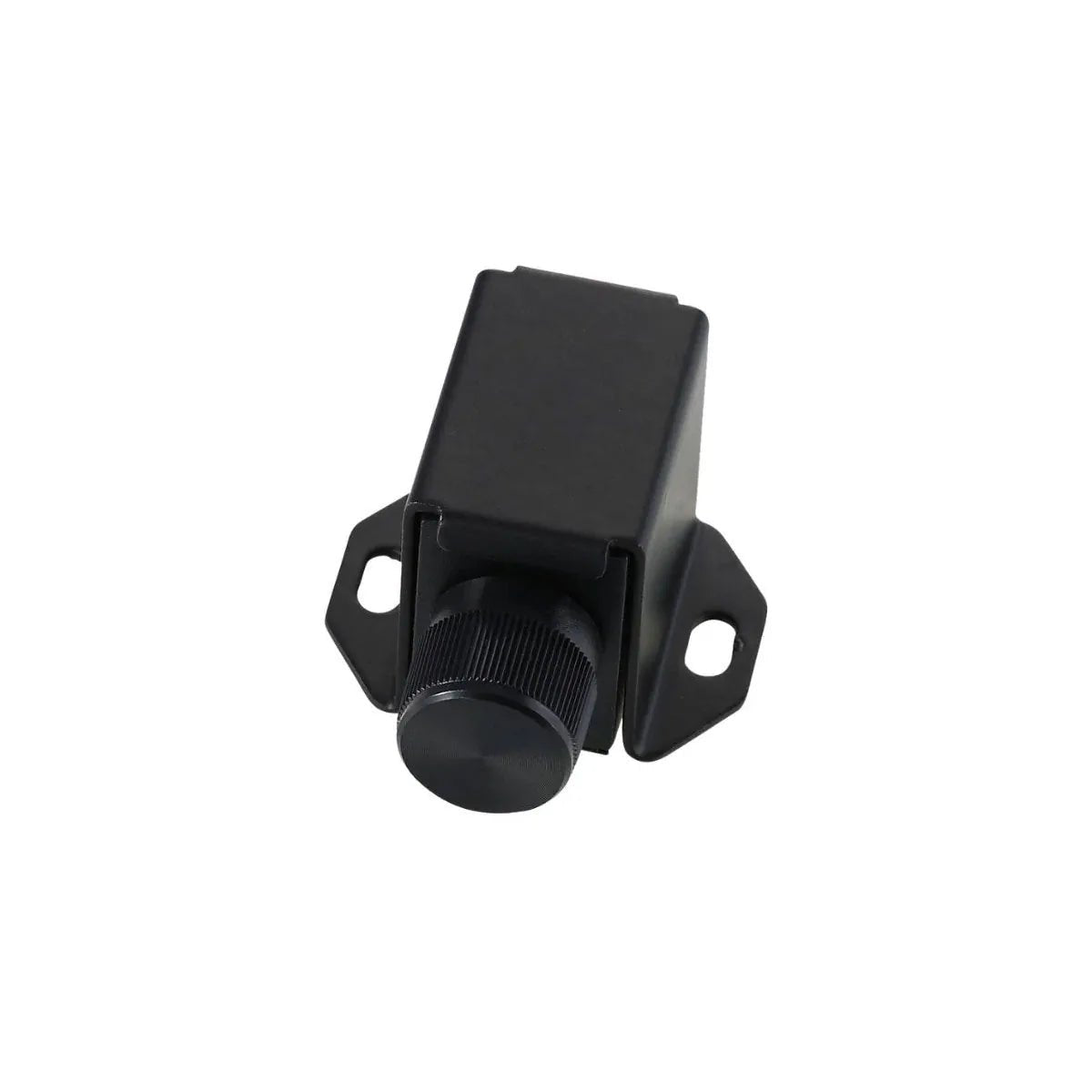

| Remote | Included |
| Dimension - Length x Width x Height - Inches(mm) | 10.45” x 4.0” x 1.4” (265.6 x 102 x 36 mm) |
