VEGA 950W RMS Full Range Class-D Digital 5 Channel Amplifier

Updated High Efficiency Full Range Digital Topology. Enhanced Power IR Digital Chipset. Conformal-Coated 4-layer PCB. Remote Turn On Configurator - REM/DC/VOX. Boosted RFI (Radio Frequency Interference) Rejection. Compact Matching Heatsink Platform Dimensions. Accepts HI and LO Level Input Up To 12V. Water Resistant.

$529.99
Availability: Out of stock
SKU
VCU85

Notify me when this product is in stock:

VCU85 - VEGA 950W Full Range Class-D Digital 5 Channel Amplifier

Description

VEGA series amplifiers have been the staple of the Cerwin-Vega Mobile brand. VEGA series amplifiers have always been known to be disturbing the peace! Its sleek and compact design makes installation seamless but doesn’t let its dimensions fool you as VEGA series amplifiers generate monstrous power output. Conformal-coated circuit boards keep this amplifier series water-resistant and ideal for outdoor weather use.

Features:

  • 5 Channel Full Range Digital Amplifier
  • 165W x 4CH + 375W @ 2Ω/ 100W x 4CH + 250W @ 4Ω
  • 330W x 2CH @ 4Ω Bridged (Front & Rear) RMS Power Output
  • Input Sensitivity: 0.2-10 Volt
  • Crossover Filter :
    • Fixed 75Hz (HPF), 12dB Per Octave Slope (Front & Rear)
    • 25-250Hz (LPF), 24dB Per Octave Slope (Sub)
  • Frequency Response: 10-33KHz
  • Selectable REM / VOX / DC Turn On Modes
  • Selectable 2CH / 5CH Input Modes
  • Independent Front & Rear & Sub Inputs

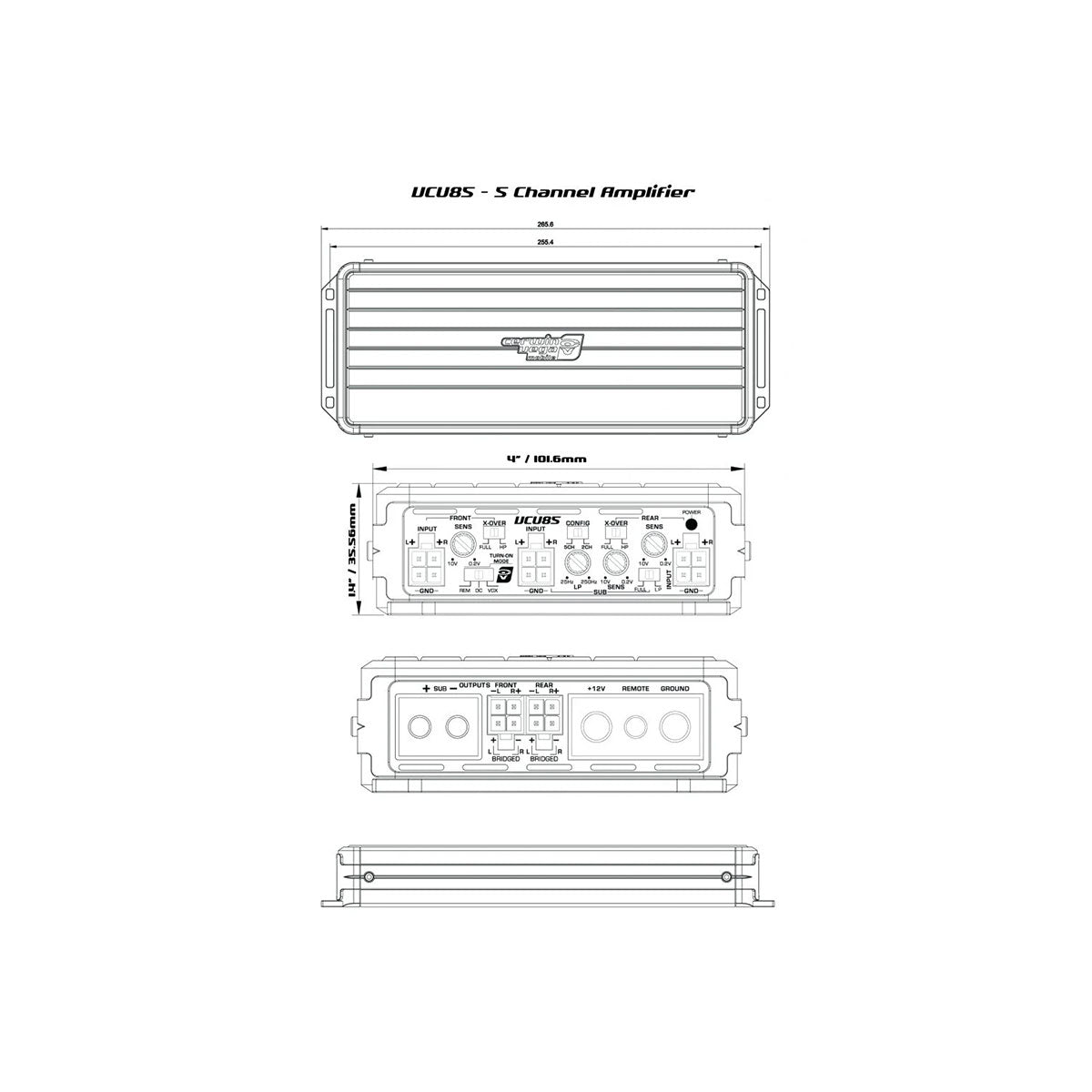

  • Dimensions: 10.46” x 4.0” x 1.42” (265.6 x 102 x 36 mm)
More Information
Amplifier5 Channel
RMS Power Rating950 W RMS
MAX Power Rating1900 W MAX
RMS Power(2Ω)150 W x 4 / 350 W x 1
RMS Power (4Ω)80 W x 4 / 200 W x 1
RMS Bridge (mono 1Ω)N/A
RMS Bridge (mono 2Ω)N/A
RMS Bridge (mono 4Ω)300 W x 2 / 200 W x 1
Types5-Channel
TopologyFull-Range Class D
Power SupplyFull PWM
Power Supply (Threshold)10.0VDC – 17.0VDC
Idle Current(0.7A)
Distortion - THD (1KHz@4Ω)(0.5%)
Distortion - S/N Ratio (A weight @ 1W)-85dBA
Distortion - S/N Ratio (A weight @ FP)-101.1dBA
Input Sensitivity Low200mV – 10.0V
Input Sensitivity High200mV – 10.0V
Input Impedance - Low Input Level20 KΩ
Input Impedance - AUX Input Level20 KΩ
Output Impedance0.018 Ω
Damping Factor (50Hz@4Ω)>70
Bandwidth (-3dB)10Hz-35Hz
Crossover (-12 dB/ Oct) Variable High-PassFlat or Fixed 70Hz
Crossover (-12 dB/ Oct) Variable Low-Pass40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-SonicN/A
FUSE Ratings - ATC60A
Dimension - Length x Width x Height - Inches(mm)10.45” x 4.02” x 1.4” (265.6 x 102 x 36 mm)
