Overview

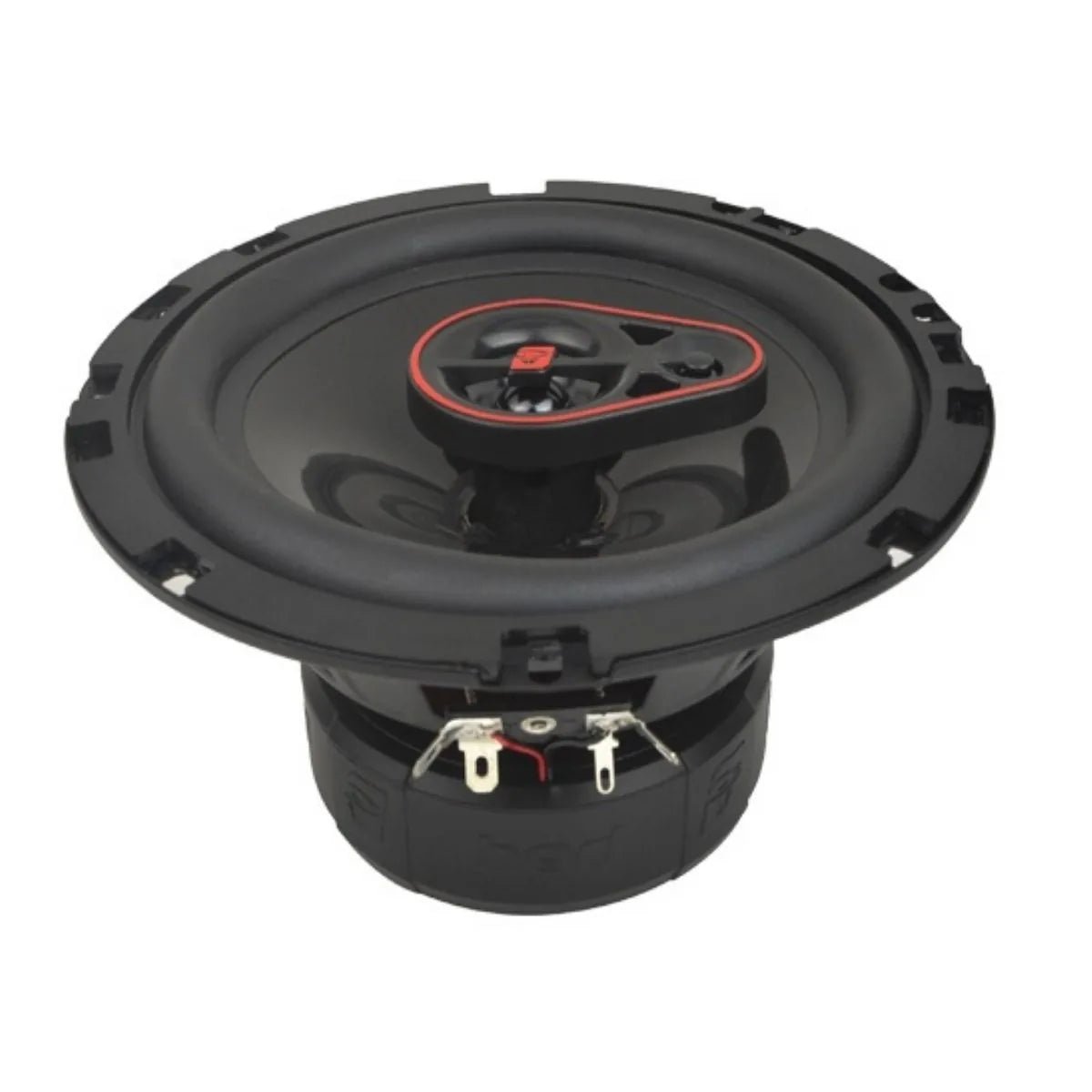

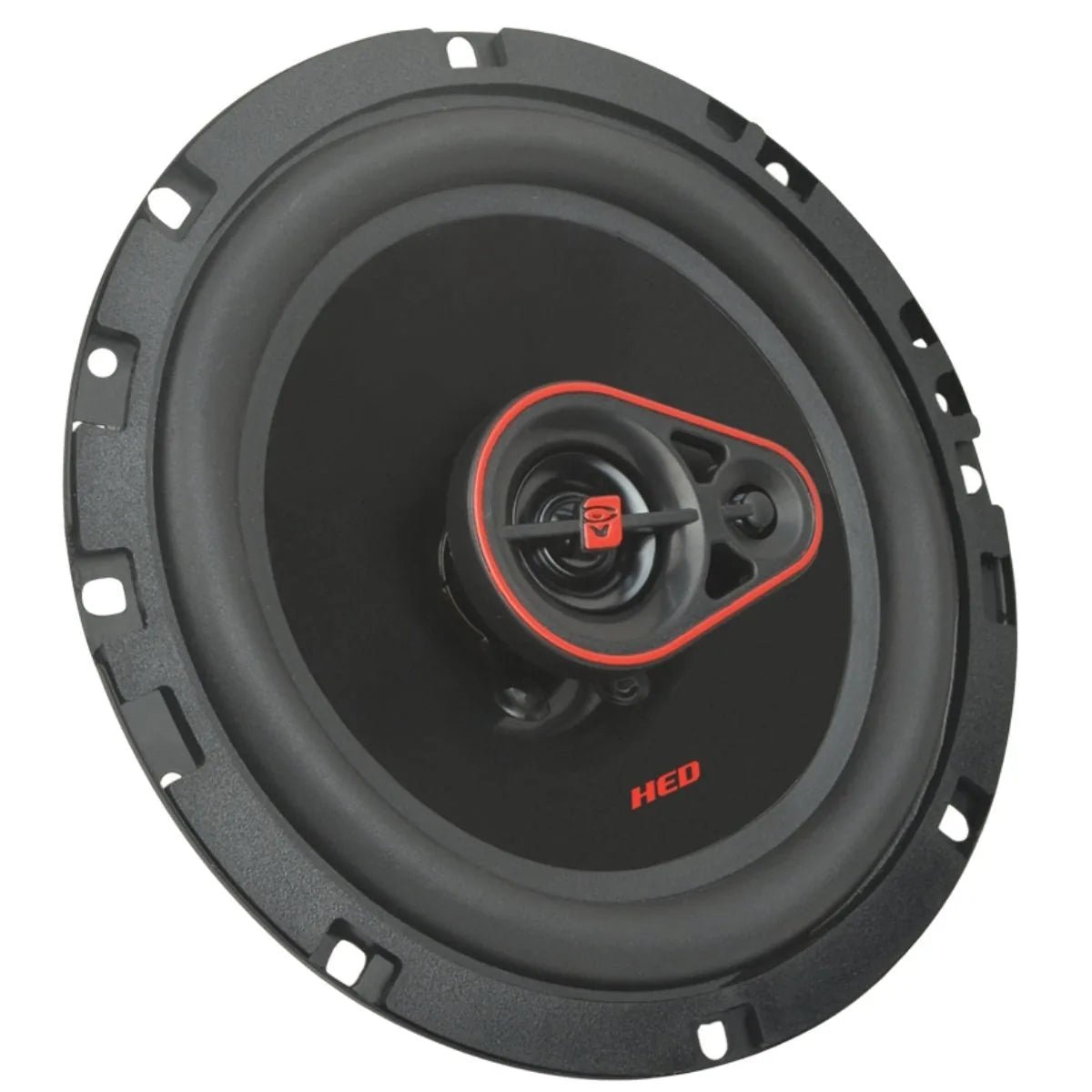

6.5" HED Series 3-Way Coaxial Speakers (4Ω)
Upgrade your vehicle’s sound system with the Cerwin-Vega H7653 6.5” HED Series 3-Way Coaxial Speakers (4Ω), engineered to deliver powerful audio output, enhanced clarity, and long-lasting durability. As part of the renowned Cerwin-Vega HED Series, these speakers provide an excellent upgrade over factory-installed components, delivering louder, cleaner sound that transforms your everyday driving experience.
The H7653 3-way coaxial speaker design features a 6.5-inch woofer, dedicated midrange driver, and high-frequency tweeter, creating a multi-driver system that produces balanced and detailed sound across the entire frequency spectrum. This advanced configuration ensures clear vocals, detailed instruments, and dynamic midrange performance, giving your music depth and accuracy.
With 60 watts RMS and up to 320 watts maximum power handling, the Cerwin-Vega H7653 speakers provide strong and consistent output while maintaining excellent sound clarity. Whether powered by a factory stereo or an aftermarket amplifier, these speakers deliver the loud, distortion-free performance that Cerwin-Vega is known for.
Durability is a key feature of the HED Series speaker construction. The H7653 speakers are built using a stamped steel frame, providing a rigid and stable platform for accurate sound reproduction and long-term reliability. The reinforced cone design enhances responsiveness while allowing the speaker to withstand demanding listening conditions.
High-frequency detail is produced by a balanced PEI black polypropylene dome tweeter, designed to deliver crisp, clear highs. Combined with the dedicated midrange driver, this 3-way configuration allows the speakers to produce exceptional clarity and improved separation between frequencies, creating a richer listening experience.
Key Features:
• 6.5” HED Series 3-way coaxial car speakers
• 60W RMS / 320W MAX power handling
• 4-ohm impedance compatible with most car audio systems
• Dedicated midrange driver and PEI dome tweeter for enhanced clarity
• Reinforced cone for improved sound accuracy
• Stamped steel frame for strength and durability
Perfect for door or rear deck installations, the Cerwin-Vega H7653 HED Series 3-Way Coaxial Speakers deliver powerful, full-range sound with legendary Cerwin-Vega performance, making them an excellent upgrade for any vehicle audio system
Specifications
SPEAKER SIZE - 6.5”
SPEAKER TYPE - CO AXIAL
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - POLYPROPYLENE
DIAPHRAGM MATERIAL - MYLAR
BASKET MATERIAL - STAMPED STEEL
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - TREATED FOAM
CROSSOVER INCLUDED - YES - INTERNAL
FREQUENCY RESPONSE (HZ): 50HZ-20KHZ
VOICE COIL DIAMETER - INCH (MM) - 1”
THIELE/SMALL PARAMETERS
SENSITIVTY (1W/1M): 84.5DB
QTS: 70HZ
FREE AIR RESPONSE FS (HZ): 70HZ
VAS - LITER:6.8
XMAX (MM): 2.125
POWER HANDLING RMS: 60W
POWER HANDLING MAX: 340W

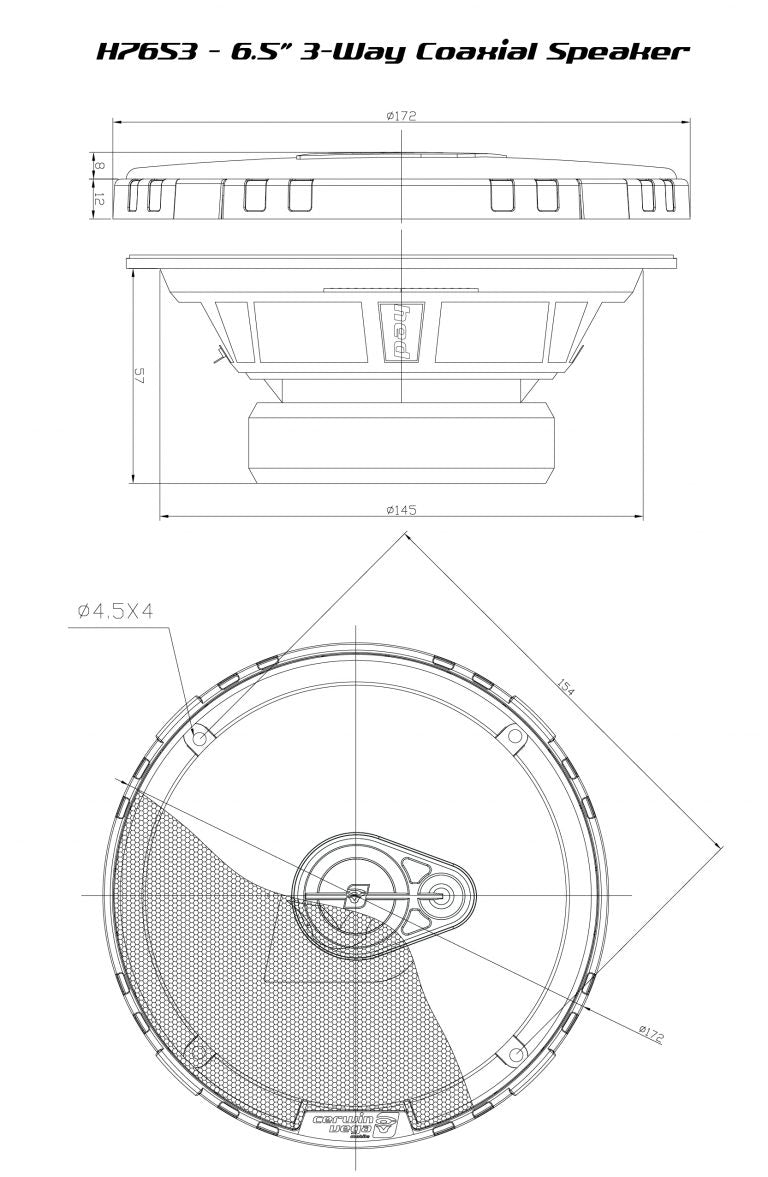

MOUNTING DEPTH: 5.7” (57MM)
MOUNTING DIAMETER : 5.7” (145MM)
Product Manuals

Upgrade Your Sound!
HED Series Speakers by CERWIN-VEGA are the perfect choice for those looking to move beyond factory speakers. With superior audio quality and enhanced performance, transform your listening experience with these exceptional speakers.
Versatility Meets Superior Sound!
The HED Series by CERWIN-VEGA offers a wide range of sizes and exceptional sound quality, making it the perfect solution to enhance your audio experience. Enjoy both loudness and clarity with reliable performance.
What I disliked was, Having to retrofit, took me 11Hrs and 40min. Took my time of course. Anyways, They look great, sound good. It's an old 2014 Chevy Cruze LT. I don't know what the input wattage is,but,what ever it is, factory sucks.
It was a new Experience for me.
They actually sound pretty good to be 6.5.thanks
WAITING ON A MESSAGE BACK FOR A R/A NUMBER TO RETURN
IVE CALLED AND I EMAILED NO RESPONSE VERY POOR CUSTOMER SERVICE

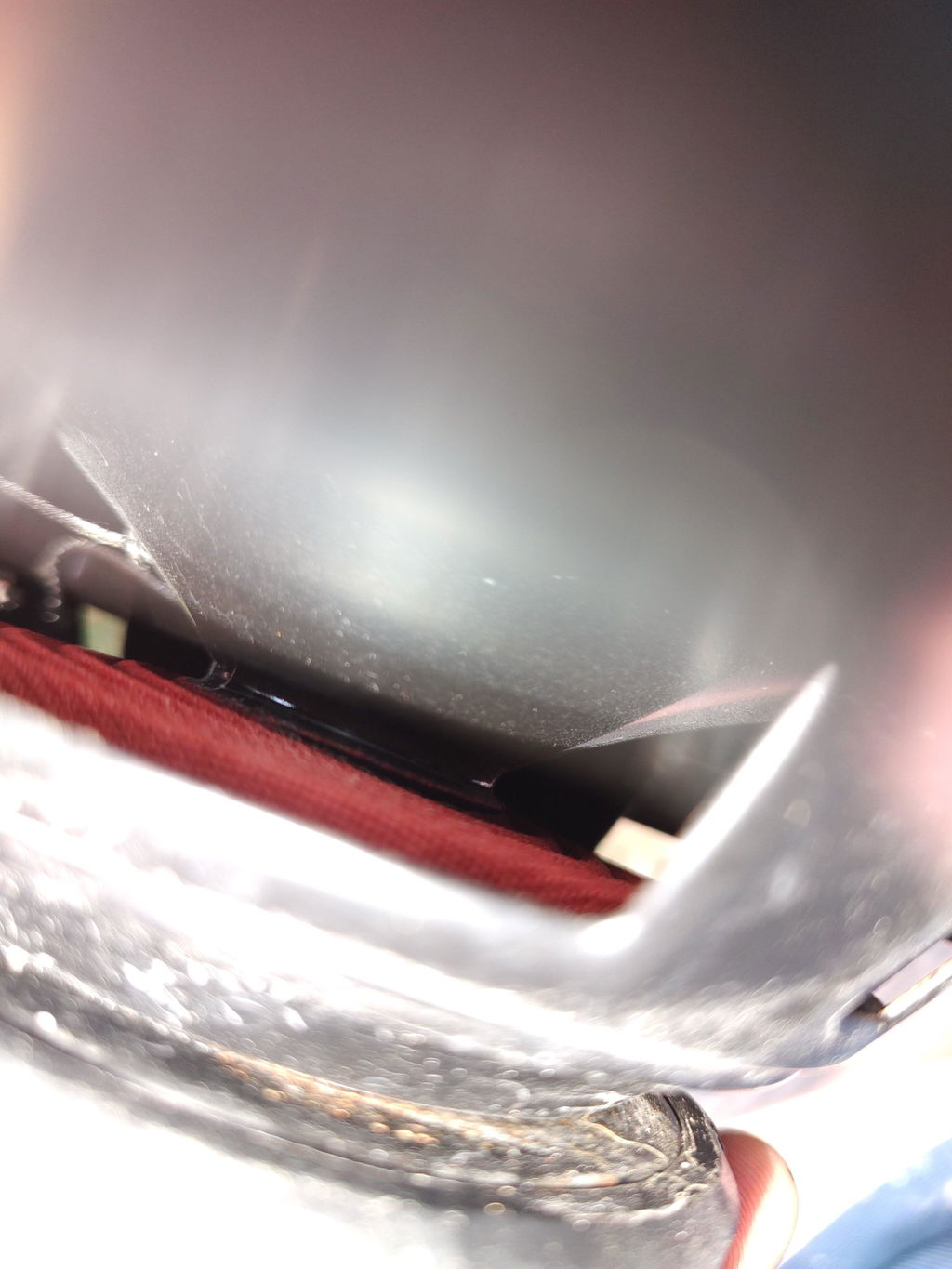

These speakers are absolutely trash. They sound good and they were good at first. But it doesn't take less than a year sometimes over a year later the inner speaker diaphragms become detached and the speakers become trash. This is on a stock radio system. Slowly but surely it isn't been a year and a half I have to change all my speakers in my doors all of the diaphragms are becoming detached from the cones and are buzzing. I've also replaced the first set with the same kind thinking it was just a fluke on the front doors and it's happened again this is the third set that I've had that I have wasted within a year and a half. Do not buy these speakers I repeat do not buy these speakers you will waste all your money and all your time. I have to replace all my speakers all over again. I was going to upgrade my radio and now I can't because now I have to buy speakers all over again. I should have went with kicker interior speakers to begin with I put kicker in my car 10 years ago and they sound absolutely great and nothing has happened to them. Do not buy these speakers!
Absolutely disappointing! When I was a kid through in cerwin Vegas we're absolutely top-notch. This is absolutely not the same quality company and speakers that they live by their name. I will never buy a certain Vega product again and I will never recommend them.
Great speaker for the price
