8" Pro Full-Range Coaxial Horn Speaker
SKU:PH84
Couldn't load pickup availability
Overview

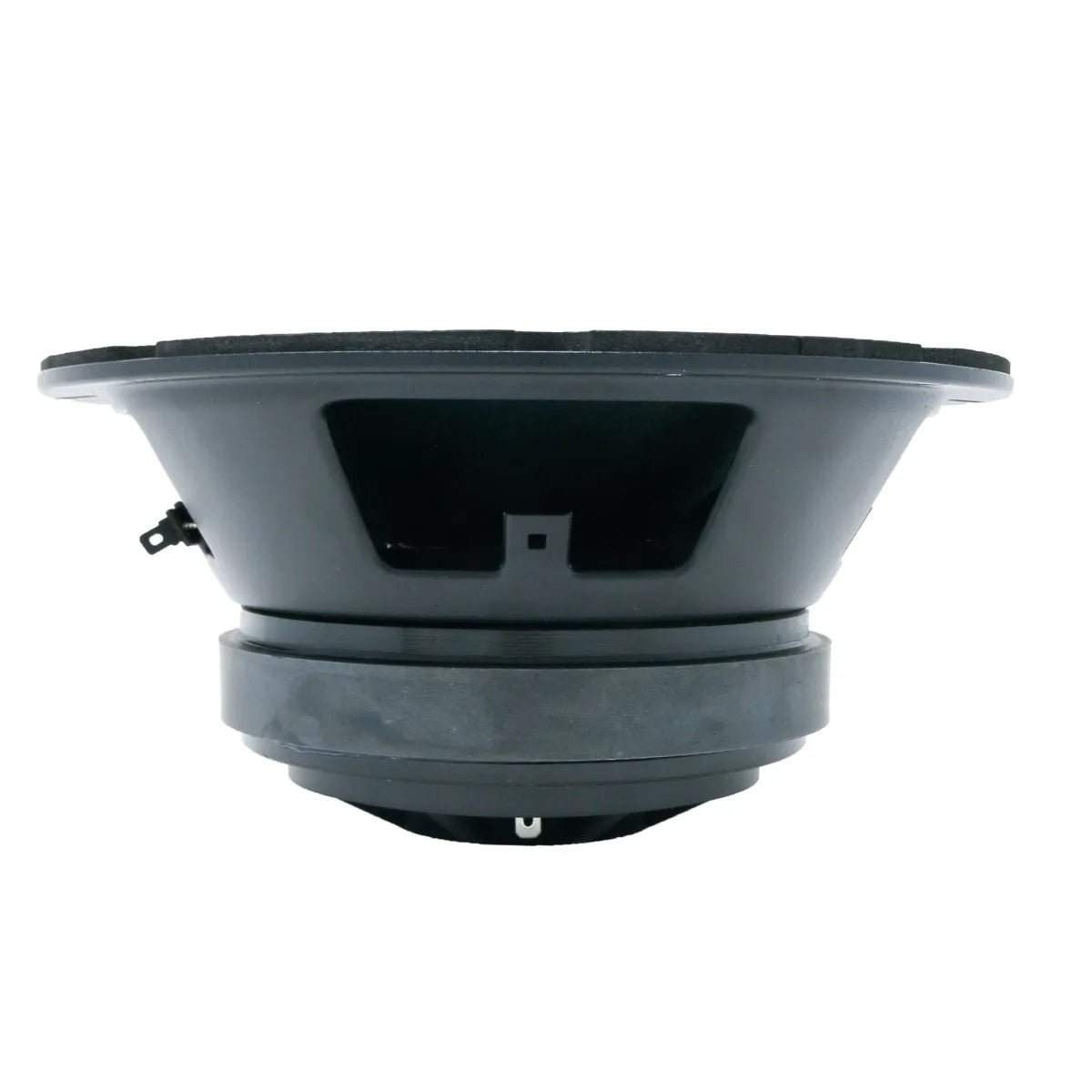

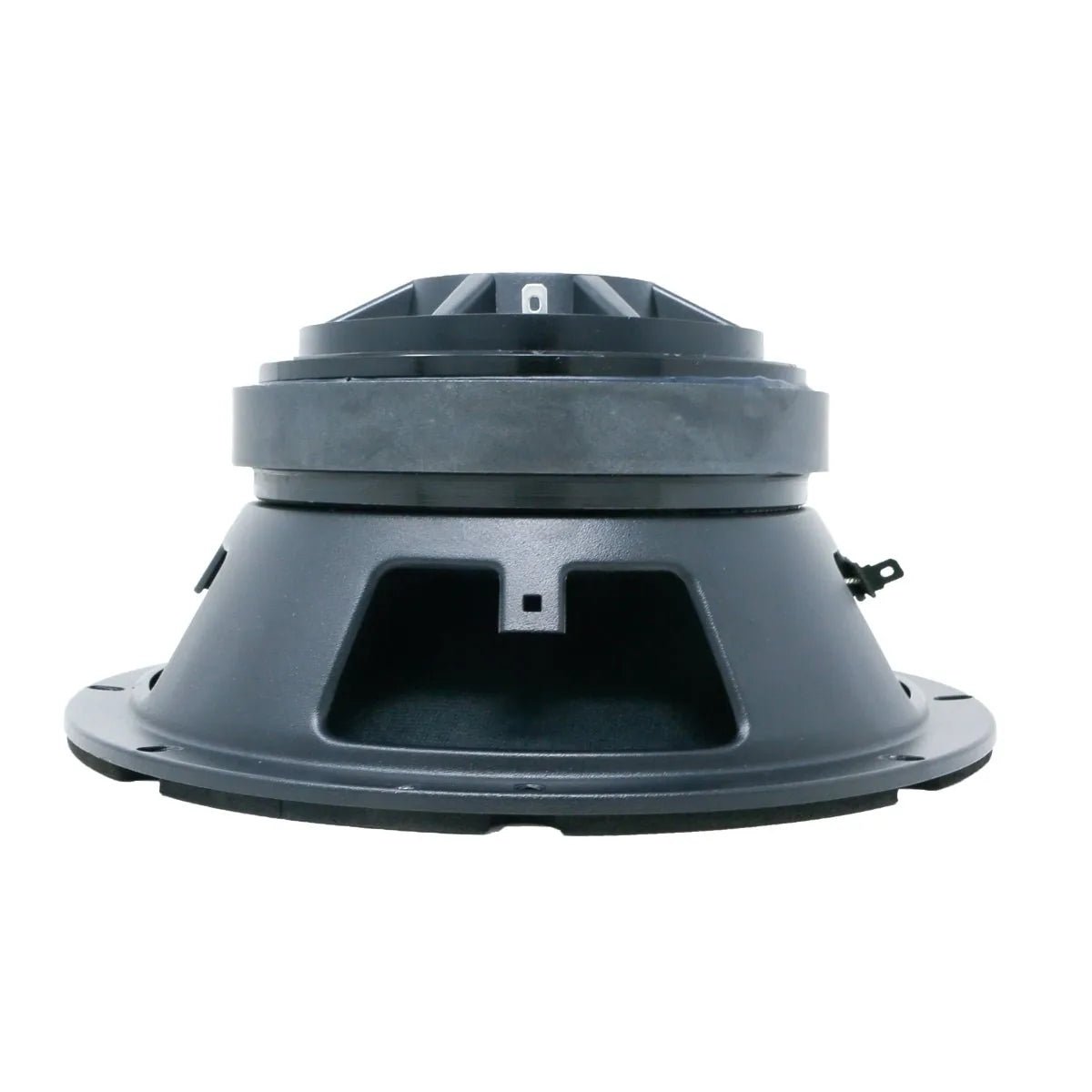

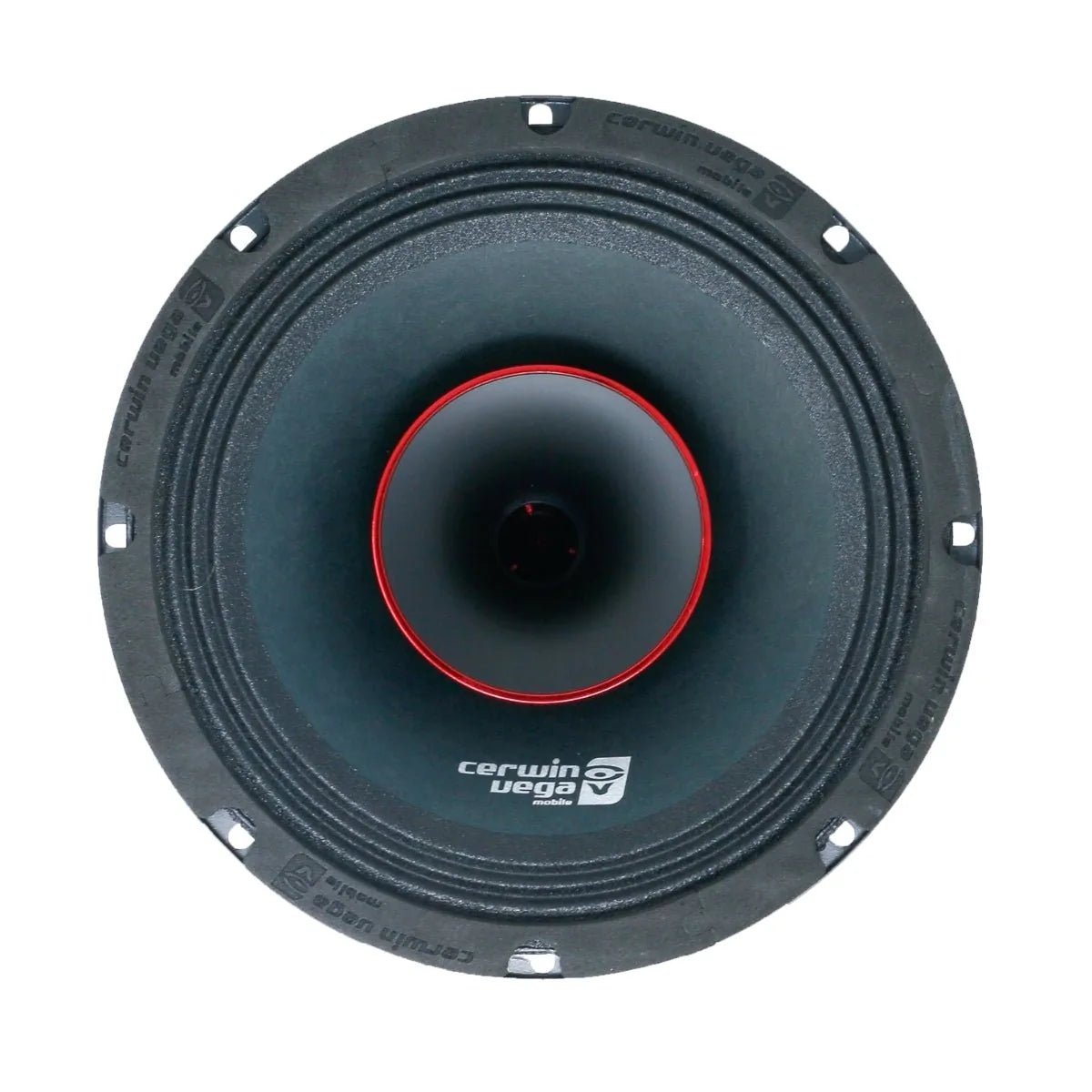

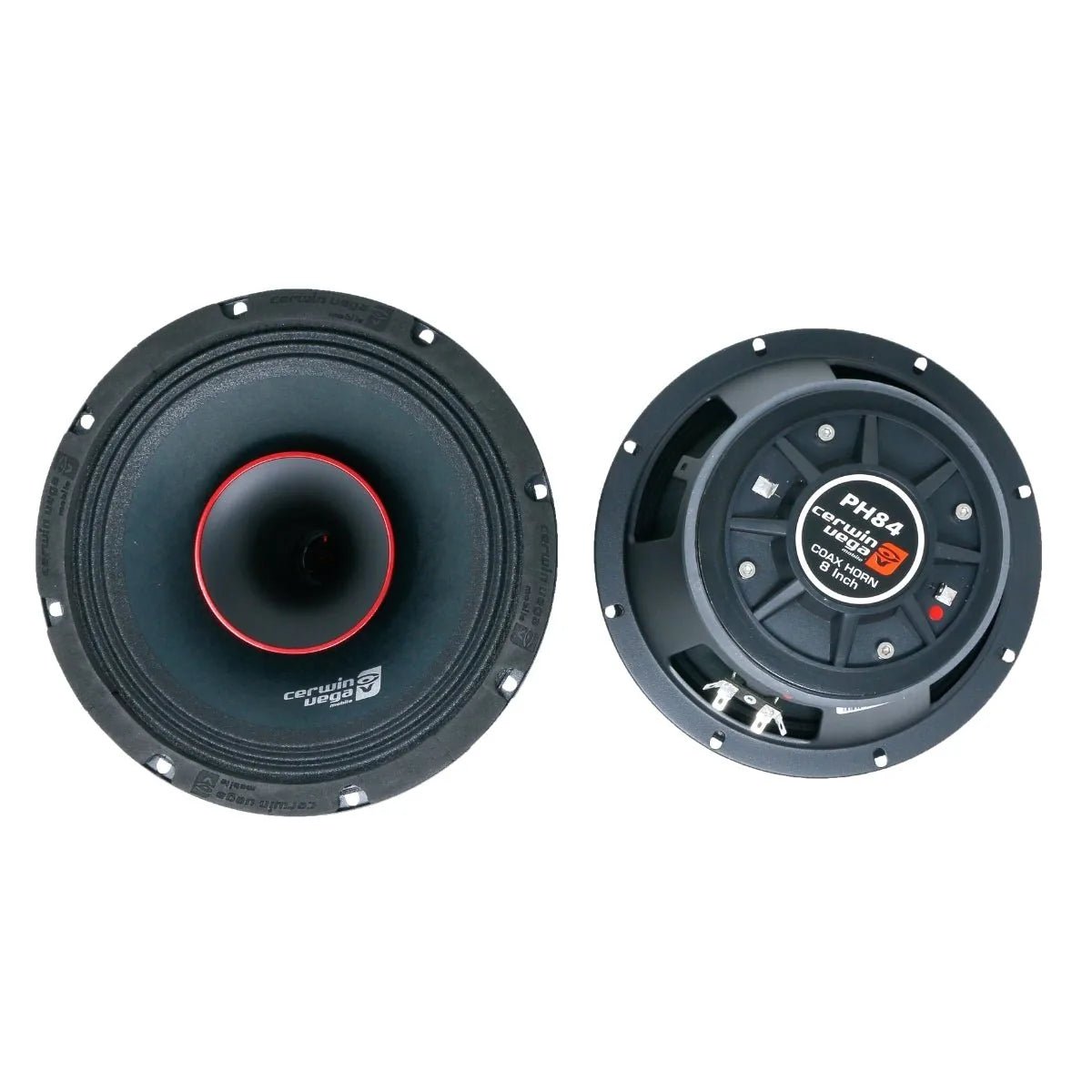

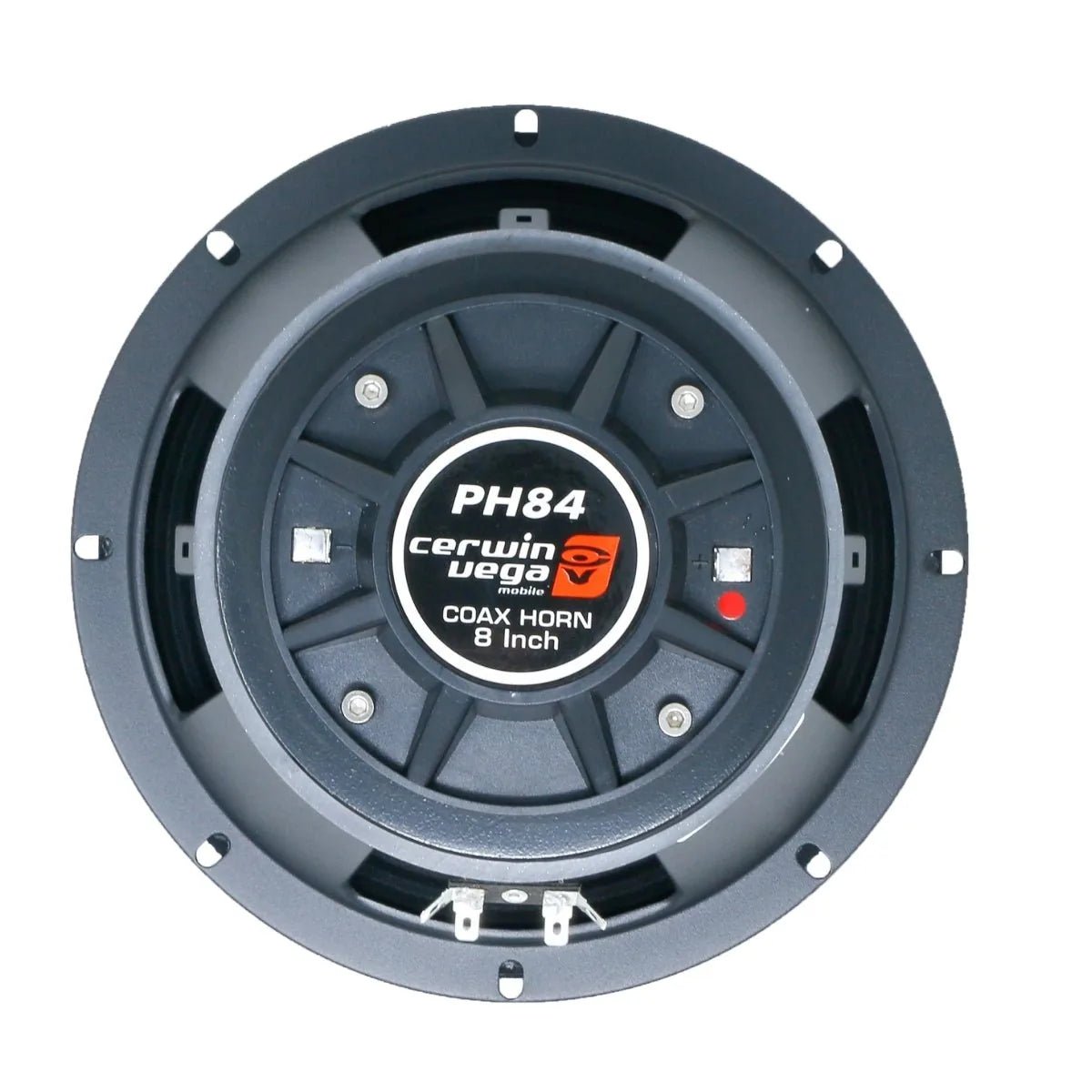

PH84 - 8" PRO Full-Range Coaxial Horn Speaker
Description:
PRO SERIES MIDRANGE SPEAKERS borrow from the heritage of CERWIN-VEGA’S PRO AUDIO legacy by reproducing insane SPL levels that will tingle all your senses. Create your own listening experience and concert environment with an assortment of high output PRO SERIES SPEAKERS and TWEETERS that CERWIN-VEGA MOBILE has to offer.
Specifications
8” PRO Full-Range Co-Ax Horn Speaker
180W RMS/360W MAX Power Handling
Ferrite Strontium High Temp Magnet Structure
Heavy Duty Stamped Steel Basket
Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
2.0” Double Layer High Temp Voice Coil with Black Coated Voice Coil Former for Woofer
1.0” Single Layer High Temp Voice Coil with Voice Coil Former for Tweeter
Frequency Response: 80Hz -18Khz
High Sensitivity 103dB 1W/1M
12dB 2nd Order Filter Crossover for Better Protection of the Tweeter

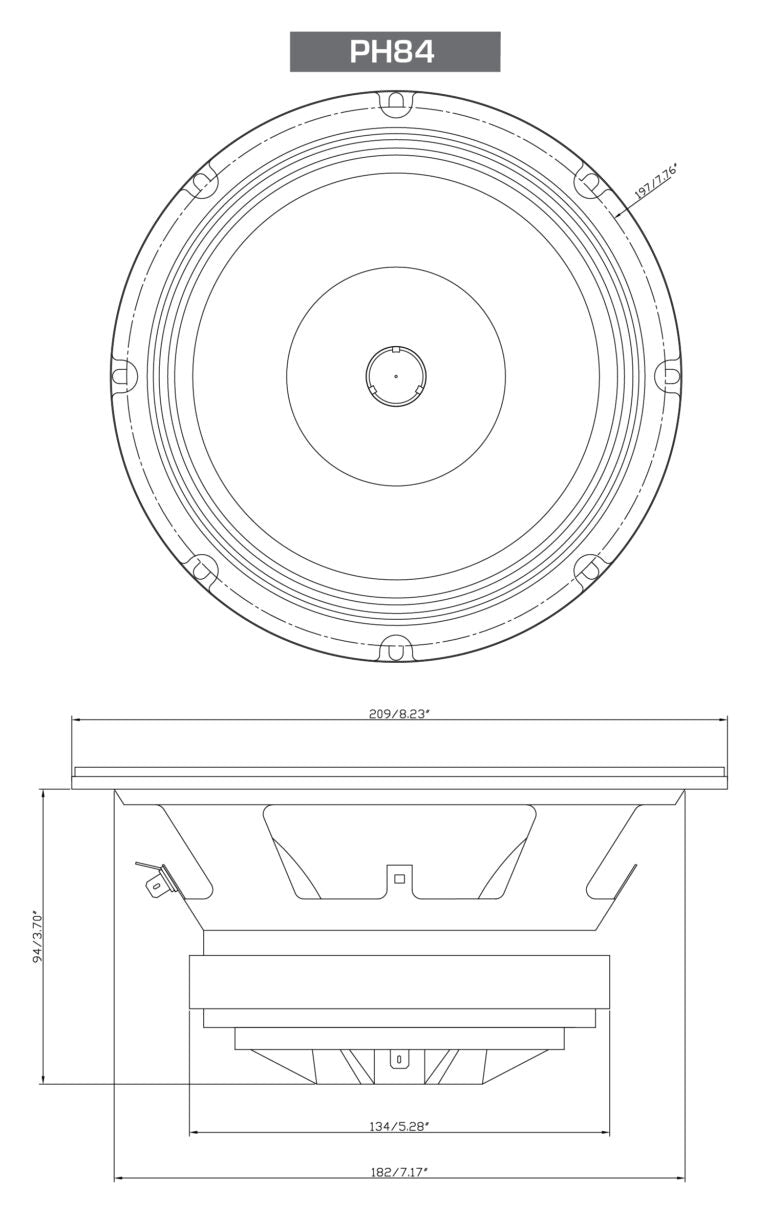

Mounting Depth: 3.70” / 94mm
Mounting diameter: 7.17” / 182mm
Product Manuals
