2 Ohm Class D Stable Monoblock Amplifier

Stealth Bomber 500W RMS Full Range Mono Digital Amplifier

Test Product

Test Product

Stealth Bomber 500W RMS Full Range Mono Digital Amplifier

Cerwin Vega's Stealth Bomber amplifiers are compact, produce big power and will fit in almost anywhere in your car. This Micro Monoblock amp will pump up the bass in your audio system with up to 500 watts RMS. A low-pass filter, subsonic filter, bass boost, and wired remote let you sculpt the bass tones to perfection, even from the front seat.

$259.99
Availability: In stock
SKU
B51

Notify me when this product is in stock:

B51- Stealth Bomber 500W Full Range Mono Digital Amplifier

Description:

Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with DirectFET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.

Features:

  • 1 Channel MonoBlock Digital Amplifier
  • 500W x 1CH @ 1Ω / 300W x 1CH @ 2Ω / 175W x 1CH @ 4Ω RMS Power Output
  • Input Sensitivity: 0.2-10 Volt
  • Crossover Filter : 40-400Hz (LPF), 24dB Per Octave Slope
  • Frequency Response: 10-500Hz
  • Selectable REM / VOX / DC Turn On Modes

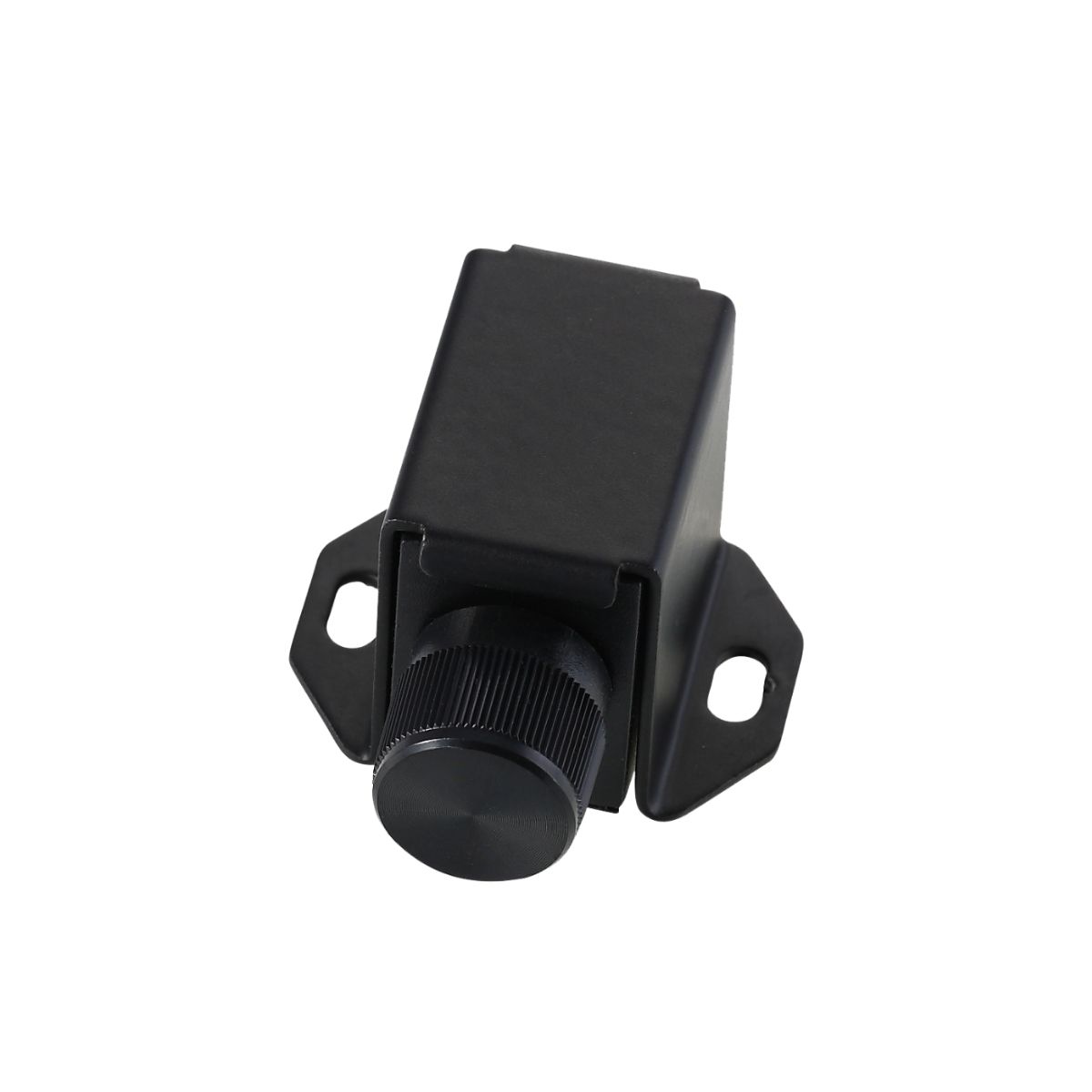

  • Remote Bass Knob Included
  • Disconnected RCA Input Harness Kit Included
  • Monoblock Bomber Series Class D Amplifier
  • UCHD aluminum alloy chassis
  • Full Range Class D IR Chipset
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Variable 12dB crossover
  • Premium 4 gauge power connections
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dimensions: 7.7” x 4.0” x 1.4” (195.6 x 102 x 36 mm)
More Information
Amplifier1 Channel
Description500W Full Range Mono Digital Amplifier
MAX Power Rating1000W
RMS Power (1Ω)500W
RMS Power(2Ω)300 W
RMS Power (4Ω)175 W
TypesMonoblock
TopologyClass D
Power SupplyFull PWM
Power Supply (Threshold)10.0VDC-17.0VDC
Idle Current(0.7A)
Distortion - THD (1KHz@4Ω)0.5%
Distortion - S/N Ratio (A weight @ 1W)-85dBA
Distortion - S/N Ratio (A weight @ FP)-101.1dBA
Input Sensitivity Low200mV – 10.0V
Input Sensitivity High200mV – 10.0V
Input Impedance - Low Input Level20 kΩ
Input Impedance - AUX Input Level20 kΩ
Output Impedance0.011 Ω
Damping Factor (50Hz@4Ω)>250
Bandwidth (-3dB)10Hz-350Hz
Crossover (-12 dB/ Oct) Variable High-PassN/A
Crossover (-12 dB/ Oct) Variable Low-Pass40Hz-400Hz
Crossover (-12 dB/ Oct) Variable Sub-Sonic10Hz-55Hz
FUSE Ratings - ATC25A
RemoteIncluded
Dimension - Length x Width x Height - Inches(mm)7.7” x 4.0” x 1.4” (195.6 x 102 x 36 mm)
